H-Tronic TS 2125 Multifunction thermostat -55 - 125 °C

Seven functions in one device
The new 2-channel temperature switch TS2125 combines a total of seven functions in one device and is safe, clear and easy to use. The multi-talent can be used independently, but can also be used as a replacement for faulty mechanical thermostats or for digital thermometer.
With four potential-free relay equipped TS2125 is suitable for all areas of application in which a temperature control and temperature control in heating or cooling operation is required. 7 operating modes (some with comfortable alarm function) the device is characterized by: Thermometer and thermo-switch for channel 1 and channel 1 and 2, temperature differential controller, Circulation pumps control and, of course, to manual operation.

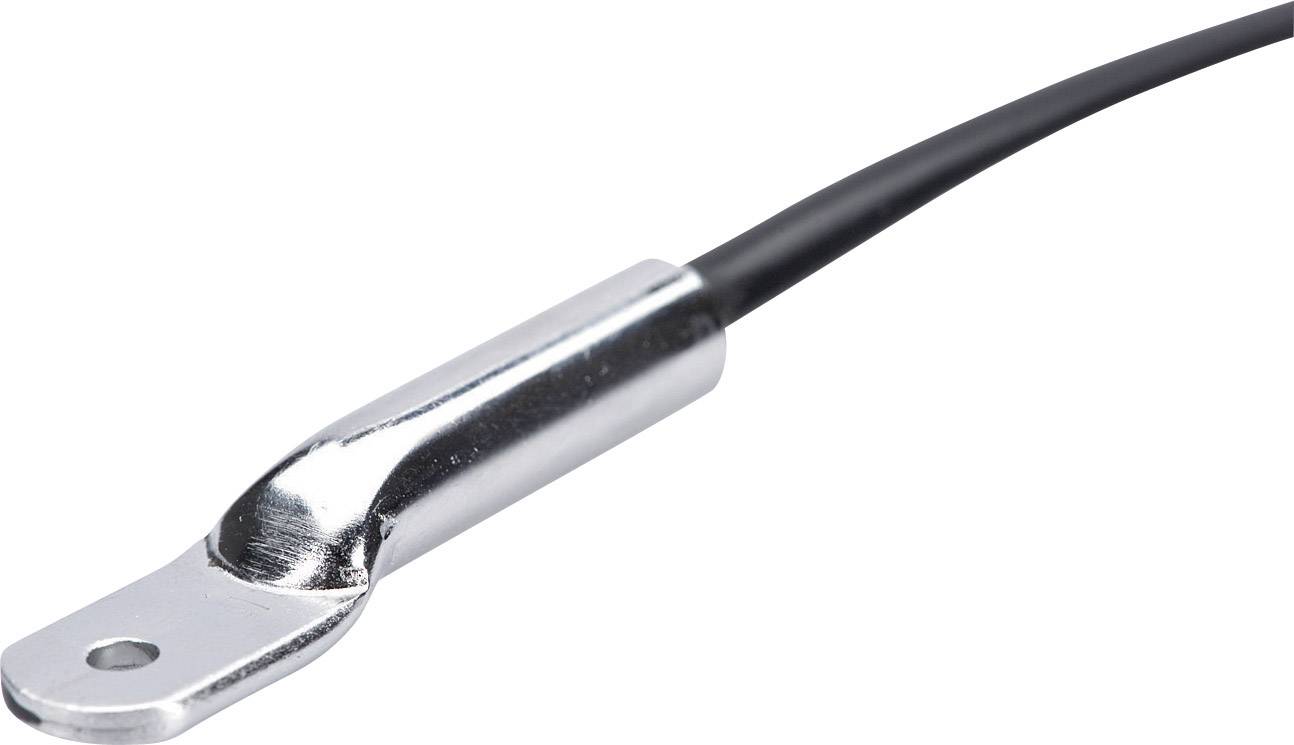

The package contains and with a mounting bracket with temperature sensor made of metal detected reliably measuring ranges from -55 to +125,0°C with a resolution of 0.1 °C and in the core area of +/- 2°C in the border areas - both outdoors, on surfaces as well as in non-aggressive gases. The 2 m long, pluggable connection cable can optionally be extended to 50 m.
The device satisfies not only by functionality and accuracy, but is also safe to use: Sensor short circuit and sensor circuit are recognized immediately. In addition, the TS2125 via a separate min./max. alarm setting, you can find the temperature is outside of the set window, after an adjustable delay time of 0 to 8 hours per channel a relay, for example, an alarm message can be switched. An internal, if necessary, but also can be cut-off alarm beeper are depending on the setting (sensor failure) a warning signal.
The switch-on and switch-off temperature, the current temperature, the setting parameters and the min/max value shows the two-line, blue display in a clear way. Leds indicate relay on, alarm and sensor failure.
All operating parameters as well as the hysteresis can be set freely.

This text is machine translated.
