Finder 1TT182300000 1T.T1 Indoor thermostat Flush mount 24h mode 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 34.45 / piece)
€ 34.45
plus VAT.
14-day return policy included
Highlights & Details

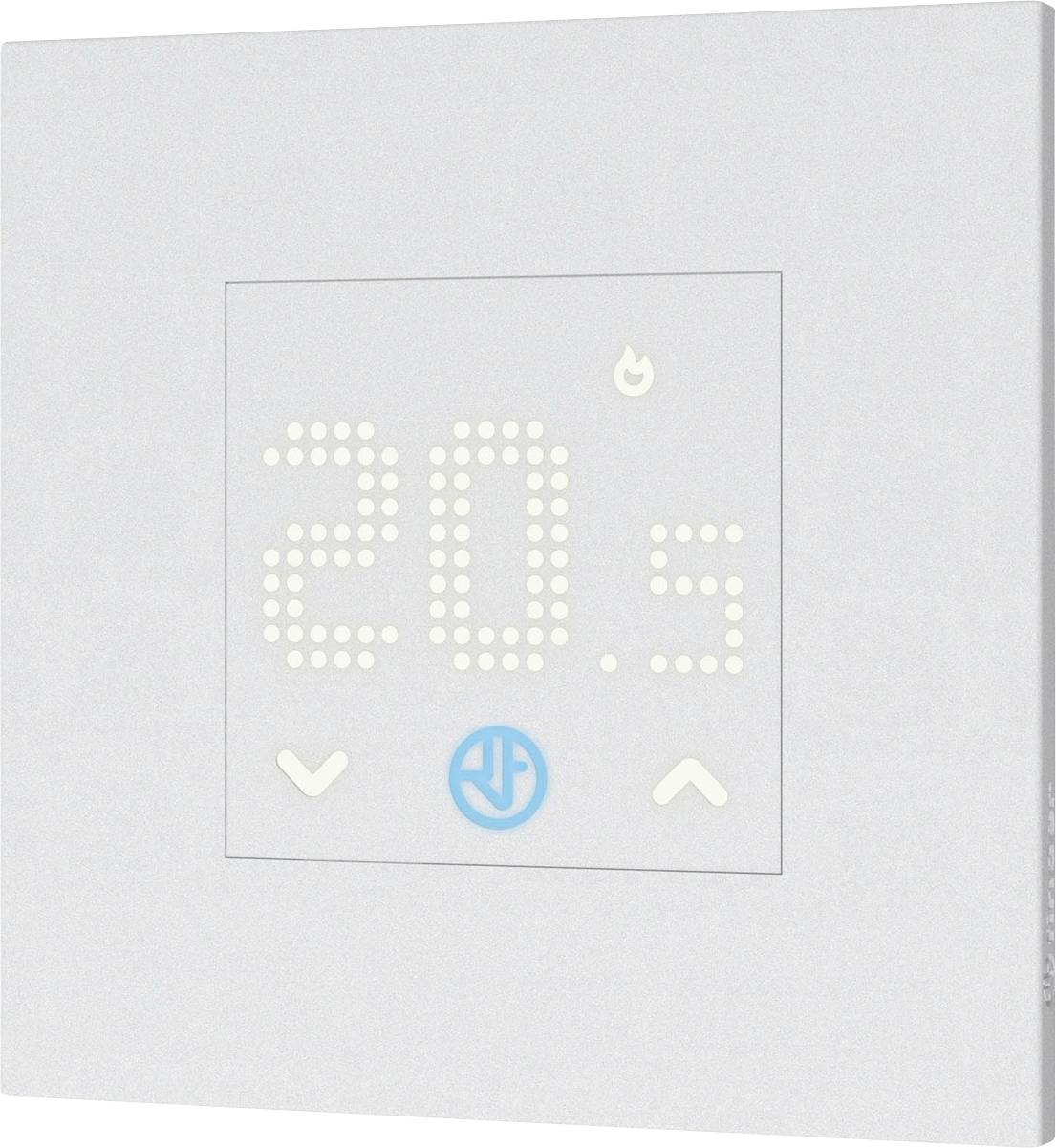

Flush-mounted room thermostat Finder 1T.T1
- Temperature range 0...+38 °C
- Switch panel and frame matched to each other in flat design
- Flush-mounted mounting for 65 mm round box or connector box for 2 or 3 device inserts
- Simple and versatile
- LED matrix touch display
- Summer/winter function
- Display lock via PIN code
- Display with adjustable brightness
- Day/night function
Technical specifications
- Display lock via PIN code
- Display with adjustable brightness
- Product type
Indoor thermostat
- Operation type
electronical
- Switching cycle
24h mode
- Max. temperature setting
38 °C
- Temperature settings
0 up to 38 °C
- Display
Yes
- Remote sensor
Optional
- Mounting type
Flush mount
- Operating voltage
230 V AC
- Nighttime drop
Yes
- Factory colour
White
- Width
32.9 cm
- Height
50 mm
- Length
51.4 mm
IP20 (wall-mount)
- Dim
(L x W x H) 51.4 mm x 32.9 cm x 50 mm
- Weight
0.1410
- Contact type
1 change-over
- Min. temperature setting
0 °C
- Features
w/o Bluetooth
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3414383 Finder 1TT182300000 1T.T1 Indoor thermostat Flush mount 24h mode 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3414383 Finder 1TT182300000 1T.T1 Indoor thermostat Flush mount 24h mode 1 pc(s)
Description
The innovative flush-mounted room thermostat in a flat design has a changeover contact 5 A/250 V AC as switch contact. The illuminated LED matrix display with adjustable brightness ensures good operability and readability. With day/night function, summer/winter function and display lock. The temperature setting range is from 0 to 38°C. External connection terminals: NTC-sensor (10 kΩ) or potential-free contact. The voltage supply is a mains voltage wide-range input 110 to 230 V AC.
This text is machine translated.
This text is machine translated.
