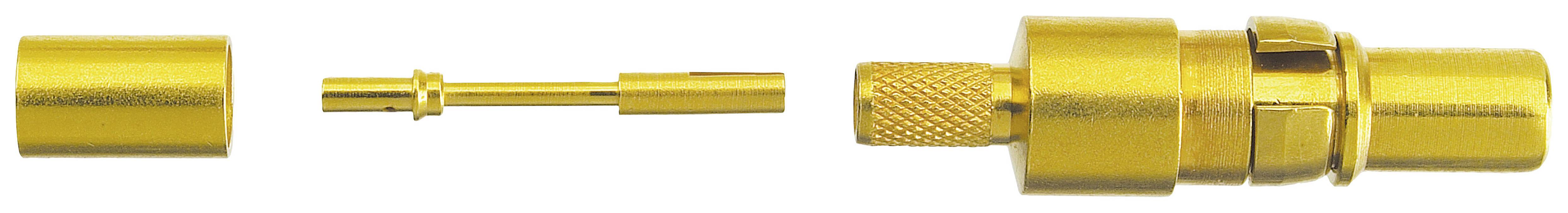

Golden metal plug in three parts: housing, centre pin, and connecting piece.

Golden metal plug in three parts: housing, centre pin, and connecting piece.

Packaging type

Piece

Product type

Coaxial connector

Contact material

Copper alloy

Content

1 pc(s)

Connection

Soldering

Crimp

HARTING

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Total (€ 13.44 / piece)

€ 14.28

-6 %

€ 13.44

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Gender: Pen
Net weight: 3.23 g
Insertion force: ≤ 7 N.
Pulling force: ≤ 7 N.
Material locking: Copper alloy
Requirement level: 1, NM 30 (S4)
Resistance: ≤ 10 mΩ
Test voltage 0.75 kV, 50 Hz

Packaging type: Piece

Product type: Coaxial connector

Contact material: Copper alloy

Content: 1 pc(s)

Connection: Soldering
Crimp

Mating cycles: ≥ 500

Manufacturer part #: 09692815143

Impedance: 50 Ω

Contact type: Machined contacts

Contact surface: Gold plated

RoHS-compliant: Yes

Type: 09692815143

UKCA: yes
