Hebotec HSK-RKS-Z 8 - 11 G6² Fastener Rivets 1016-124C Bundle Ø range 8 up to 11 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Fastener
Fastening method
Rivets
Bundle diameter (min.)
8 mm
Bundle Ø (max.)
11 mm
Material
Spring steel
Datasheet (PDF)
Number
Total (€ 3.61 / piece)
€ 3.61
plus VAT.
Highlights & Details
Hebotec 1016-124C screen clamp
- Fastener
- Rivets
- Bundle Ø range 8 up to 11 mm
Technical specifications
- Component 1: Shield clamp
- Length: 38.5 mm.
- Width 12.9 mm
- Height: 26.1 mm
- Material 1: Galvanized spring steel
- Min 8 mm shield diameter
- Max. Diameter 11 mm
- Product type
Fastener
- Fastening method
Rivets
- Bundle Ø range
8 up to 11 mm
- Bundle diameter (min.)
8 mm
- Bundle Ø (max.)
11 mm
- Material
Spring steel
- Content
1 pc(s)
- Manufacturer part #
1016-124C
- Width
12.9 mm
- Height
26.1 mm
- Length
38.5 mm
- Type
HSK-RKS-Z 8 - 11 G6²
- Type A
Crimping
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3411232 Hebotec HSK-RKS-Z 8 - 11 G6² Fastener Rivets 1016-124C Bundle Ø range 8 up to 11 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3411232 Hebotec HSK-RKS-Z 8 - 11 G6² Fastener Rivets 1016-124C Bundle Ø range 8 up to 11 mm 1 pc(s)
Description

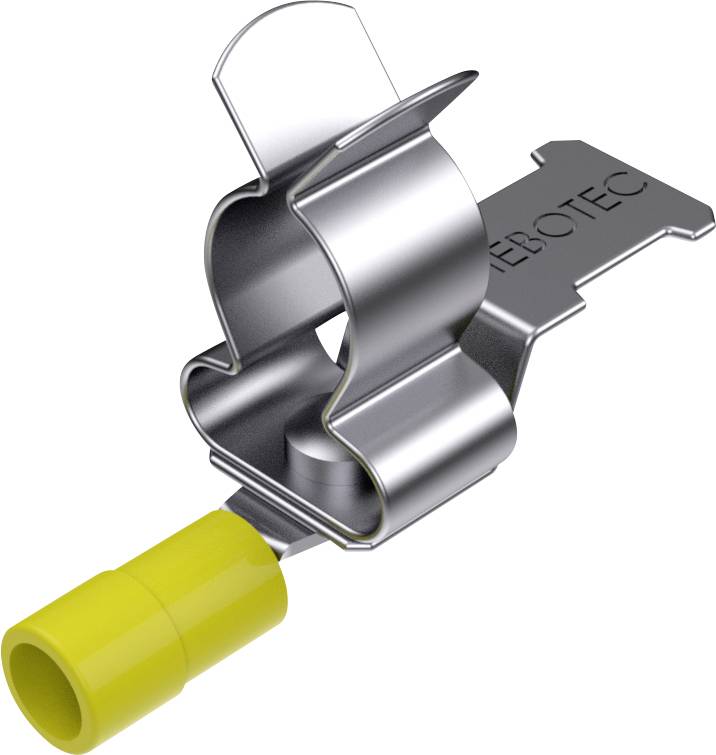

Shield bracket 8 - 11mm with strain relief, riveted to ring terminal, yellow PA insulation, UL listed, for conductor cross-sections 4.0 - 6.0mm²
