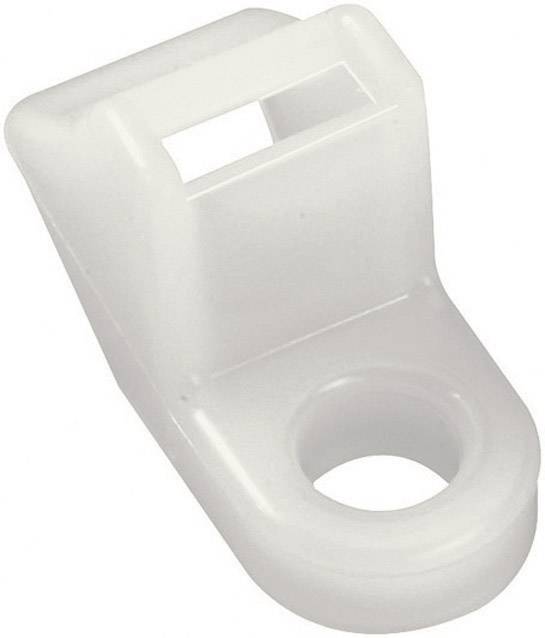

White plastic component with a rectangular opening at the top and a circular hole at the bottom, potentially a mounting or fixing element for mechanical applications.

White plastic component with a rectangular opening at the top and a circular hole at the bottom, potentially a mounting or fixing element for mechanical applications.

Technical drawing of a hose clamp with dimensions G, B, H, H2, L. Shows attachment to multiple pipes.

1/2

Product type

Cable mount

Fastening method

Screw fixing

Material

Polyamide 6.6

Features

Bundle runs lateral to mount

Max. cable tie width

8 mm

Datasheet (PDF)

HellermannTyton

Fast track dispatch on Wed 14 Oct

2588 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 7

Total (€ 0.32 / piece)

€ 2.24

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

HellermannTyton CL8-N66-NA-C1 Cable mount Screw fixing 151-02258 Ecru 1 pc(s)

Ecru
Cable mount
Screw fixing

Our service for you

Technical specifications

Flame-retardant properties: in accordance with UL94 V2

Product type: Cable mount

Features: Bundle runs lateral to mount

Max. cable tie width: 8 mm

Fastening method: Screw fixing

Material: Polyamide 6.6

Min. temperature: -40 °C

Max. temperature: +85 °C

Mounting Ø (min.): 6.50 mm

Mounting Ø (max.): 6.50 mm

Factory colour: Ecru

Halogen-free: Yes

Content: 1 pc(s)

Manufacturer part #: 151-02258

Dimensions: (L x B x H x H2) 27,3 x 12,5 x 16 x 5 mm

RoHS-compliant: Yes

Type: CL8-N66-NA-C1

Material (details): Polyamide 6.6 (PA66)

Operating temperature: -40 - +85 ºC, short-term +105 °C (500 h)

Documents & Downloads

Datasheet

Datasheet 541681 HellermannTyton CL8-N66-NA-C1 Cable mount Screw fixing 151-02258 Ecru 1 pc(s)

User & Safety Instructions

User & Safety Instructions 541681 HellermannTyton CL8-N66-NA-C1 Cable mount Screw fixing 151-02258 Ecru 1 pc(s)

Description

Screw-mounted securing eyes are used if the bundle is to be fixed in a lateral position to the hole. FH mounting eyelets are characterised by their compact form. The CL8 bases are especially suitable for large width cable ties and offer secure fastening even for larger bundle diameters.

Hints

Applications: Due to the lateral routing of the cable and wire bundle, this base is ideal for installation in confined spaces, especially for fastening in corners and on edges, since the hole can be offset by a few millimetres. In addition to switch cabinet construction, this base is also used for cable assemblies. The eyelets can be easily retrofitted for this application.

Description

Screw-mounted securing eyes are used if the bundle is to be fixed in a lateral position to the hole. FH mounting eyelets are characterised by their compact form. The CL8 bases are especially suitable for large width cable ties and offer secure fastening even for larger bundle diameters.

Hints

Applications: Due to the lateral routing of the cable and wire bundle, this base is ideal for installation in confined spaces, especially for fastening in corners and on edges, since the hole can be offset by a few millimetres. In addition to switch cabinet construction, this base is also used for cable assemblies. The eyelets can be easily retrofitted for this application.
