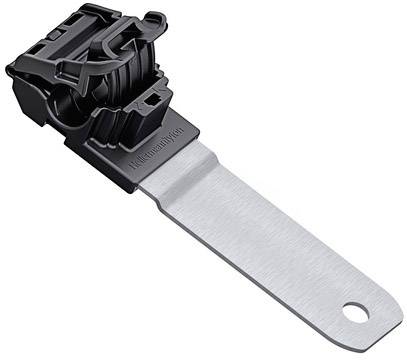

Image similar
Image similar
HellermannTyton RCA90SM6-PA66HIRHSUV/ST/ZN-BK Fastener Screw fixing 151-01643 Bundle Ø range 6.20 up to 13.70 mm impact-
EAN:
Part number:
Item no:
Product type
Fastener
Fastening method
Screw fixing
Bundle diameter (min.)
6.20 mm
Bundle Ø (max.)
13.70 mm
Material
Polyamide
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.18
10
7% = € 0.23
€ 2.95
25
10% = € 0.33
€ 2.85
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.18 / piece)
€ 3.18
plus VAT.
Highlights & Details
Mounting element 101.9x34.9 mm, bundle diameter 6.2-13.7 mm, M6, black
- Fastener
- Screw fixing
- Bundle Ø range 6.20 up to 13.70 mm
Our service for you
Technical specifications
- Product type
Fastener
- Features
impact-resistant
heat-stabilised
UV-proof
+ teeth and pawl lock
- Fastening method
Screw fixing
- Bundle Ø range
6.20 up to 13.70 mm
- Bundle diameter (min.)
6.20 mm
- Bundle Ø (max.)
13.70 mm
- Material
Polyamide
- Content
1 pc(s)
- Manufacturer part #
151-01643
- RoHS-compliant
Yes
- Type
RCA90SM6-PA66HIRHSUV/ST/ZN-BK
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1995885 HellermannTyton RCA90SM6-PA66HIRHSUV/ST/ZN-BK Fastener Screw fixing 151-01643 Bundle Ø range 6.20 up to 13.70 mm impact-
User & Safety Instructions
User & Safety Instructions 1995885 HellermannTyton RCA90SM6-PA66HIRHSUV/ST/ZN-BK Fastener Screw fixing 151-01643 Bundle Ø range 6.20 up to 13.70 mm impact-
Description
One-piece ratchet closure for convenient installation during pre- and final assembly. Wide range of diameters and designs reduces stock levels. The clamp chuck guides and centers the bundle, avoiding crushing. Easily re-opened using a screwdriver, adjustments and maintenance are carried out quickly. Integrated steel mounting plate for high torque, chemical and salt spray resistant. For delicate bundles, soft material inserts are available. Optionally available tightening aid for defined contact pressure when using a hand tool (EVO series) the product family of the Ratchet P-Clamp offers a high flexibility when guiding and fixing cables, pipes or lines. Their robust design and robust materials make them ideal for heavy duty indoor and outdoor applications. The one-piece mounting clamp is manually closed to the desired diameter. With the release function, the bundle can be removed easily and non-destructively with a simple slotted screwdriver. The clip can be reused without changing the position
