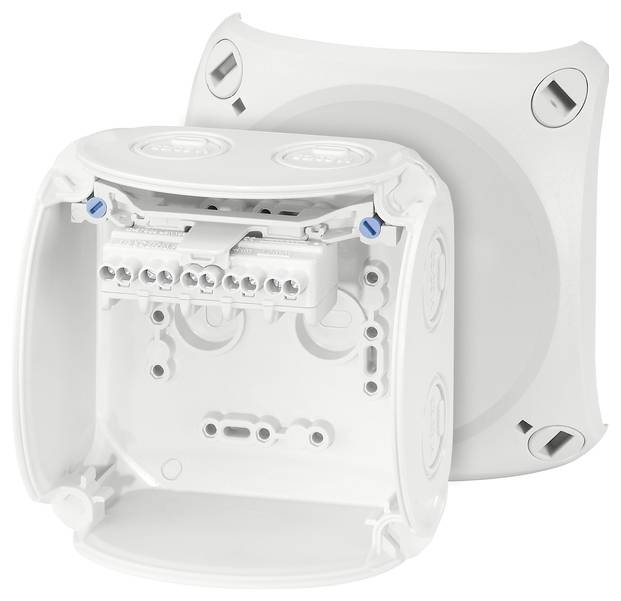

Hensel 62000047 Junction box (L x W x H) 70 x 104 x 104 mm Grey-white (RAL 7035) IP66, IP67, IP69 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Only 4 Piece(s) available
Highlights & Details
Hensel cable junction box KF 0402 G 1.5-2.5mm
- Terminal with 2 clamping points per pin
- "Offshore Applications"
- Lid without accessories sealable
Technical specifications
- Product type
Junction box
- Factory colour
Grey-white (RAL 7035)
IP66
IP67
IP69
- Dim
(L x W x H) 70 x 104 x 104 mm
- Content
1 pc(s)
- Material
PC
- Width
104 mm
- Height
104 mm
- Length
70 mm
Documents & Downloads
Datasheet
Datasheet 1826981 Hensel 62000047 Junction box (L x W x H) 70 x 104 x 104 mm Grey-white (RAL 7035) IP66, IP67, IP69 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1826981 Hensel 62000047 Junction box (L x W x H) 70 x 104 x 104 mm Grey-white (RAL 7035) IP66, IP67, IP69 1 pc(s)
Description
"Weatherproof", for the unprotected installation outdoors
This text is machine translated.
This text is machine translated.
Features
- Terminal with 2 clamping points per pin
- 5-pin for each pin, 8 x 0.75 mm² f, 6 x 1.5 mm² sol/f, 4 x 2.5 mm² sol/F, 2x 4 mm² sol/F
- Cable entries via imprints, AKM order separately (see cable entry systems LES)
- "Weatherproof "resistant to weather influences (UV-exposure to sunlight, protection against rain water, temperature-resistant, impact-resistant, etc.)
- Corrosion-resistant
- "Offshore Applications"
- Lid without accessories sealable
- Cover holding band and outdoor brackets for wall mounting included
- Color: gray, RAL 7035
- Rated insulation voltage Ui=690 V a c/d.c.
- Rated current 20 A
- Material: PC (polycarbonate) with GFS
- Protection class IP66/IP67/IP69
- IP67, temporary submersion under water up to 1 meters, maximum 15 minutes
- IP69, water pressure up to 100 bar, Water temperature max. 80 °C
- Distance ≥ 0.15 m
