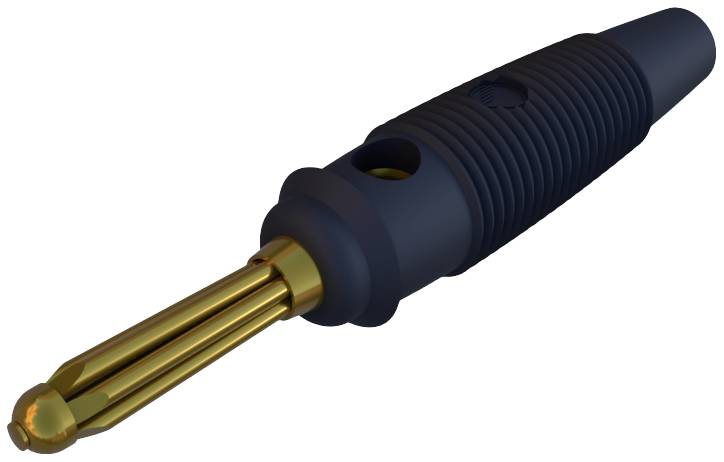

Hirschmann Test & Measurement BUELA 30 K AU Banana plug Plug, straight Pin diameter: 4 mm Black 1 pc(s)
EAN:
Part number:
Item no:
Product type
Banana plug
Connector type
Plug, straight
Pin Ø
4 mm
Connection
Soldering
Nominal current
30 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.51
10
7% = € 0.18
€ 2.33
25
10% = € 0.26
€ 2.25
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.51 / piece)
€ 3.10
-19 %
€ 2.51
plus VAT.
Highlights & Details
Bunch plug with soldered connection
- 4 mm
Our service for you
Technical specifications
- Product type
Banana plug
- Connector type
Plug, straight
- Pin Ø
4 mm
- Nominal current
30 A
- Nominal current - rounded value
30 A
- Cross section (flexible) (max.)
2.5 mm²
- Connection
Soldering
- Factory colour
Black
- Insulation type
Partially insulated
- Manufacturer part #
930727700
- Type
BUELA 30 K AU
- Dim
(Ø) 4 mm
- Content
1 pc(s)
- Insulation material
PVC
- Contact material
Brass, nickel and gold plated
- (Ø)
4 mm
- RoHS-compliant
Yes
- Temperature range
-25 - +70 °C
- Resistance
3 MΩ
- Nominal current (details)
16 A
- Connection
Solder connection
- Cable diameter
1.5 mm²
Documents & Downloads
Datasheet
Datasheet 1396403 Hirschmann Test & Measurement BUELA 30 K AU Banana plug Plug, straight Pin diameter: 4 mm Black 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1396403 Hirschmann Test & Measurement BUELA 30 K AU Banana plug Plug, straight Pin diameter: 4 mm Black 1 pc(s)
Description
For 4 mm sockets, with flexible crush-proof sleeve (soft PVC) and cross-hole, screw terminal connection, accidental contact protection.
Features
- 4 mm sockets
- With flexible crush-proof sleeve (soft PVC) and cross-hole
- Screw terminal connection
- Accidental contact protection.
