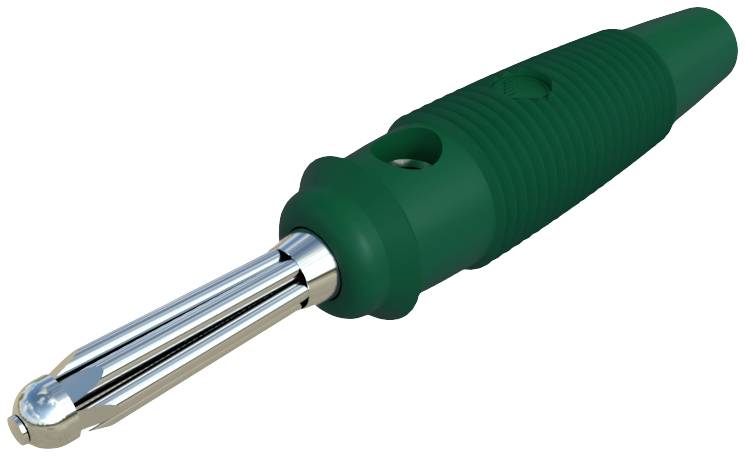

Hirschmann Test & Measurement BUELA 20 K Banana plug Plug, straight Pin diameter: 4 mm Green 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Banana plug
Connector type
Plug, straight
Pin Ø
4 mm
Connection
Screws
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.50
10
7% = € 0.11
€ 1.39
25
11% = € 0.16
€ 1.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.50 / piece)
€ 2.34
-36 %
€ 1.50
plus VAT.
Highlights & Details
Hirschmann Test & Measurement BUELA 20 K Banana plug Plug, straight Pin diameter: 4 mm Green 1 pc(s) Piece
- 4 mm
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Banana plug
- Connector type
Plug, straight
- Pin Ø
4 mm
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Cross section (flexible) (max.)
1.5 mm²
- Connection
Screws
- Factory colour
Green
- Insulation type
Partially insulated
- Manufacturer part #
930726104
- Type
BUELA 20 K
- Dim
(Ø) 4 mm
- Scoop-proof
Yes
- Content
1 pc(s)
- Insulation material
PVC
- Contact material
Brass nickel plated
- Nominal voltage
60 V DC
- (Ø)
4 mm
- RoHS-compliant
Yes
- Temperature range
-25 - +70 °C
- Resistance
3 mΩ
- Nominal voltage (details)
60 V DC
- Nominal current (details)
16 A
- Connection
Screws
- Cable diameter
1.5 mm²
Documents & Downloads
Datasheet
Datasheet 730955 Hirschmann Test & Measurement BUELA 20 K Banana plug Plug, straight Pin diameter: 4 mm Green 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 730955 Hirschmann Test & Measurement BUELA 20 K Banana plug Plug, straight Pin diameter: 4 mm Green 1 pc(s) Piece
Description
With flexible and crush sleeve (soft PVC) and cross hole, with screw connection, safe to touch.
Features
- 4 mm sockets
- With flexible crush-proof sleeve (soft PVC) and cross-hole
- Screw terminal connection
- Accidental contact protection.
