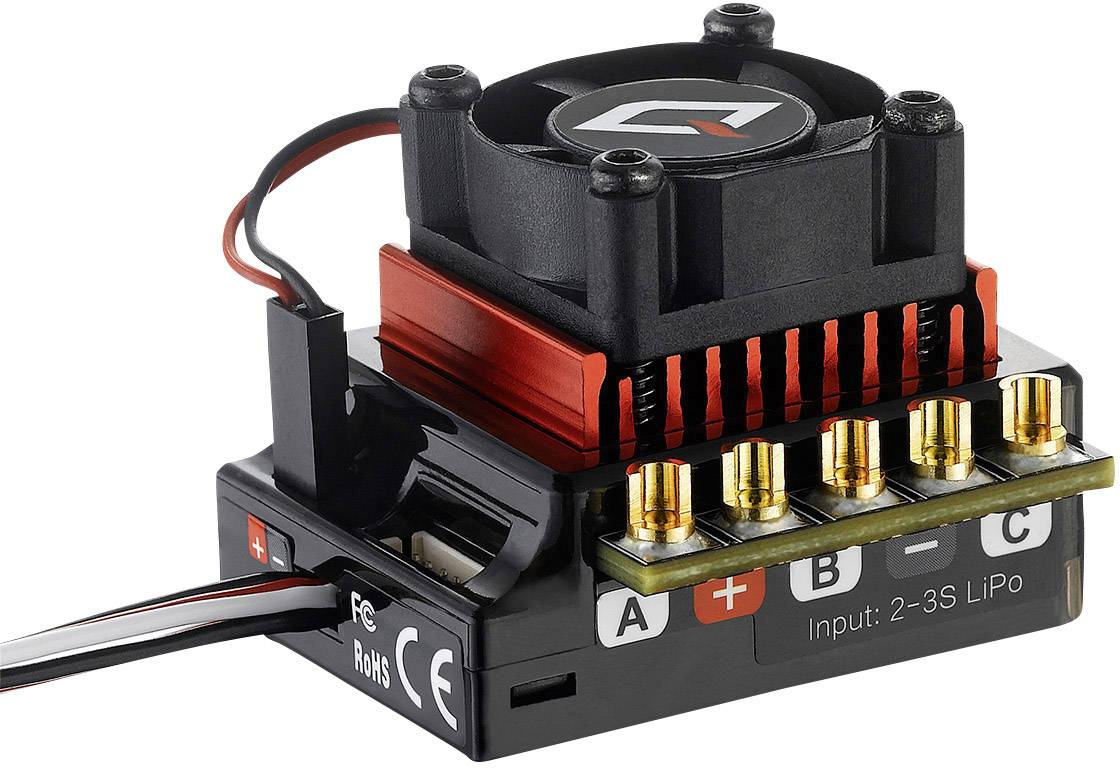

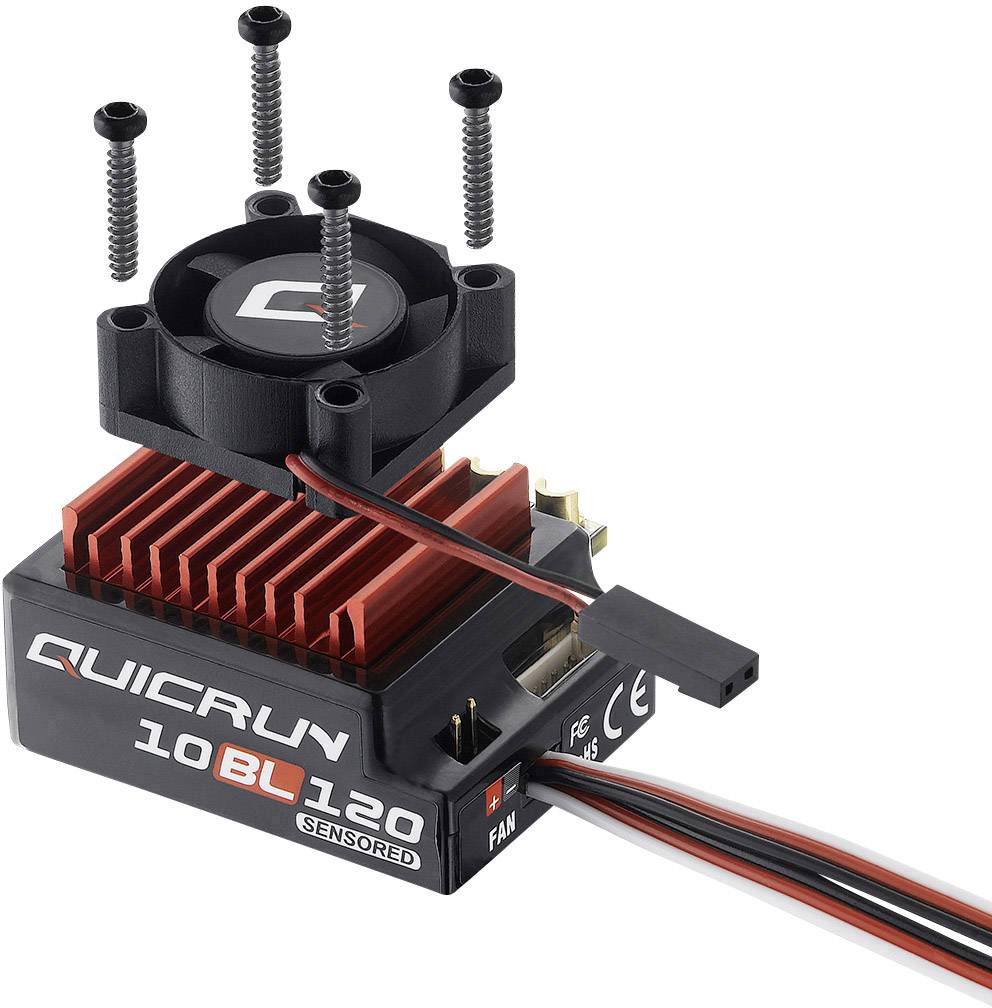

Hobbywing QuicRun 10BL120 120A Model car brushless speed control Load (Amp max.): 760 A
EAN:
Part number:
Item no:
Total (€ 65.99 / piece)
€ 65.99
incl. VAT
14-day return policy included
Highlights & Details
Brushless regulator QuicRun 10BL120 120 A sensor
- For 2-3 S LiPo
- For 4-9 NiMH
Technical specifications
- Product type
Model car brushless speed control
- Dim
(L x W x H) 33 x 28 x 31.5 mm
- Weight
105 g
- BEC data
6 V 5 A
- Load capacity (1s / 30 s / 5 min)
760 / - / 120 A
- Load (max.)
760 A
- Operating voltage
- No. of NiCd/NiMH batteries
4-9
- Manufacturer part #
30125000
- No. of LiPo cells
2-3
- Width
28 mm
- Height
31.5 mm
- Length
33 mm
Description
The QuicRun series of HobbyWing contains brushed and brushless drive systems. In the case of the brushless systems, there are also sensorless as well as sensor-based drives, thus this series offers a suitable solution for every need. The series is also very cost-effective and is aimed primarily at beginners and advanced pilots. It also convinces by the outstanding known quality of the Hobbywing products as well as by the uncomplicated commissioning.
This text is machine translated.
This text is machine translated.
Features
- Suitable for 01:10 touring car, Buggy, Drift, F1
- Top performance at a low price, this controller is ready for use in racing and at an affordable price.
- Compact design makes it suitable for almost any chassis.
- The automatic identification system detects whether a motor is used with or without a sensor.
- A first-class driving feeling and many setting options make it ideal for many applications and competitions.
- 8 different timing settings increase the output power of the motor and release its maximum potential.
- Proportional brake with adjustable max. braking force as well as automatic brake and "Initial Brake Force"
- 9 different acceleration programs from "soft" to very "aggressive" can be selected depending on the model and distance.
- Various protection functions:
- Low-voltage protection for rechargeable batteries
- Thermal overheating protection
- Gas signal loss protection
- Simple programming via a "Set" button on the controller
- Compatible with the optional "LED Program Card" for an even simpler programming always and everywhere
Scope of delivery
- Brushless controller
- User manual.
