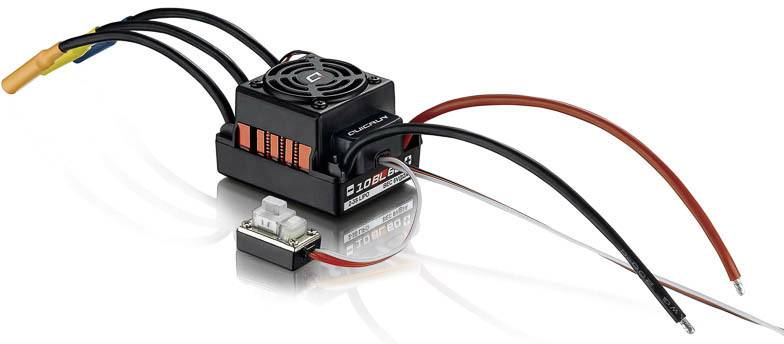

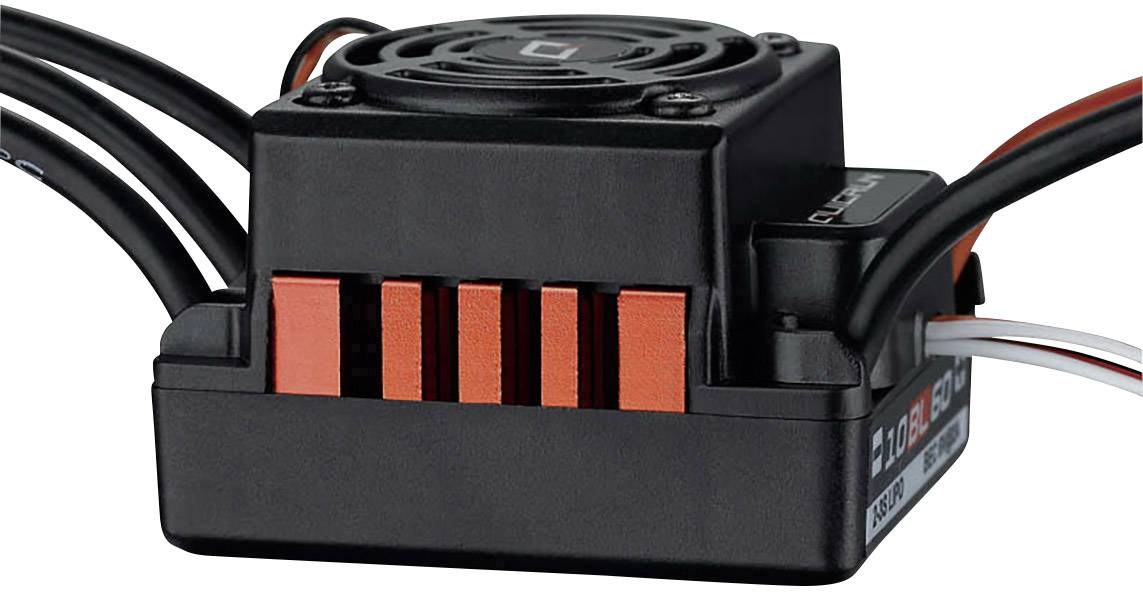

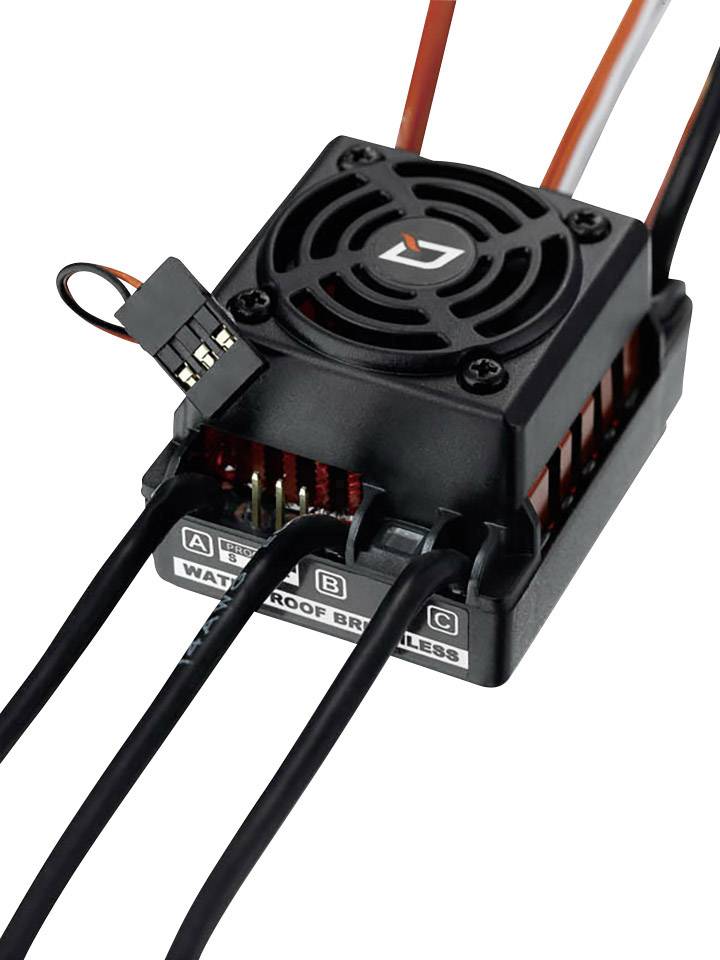

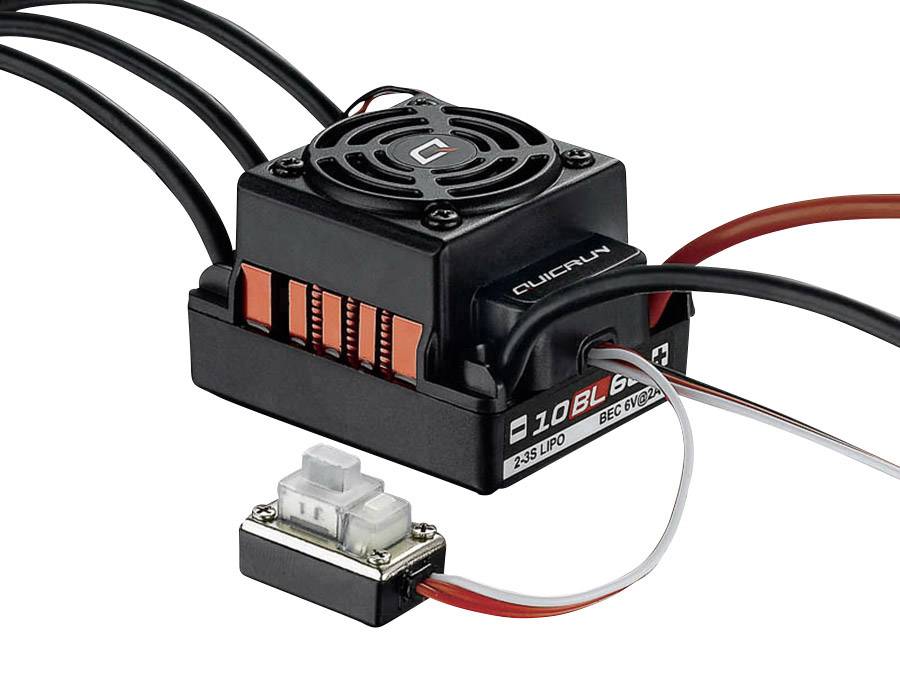

Hobbywing QuicRun WP10BL60 Model car brushless speed control Load (Amp max.): 360 A
EAN:
Part number:
Item no:
Brushless regulator QuicRun WP10BL60
Highlights & Details

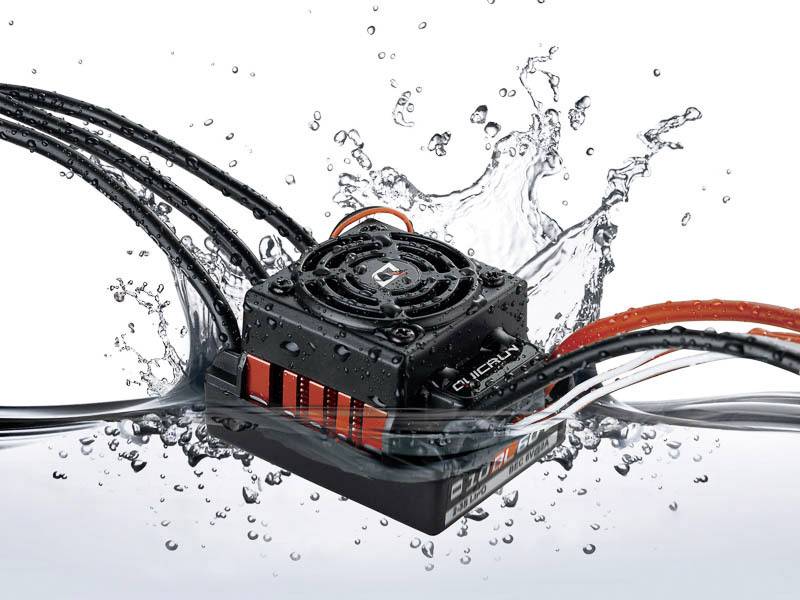

- Water- & dust-protected for use in all weather
- Easy programming
Technical specifications
- Dim
(L x W x H) 48.5 x 38 x 32 mm
- Weight
90 g
- BEC data
6V / 3 A
- Load (max.)
360 A
- Permanent current
60 A
- Operating voltage
- No. of NiCd/NiMH batteries
4-9
- Manufacturer part #
30107100
- Height
32 mm
- Length
48.5 mm
- Width
38 mm
- No. of LiPo cells
2-3
- Product type
Model car brushless speed control
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2108335 Hobbywing QuicRun WP10BL60 Model car brushless speed control Load (Amp max.): 360 A
Description
The QuicRun series of HobbyWing contains brushed and brushless drive systems. In the case of the brushless systems, there are also sensorless as well as sensor-based drives, thus this series offers a suitable solution for every need. The series is also very cost-effective and is aimed primarily at beginners and advanced pilots. It also convinces by the outstanding known quality of the Hobbywing products as well as by the uncomplicated commissioning.
This text is machine translated.
This text is machine translated.
Features
- External programming port for easy programming via the Program Card
- Proportional brake with adjustable max. braking strength as well as automatic brake
- 9 different acceleration programs from "soft" to very "aggressive" can be selected depending on the model and distance
- Various protective functions: Low-voltage protection for rechargeable batteries
- Thermal overheating protection
- Gas signal loss protection
- Simple programming via a "Set" button on the controller
Scope of delivery
- Drive controller
- User manual.
