1/2
Hobbywing Quicrun Fusion Mini16 Model car brushless motor kV (RPM per volt): 3000
EAN:
Part number:
Item no:
Number
Total (€ 75.99 / piece)
€ 75.99
incl. VAT
14-day return policy included
Technical specifications
- Current (duration/short): 30A/80A
- 2-3S LiPo, 6-9 cell NiMH
- BEC:6V/7.4V WITH 6A
- Number of motor poles: 4
- Motor controller FOX Sensed
- Wavelength 13.5 mm
- EC2 connection
- Programming: LED Programming box, LCD G2 / Pro Box
- Insert 1/16, 1/18 crawler
- Product type
Model car brushless motor
- kV (RPM per volt)
3000
- Shaft Ø
2.35 mm
- Dim
(Ø x L) 24 mm x 42 mm
- Weight
72 g
- Manufacturer part #
30120403
- Length
42 mm
- (Ø)
24 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3400164 Hobbywing Quicrun Fusion Mini16 Model car brushless motor kV (RPM per volt): 3000
Description

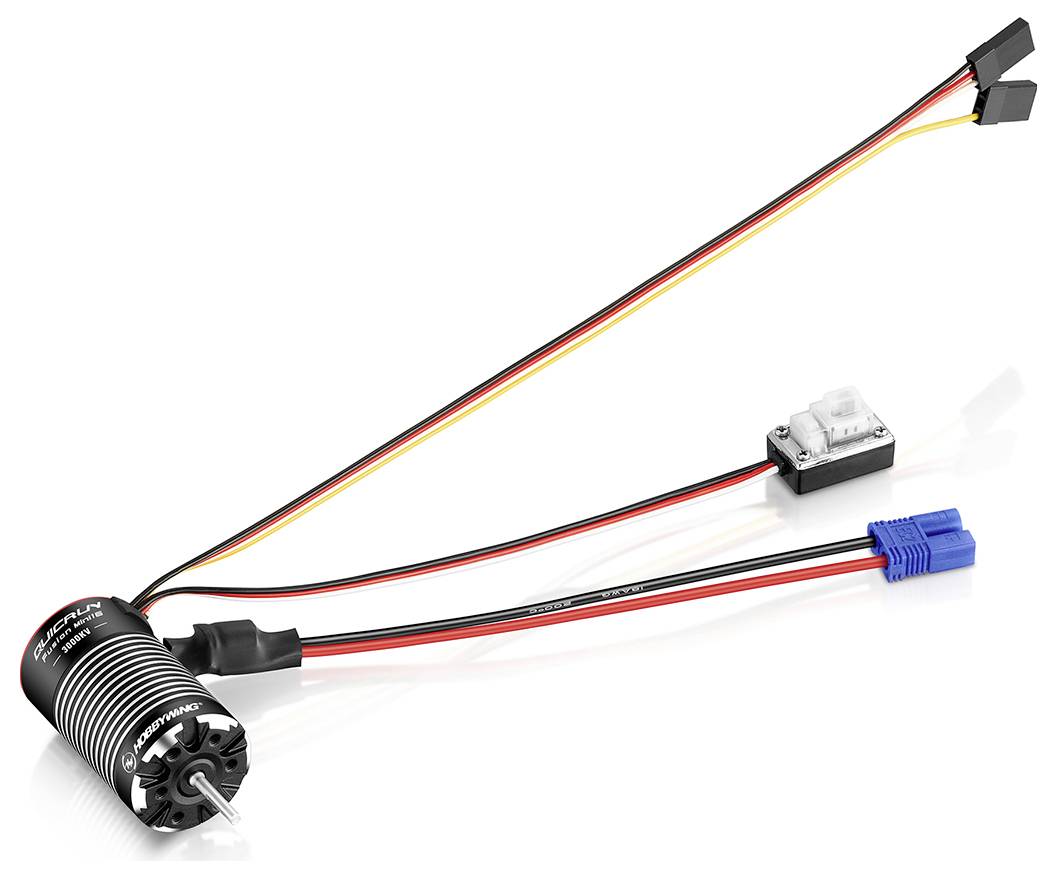

The QuickRun Fusion Mini16 is the latest development from the QuickRun Fusion series. Now the practical 2in1 Foc Combo is also available for 1/16 as well as 1/18 crawler and impresses, as well as its big predecessor with some innovative features.
Thanks to the motor built-in regulator, the QuickRun Fusion Mini16 is extremely space-saving and light-weight with 24 x 42mm and 72g (including cable and plug). Moreover, the Combo also possesses the FoC (Field Oriented Control) mode, especially for RockCrawler, and enables a strong torque at low speeds. The Combo offers a very high efficiency, generates less heat and works almost silently. At the same time the Mini16 is protected with IP66, WAS means excellent water- and dust-tightness, also called Ideal for all outdoor freaks! And with its extremely powerful BEC, the system supplies a continuous current of 4A and a maximum current of 10A. The output voltage can be switched between 6V and 7.4V.
This text is machine translated.
Thanks to the motor built-in regulator, the QuickRun Fusion Mini16 is extremely space-saving and light-weight with 24 x 42mm and 72g (including cable and plug). Moreover, the Combo also possesses the FoC (Field Oriented Control) mode, especially for RockCrawler, and enables a strong torque at low speeds. The Combo offers a very high efficiency, generates less heat and works almost silently. At the same time the Mini16 is protected with IP66, WAS means excellent water- and dust-tightness, also called Ideal for all outdoor freaks! And with its extremely powerful BEC, the system supplies a continuous current of 4A and a maximum current of 10A. The output voltage can be switched between 6V and 7.4V.
This text is machine translated.
Features
- 2-in-1 motor and controller in one
- Compact Ideal design to gain space and reduce weight
- Clearly noticeable improvement in performance
- FOC drive, Ideal for Crawler
- Powerful torque even at slow speed
- Suitable for all weather and distance positions
- Strong integrated BEC with function for switching the voltage
- Various safety mechanisms
- Programmable with the LED and LCD G2/Pro Box
