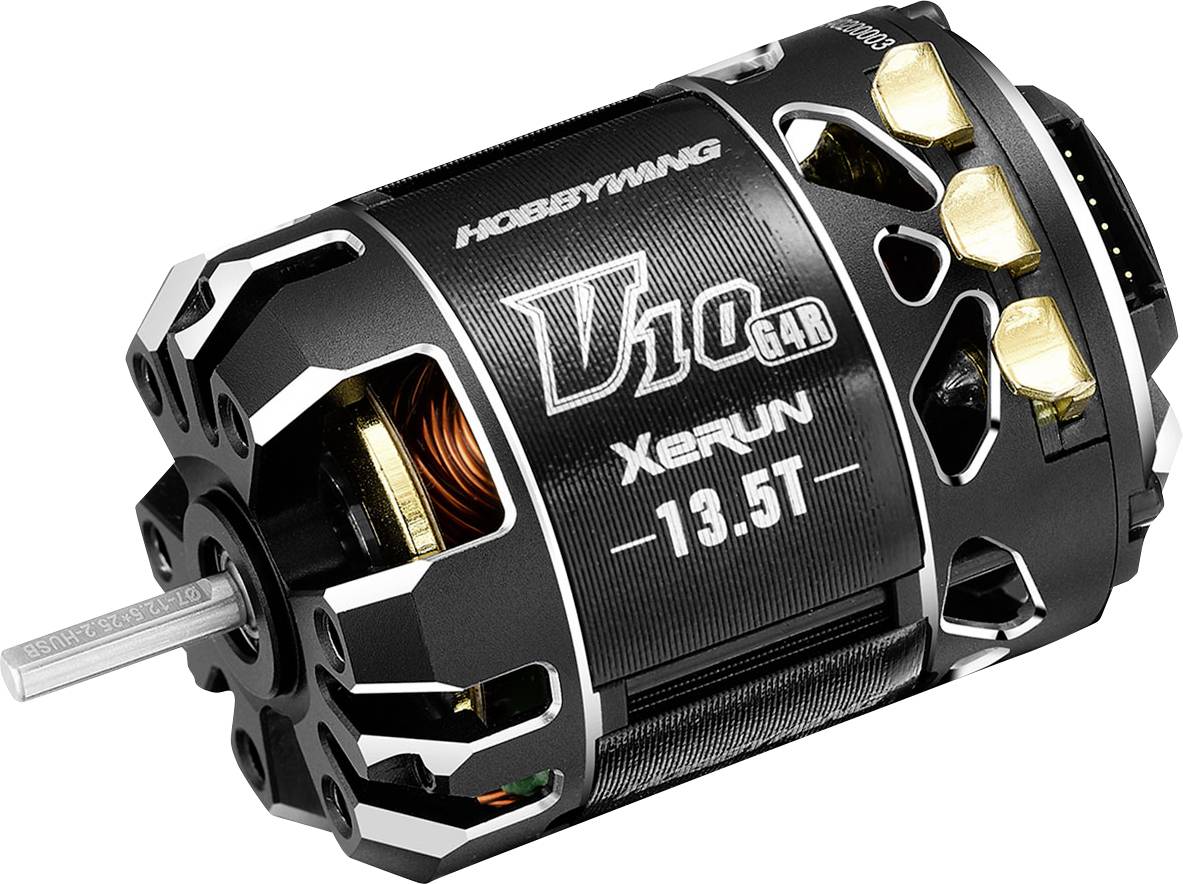

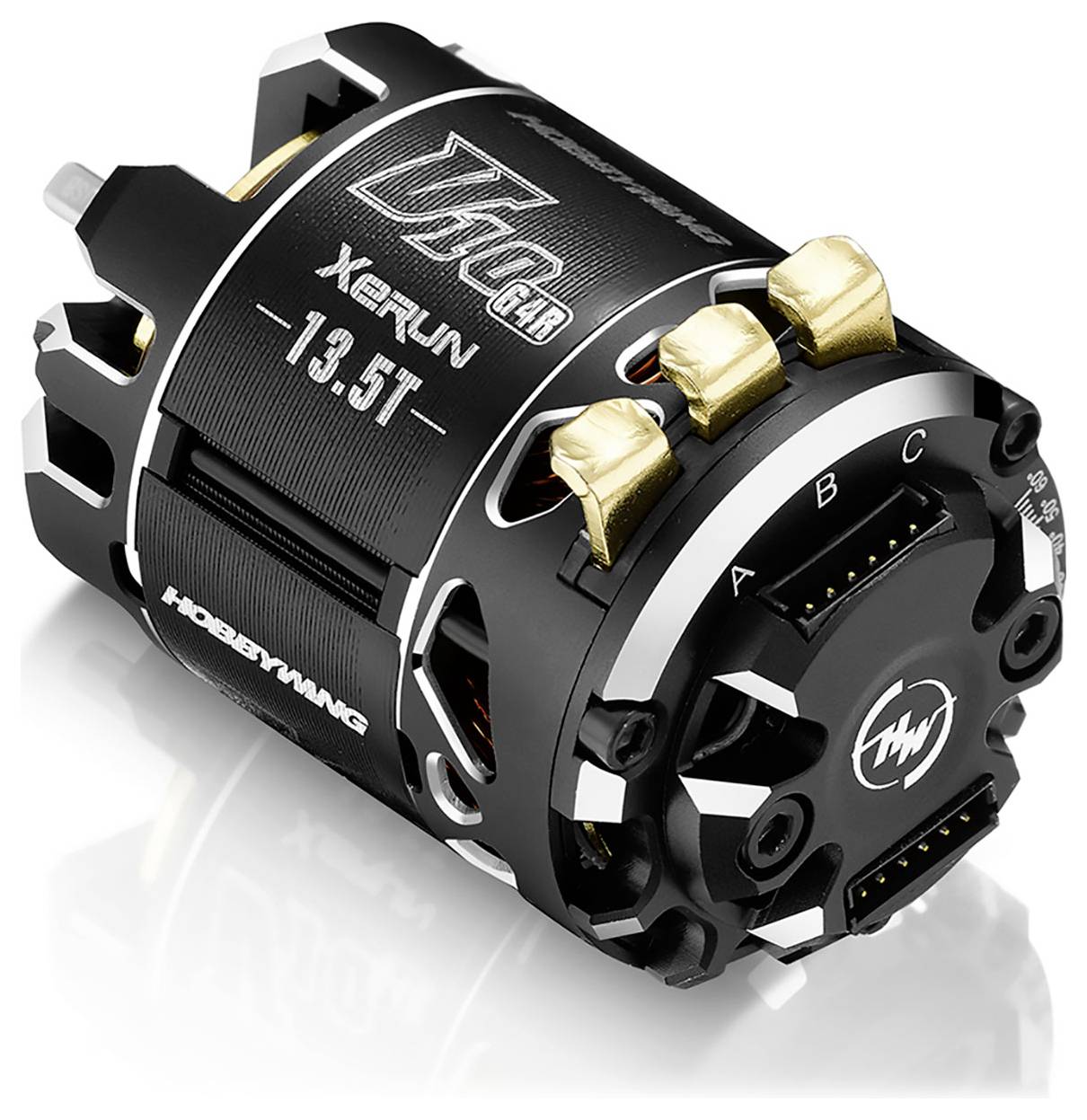

Hobbywing Xerun V10 G4R (2-3s) Model car brushless motor Turns: 13.5

1/3
EAN:
Part number:
Item no:
Dispatches on Thu 5 Nov

Sales and shipping:
Conrad ElectronicTerms & Conditions

Number
Total (€ 129.99 / piece)
€ 129.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included

Technical specifications

  • Number of motor poles: 2
  • Motor control: Sensored
  • Number of LiPo cells: 2-3S
  • Power max. 297 W
  • Amperes max. 70.7A
  • Idle current: 5.4A
  • Wavelength 13.9 mm
  • Timing adjustable from 20°-60°
  • Application: 1/10 stock
Product type

Model car brushless motor

Shaft Ø

3.17 mm

Dim

(Ø x L) 35.8 mm x 51.3 mm

Weight

152 g

Manufacturer part #

30401749

Length

51.3 mm

(Ø)

35.8 mm

Turns

13.5

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3400185 Hobbywing Xerun V10 G4R (2-3s) Model car brushless motor Turns: 13.5

Description

The Xerun V10 G4R engine from Hobbywing provides outstanding performance on the track. Up to 7% more speed and 9% higher power it stands out from the comparable engines in the sector. Even in comparison to the previous G4 version, the improvement in performance is still 4% plus, providing an exciting driving experience for every 1/10-floor race.

The G4R engine uses the exposed Kern and the completely new rotor to dissipate heat by means of an optimized air draft. In the G4 predecessor, among other things, the external diameter and the total area were increased by more than a quarter in order to effectively cool the motor and quickly dissipate the heat to the outside. And even if it gets a bit hotter, for example, the wiring inside the motor can withstand temperatures up to 220°C. And the new nylon shims in the motor also reduce the noise level and are particularly resistant components that are resistant to wear.
Install the engine completely according to your own needs. For example, there are two sensor connections in order to make the cable routing as space-saving as possible. And if you place even more emphasis on personalization, you can use the optional rotor to get the engine ready for particularly demanding competitions.

This text is machine translated.

Features

  • 9% more power and 7% more speed than comparable engines
  • 3% less internal resistance than the G4, for a high efficiency
  • Low-noise motor with high life span
  • First-class, linear performance
  • Weight and cooling-optimized housing
  • High-quality components
  • Finely adjustable mechanical timing

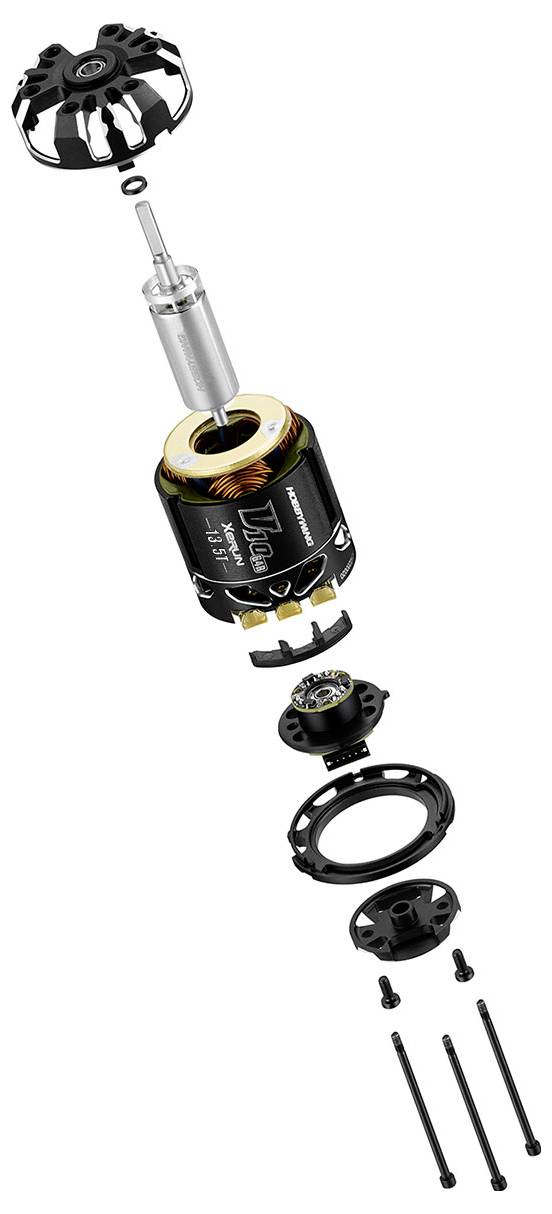

  • Easy to dismantle for maintenance
