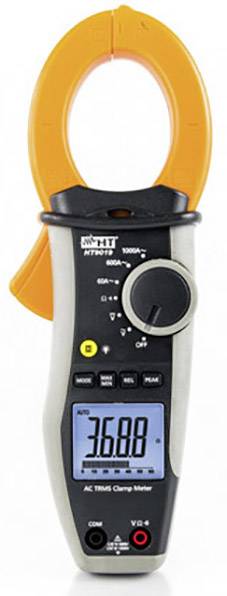

Name: HT Instruments HT9019 Clamp meter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000
Brand: HT Instruments
SKU: 2176476
Availability: InStock

Highlights & Details

Professional clamp-on ammeter 1000 A AC TRMS and safety with CAT IV.

CAT III 1000 V, CAT IV 600 V

Technical specifications

Voltage reading range DC (min.): 0.01 mV

Product type: Clamp meter

Voltage DC reading range (max.): 1000 V

V AC reading range (min.): 1 mV

V AC reading range (max.): 1000 V

A DC reading range (max.): 1000 A

A AC reading range (min.): 0.01 A

Amperage reading range AC (max.): 1000 A

Reading range - resistance: 0.1 Ω - 60 MΩ

Measurement type (details): True RMS

Power supply (details): 1x 9 V battery

Height: 44 mm

Width: 88 mm

Length: 252 mm

Weight: 420 g

: Manufacturer's standards (no certificate)

Reading category: CAT III 1000 V
CAT IV 600 V

Voltage metering: AC/DC

Current reading: AC

Type: HT9019

Display: Digital

Display (counts): 6000

Dim: (L x W x H) 252 x 88 x 44 mm

Opening range of current clamps: 45 mm

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2176476 HT Instruments HT9019 Clamp meter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000

User & Safety Instructions

User & Safety Instructions 2176476 HT Instruments HT9019 Clamp meter Digital CAT III 1000 V, CAT IV 600 V Display (counts): 6000

Description

The professional clip-on ammeter HT9019 was developed to measure alternating currents up to 1000 A in the overvoltage category CAT IV 600 V or CAT III 1000 V and to comply with the specifications of IEC/EN 61010-1. This TRMS measuring clamp-on ammeter is equipped with a large 6000 point resolution display and an Auto Power OFF function, in order to protect the batteries. The 9019 also offers a variety of multimeter measurement functions with a wide measurement range.

This text is machine translated.

Scope of delivery

Test lead pair
9 V battery
Bag
User manual.

Description

The professional clip-on ammeter HT9019 was developed to measure alternating currents up to 1000 A in the overvoltage category CAT IV 600 V or CAT III 1000 V and to comply with the specifications of IEC/EN 61010-1. This TRMS measuring clamp-on ammeter is equipped with a large 6000 point resolution display and an Auto Power OFF function, in order to protect the batteries. The 9019 also offers a variety of multimeter measurement functions with a wide measurement range.
