HT Instruments PQA820Ti Network diagnostics Calibrated to (ISO standards) 3-phase Data logger
EAN:
Part number:
Item no:
Number
Total (€ 3,159.00 / piece)
€ 3,159.00
incl. VAT
14-day return policy included
Highlights & Details
3-phase data logger for power and performance analysis PQA 820Ti including Ipad Mini
- 4 channels for current 0.1 A up to 1000 A AC TRMS
- 4 channels for voltage 10 V to 690 V AC TRMS
- Apparent, active and reactive power measurement
- Apparent, active and reactive energy measurement
- Measurement of Cos and power factor (PF)
- Measurement of frequency
- Measuring interval of 5 sec to 60 min
- Calculation of the THD of voltage and current
- Harmonic analysis Voltage & Current up to 50. Order
- Power modes: Single-phase, three-phase with or without neutral wire
- The configuration and data transfer via USB, Wi-Fi
- Real-time analysis via Wifi or USB
- Internal Li-ion rechargeable battery
- IP65 dust and splash water.
Technical specifications
- Number of Channels: 8
- Product type
Network diagnostics
- Reading category
CAT IV 300 V
- Phase detection
Yes
ISO standards
- Power supply (details)
Li-ion battery
- Dim
(L x W x H) 24.5 x 21 x 11 cm
- Weight
700 g
- Measurement type
3-phase
- Features
Data logger
- Width
21 cm
- Height
11 cm
- Length
24.5 cm
- Interfaces
USB
Wi-Fi
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1491945 HT Instruments PQA820Ti Network diagnostics Calibrated to (ISO standards) 3-phase Data logger
Description
Three-phase data logger for power and performance analysis.
The pqa power quality analyzer for the simple and 820 is a comprehensive analysis of the most important parameters of the electrical system including power consumption and energy consumption. The measurement is done via 4 current transformer and 4 voltage inputs.
Online analysis
Thanks to the innovative concept, the PQA 820 with smartphones, tablet pcs and PDAs (iOS and/or Android) and thus the user precise in real time via all consumption values to the measured system. All electrical parameters are displayed both in numerical or graphical mode including waveforms and histograms.
Memory
The large integrated memory enables, for example, of 383 selected measurement parameters and a measuring interval of 10 min. a recording time of more than 30 days. By default, the PQA820 saves all 383 parameters and thus prevents possible setting error. Only the power form (single-phase; 3-phase with N or 3-phase without N) is by the user.
Interfaces
The pqa820 is an internal lithium-ion battery and a built-in power supply via the connection L-N and L-L-operated. The Wi-Fi and the USB interfaces offer easy connection to smartphones, tablet pcs, PDAs and PCs for the device configuration, start and stop of measurements, downloading of data and the online analysis.
Cases & Enclosures
With protection class IP65 classified PQA820 (waterproof) enables a working used also in the open under harsh environmental conditions.
This text is machine translated.
The pqa power quality analyzer for the simple and 820 is a comprehensive analysis of the most important parameters of the electrical system including power consumption and energy consumption. The measurement is done via 4 current transformer and 4 voltage inputs.
Online analysis
Thanks to the innovative concept, the PQA 820 with smartphones, tablet pcs and PDAs (iOS and/or Android) and thus the user precise in real time via all consumption values to the measured system. All electrical parameters are displayed both in numerical or graphical mode including waveforms and histograms.
Memory
The large integrated memory enables, for example, of 383 selected measurement parameters and a measuring interval of 10 min. a recording time of more than 30 days. By default, the PQA820 saves all 383 parameters and thus prevents possible setting error. Only the power form (single-phase; 3-phase with N or 3-phase without N) is by the user.
Interfaces
The pqa820 is an internal lithium-ion battery and a built-in power supply via the connection L-N and L-L-operated. The Wi-Fi and the USB interfaces offer easy connection to smartphones, tablet pcs, PDAs and PCs for the device configuration, start and stop of measurements, downloading of data and the online analysis.
Cases & Enclosures
With protection class IP65 classified PQA820 (waterproof) enables a working used also in the open under harsh environmental conditions.
This text is machine translated.
Scope of delivery

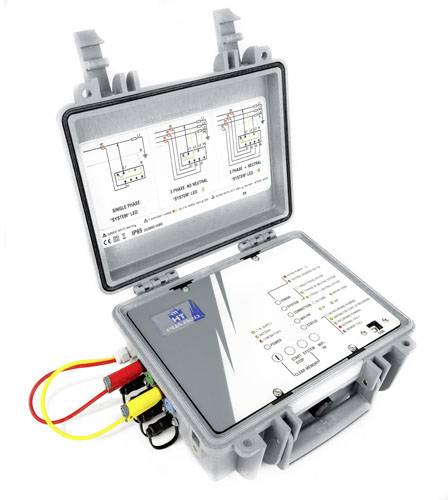

- PQA820 in a robust case (IP65)
- Bag for accessories
- 4 flexible current transformer 100 A/1000 A AC
- 4-colored safety test leads
- 4 alligator clips
- Evaluation & protocol software TOPVIEW2007
- USB cable
- User manual
- ISO 9000 calibration protocol
- IPad Mini.
