i-tec USB-C® docking station I-TEC USB-C Quattro Docking Station 85W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 151.25 / piece)
€ 151.25
plus VAT.
Only 3 Piece(s) available
i-tec C31QUATTRODOCKPD USB-C® docking station
Highlights & Details
- Connection A (or inputs): USB-C® USB 3.2 (1st Gen)

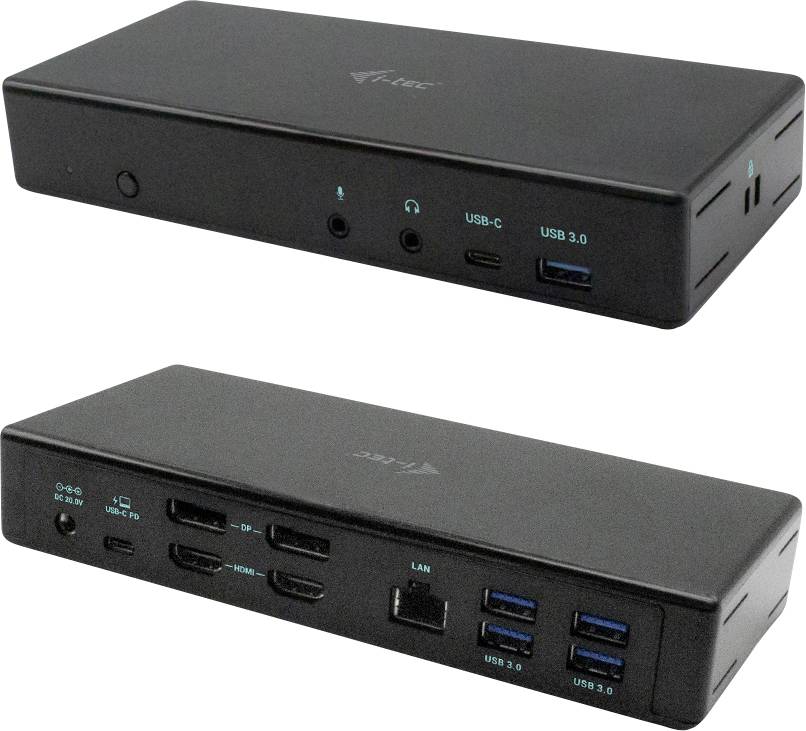

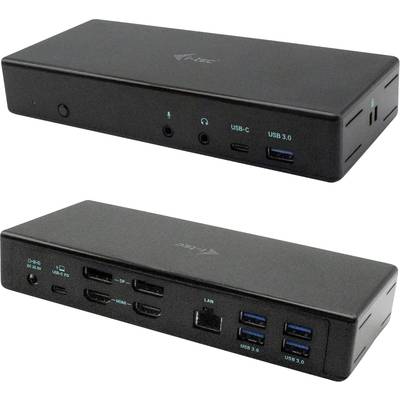

- Connecton B (or outputs): USB 3.2 1st Gen port A (USB 3.0), USB 3.2 1st Gen port C (USB 3.0), LAN (10/100/1000 Mbps), HDMI®, Headphone jack, DisplayPort socket, Microphone socket
- No. of supported monitors:
- Maximum resolution: 2560 x 1440 p
- Key features:
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type-C
- USB 3.2 Gen 1 (3.1 Gen 1) Number of ports Type A: 5
- USB 3.2 Gen 1 (3.1 Gen 1) Number of C-type connectors: 2
- Transmission technology: Cable-bound
- Number of Ethernet LAN connections (RJ-45): 1
- DC connection (DC): Yes
- Number of HDMI connections: 2
- Headphone outputs: 1
- Number of DisplayPort connections: 2
- 3.5 mm headphone jack
- Microphone input: Yes
- On/off switch: Yes
- Energy source: AC
- Compatible plug types: EU
- AC input voltage 100-240 V
- Output voltage 20 V
- Output current 6.75 A
- Power cable length 1.6 m.
- AC input frequency 50 - 60 Hz
- Width: 197 mm
- Depth: 85 mm
- Height: 34 mm
- Weight: 290 g
- Product color: Black
- Resolution (maximum, digital) 2560 x 1440 pixels
- Cable lock slot: Yes
- Slot type cable lock Kensington
- User manual: Yes

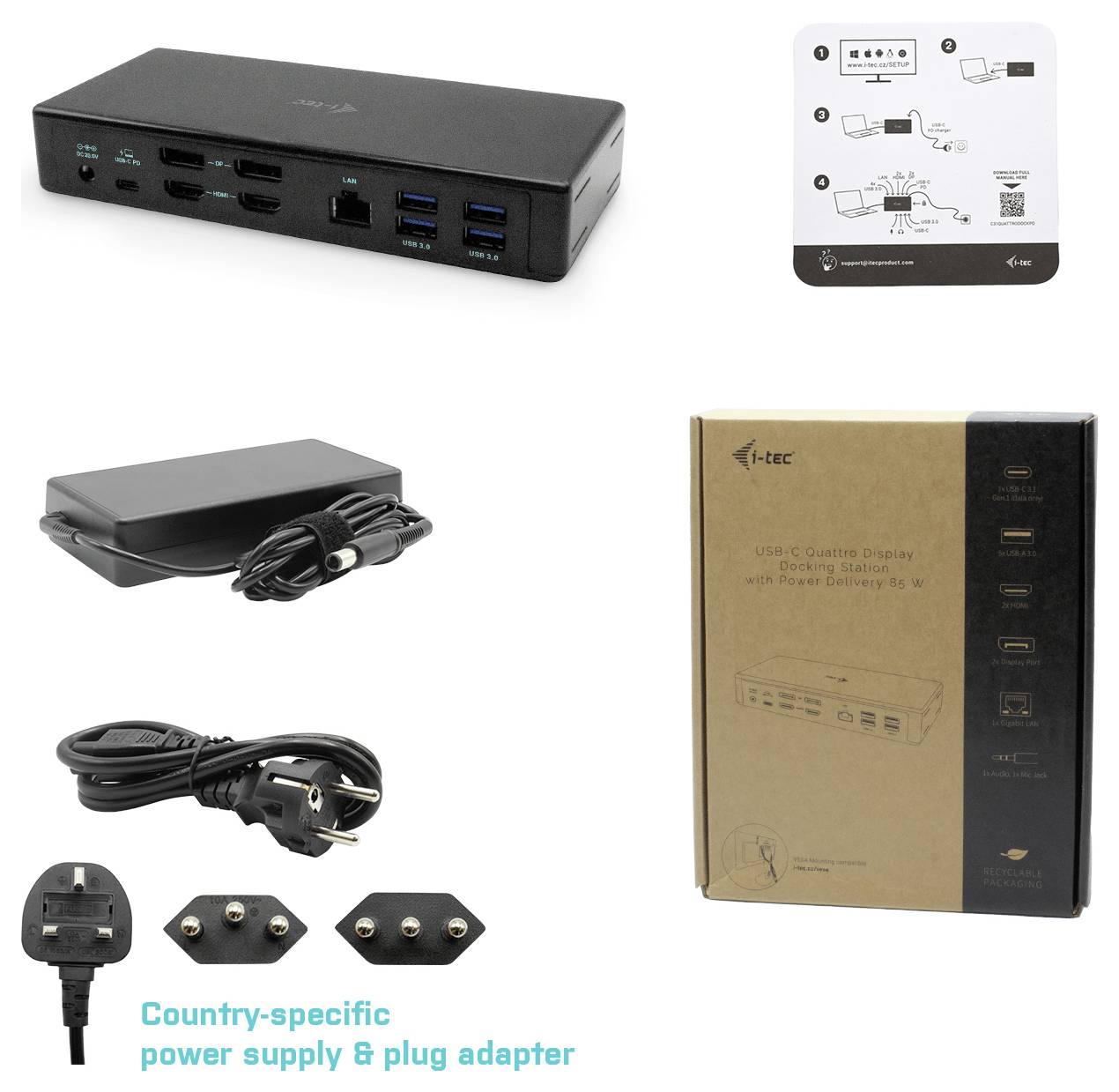

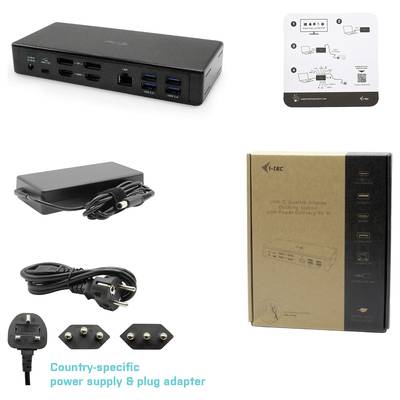

- AC mains adapter: Yes
- Cable supplied: USB Type-C.
- LED indicators: Yes
- USB Power delivery: Yes
- USB power supply up to 85 W
- Ethernet LAN data transfer rates of 10,100,1000 Mbit/s.
- Ethernet/LAN: Yes
- Supports Windows operating systems: Yes
- Supports Mac operating systems: Yes
- Supported Linux operating systems: Yes
- Support for other operating systems: Android
- VESA-bracket: Yes
- Product type
USB-C® docking station
- Type A
USB-C® USB 3.2 (1st Gen)
- Type B
USB 3.2 1st Gen port A (USB 3.0)
USB 3.2 1st Gen port C (USB 3.0)
LAN (10/100/1000 Mbps)
HDMI®
Headphone jack
DisplayPort socket
Microphone socket
- Suitable for
Notebook
iPad
MacBook
- Resolution (max.)
2560 x 1440 p
- Factory colour
Black
- Width
197 mm
- Height
34 mm
- Depth
85 mm
- Weight
290 g
- Dim
(W x H x D) 197 x 34 x 85 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3290748 i-tec USB-C® docking station I-TEC USB-C Quattro Docking Station 85W
User & Safety Instructions
User & Safety Instructions 3290748 i-tec USB-C® docking station I-TEC USB-C Quattro Docking Station 85W
Description

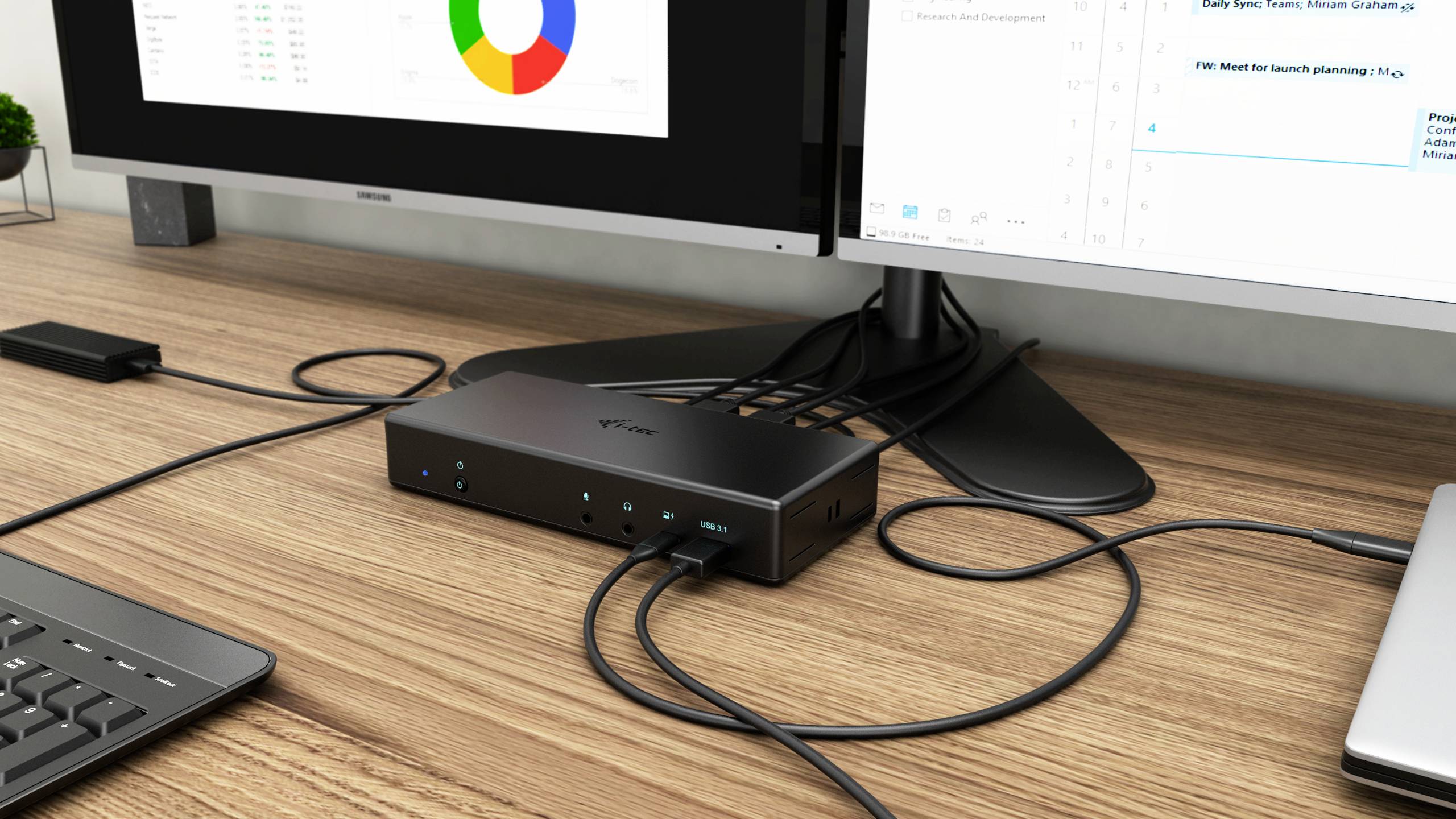

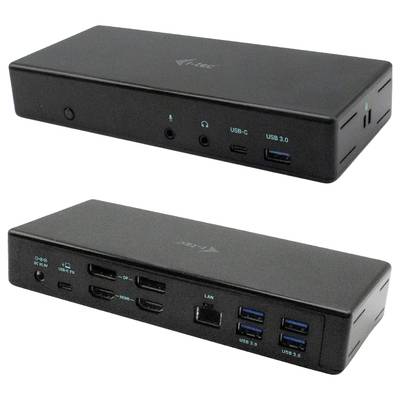

Professional USB-C metal docking station, which supports up to four external screen outputs. This docking station is equipped with hybrid image processing, built on DisplayLink and USB-C video transmission technologies, allowing image processing on up to four display devices.
The station is compatible with every laptop, which is equipped with a USB-C port (with support of video transmission) or Thunderbolt-3 port. 6x USB port, reliable and fast connection with the company network thanks to the integrated LAN port, all this makes the docking station an ideal companion for real professionals. Naturally, the power supply of your notebook or tablet up to 85 W is also included.
* Note: MacOS does not support Multi Stream Transport (MST) video technology, i.e., if you connect to MacOS, the same image is projected on two of the four connected monitors.
This text is machine translated.
The station is compatible with every laptop, which is equipped with a USB-C port (with support of video transmission) or Thunderbolt-3 port. 6x USB port, reliable and fast connection with the company network thanks to the integrated LAN port, all this makes the docking station an ideal companion for real professionals. Naturally, the power supply of your notebook or tablet up to 85 W is also included.
* Note: MacOS does not support Multi Stream Transport (MST) video technology, i.e., if you connect to MacOS, the same image is projected on two of the four connected monitors.
This text is machine translated.

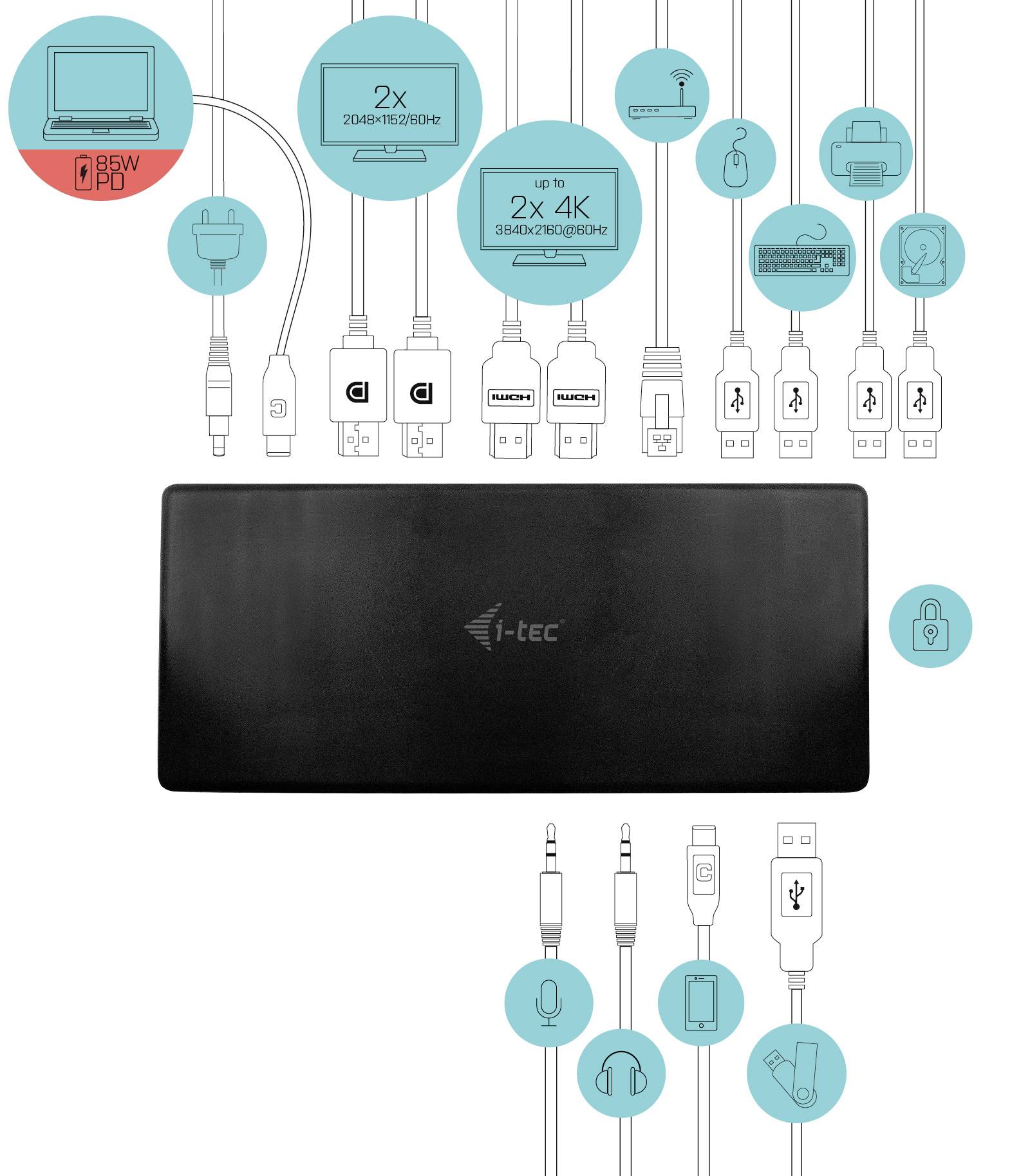

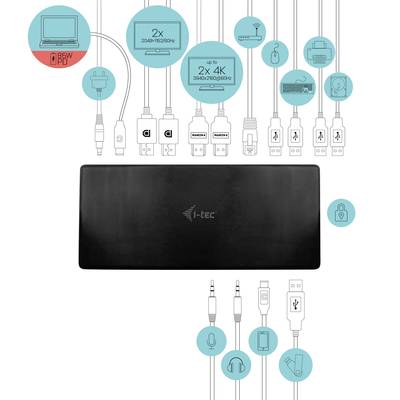

Features

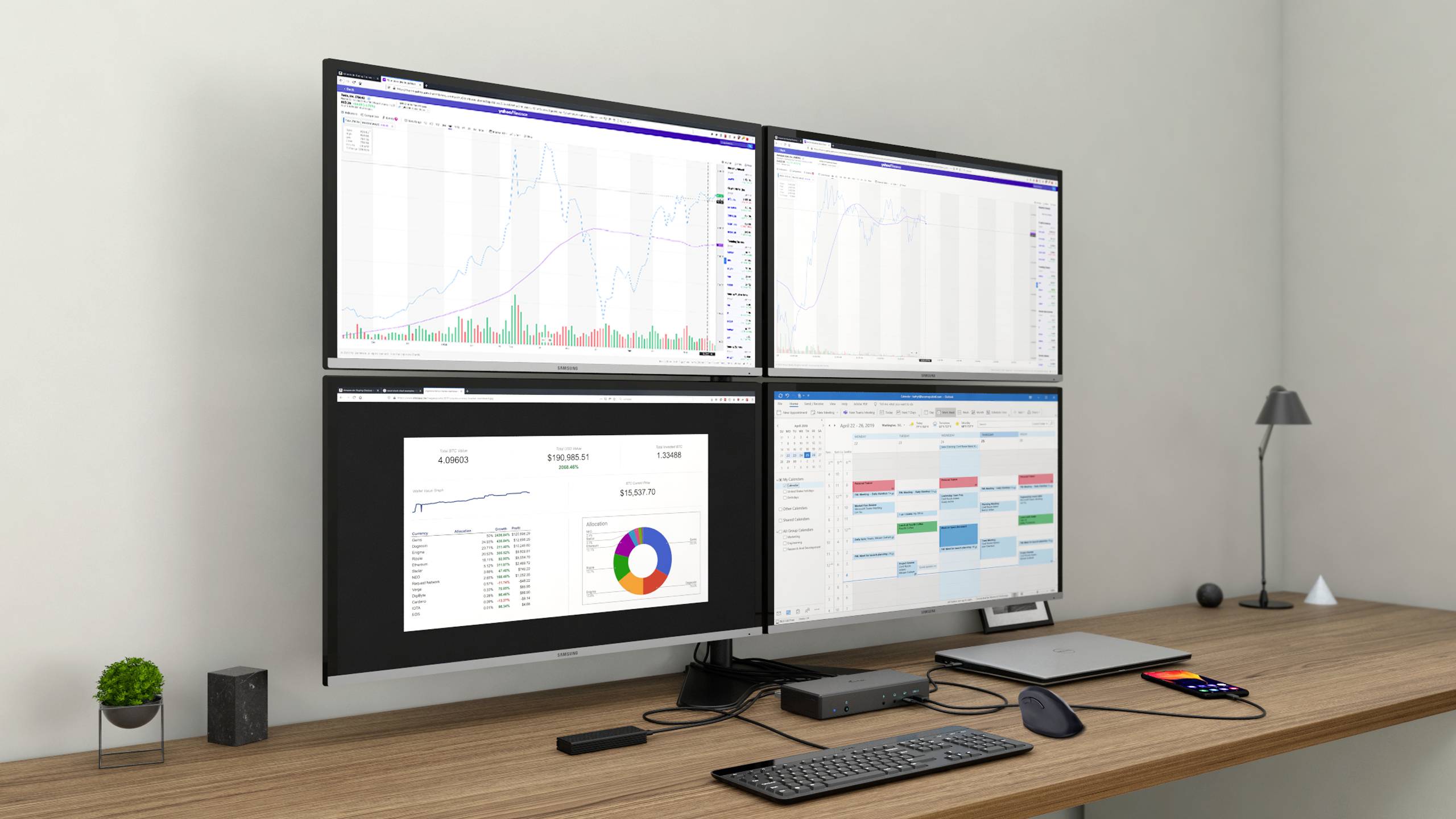

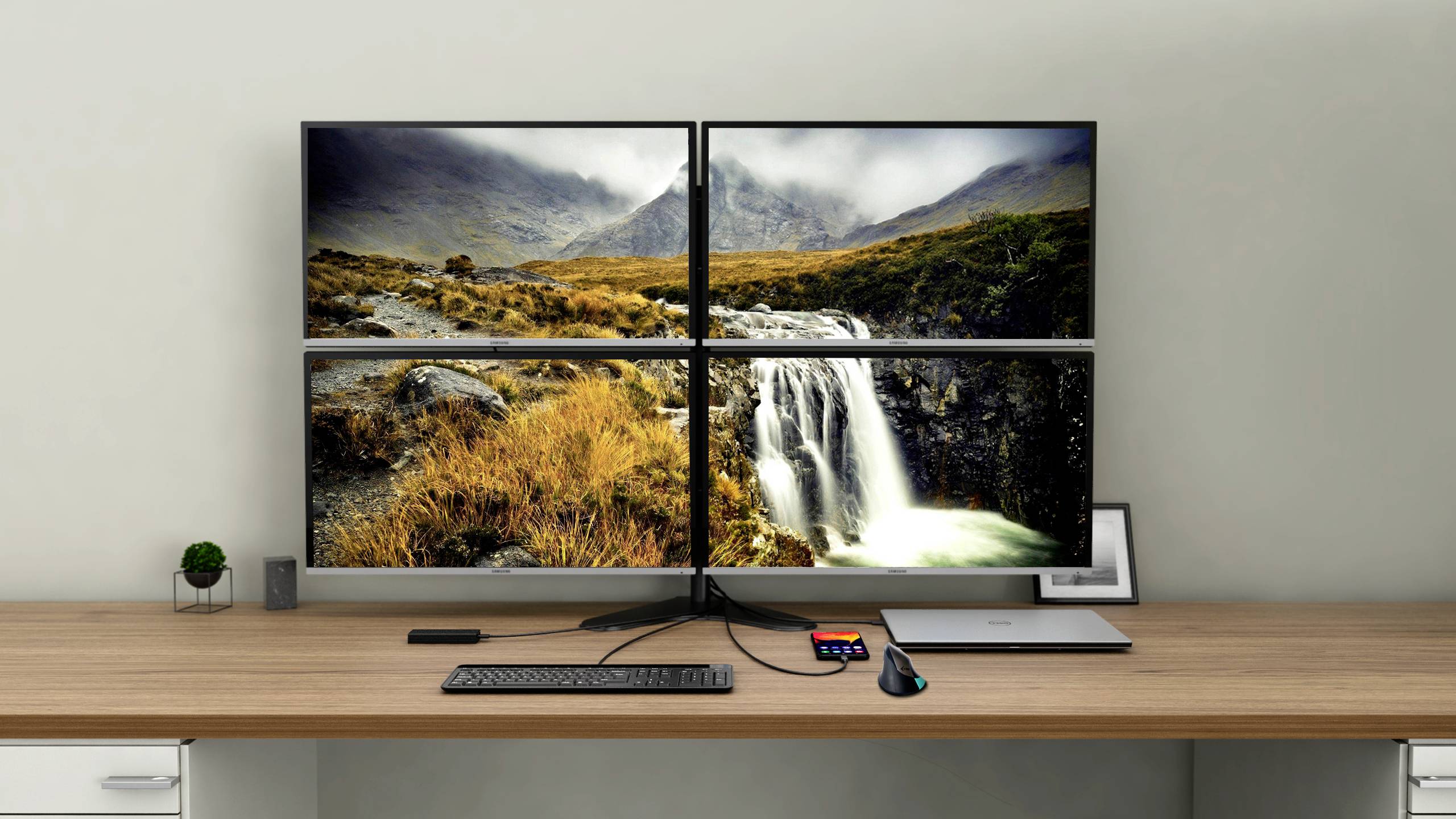

- Connect up to 4 external screens

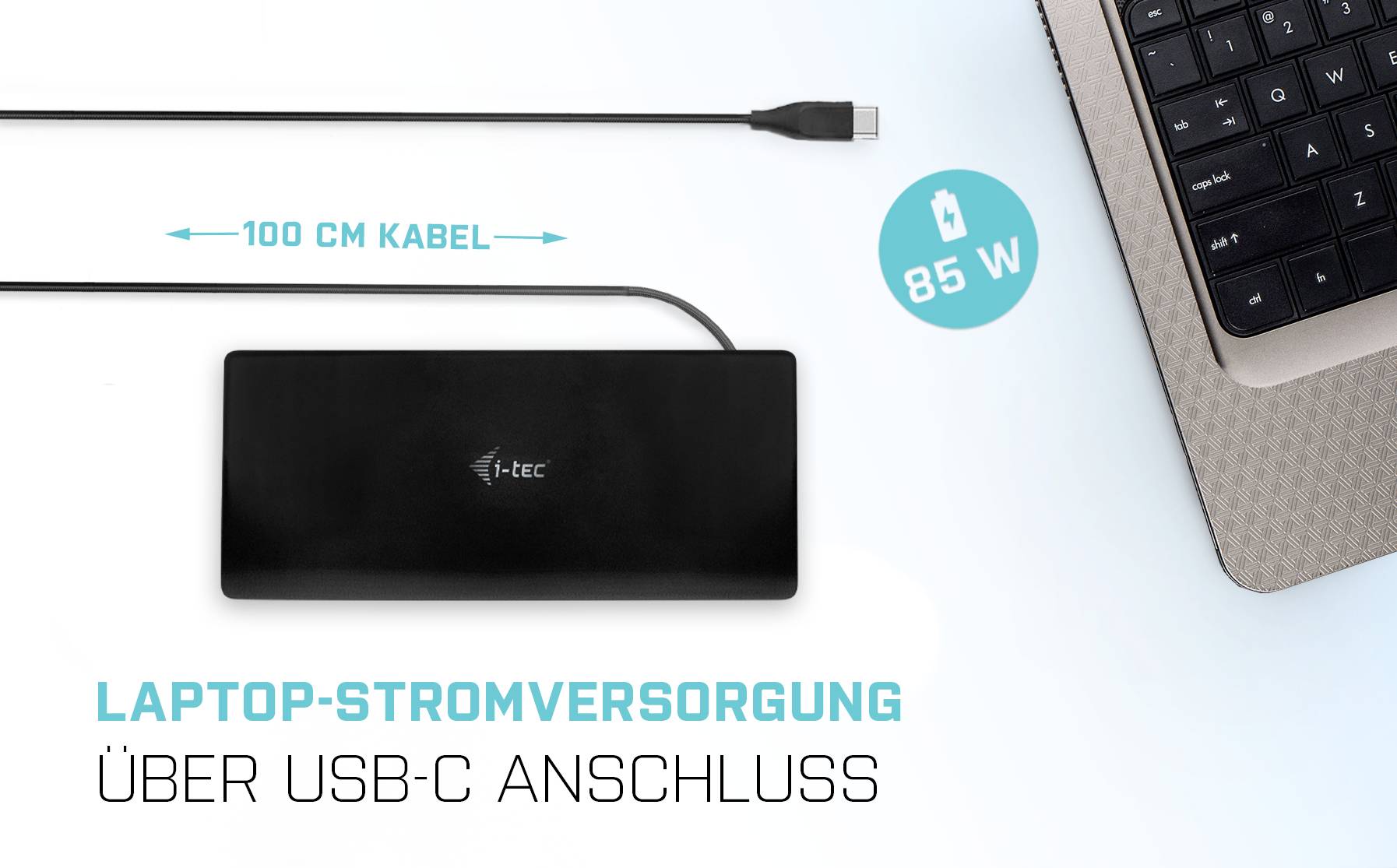

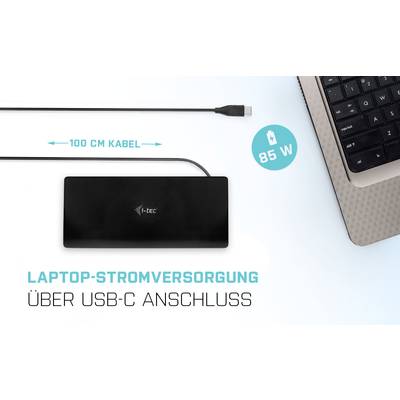

- Power delivery: Up to 85 W
- Available are 2 DisplayPort ports and 2 HDMI ports

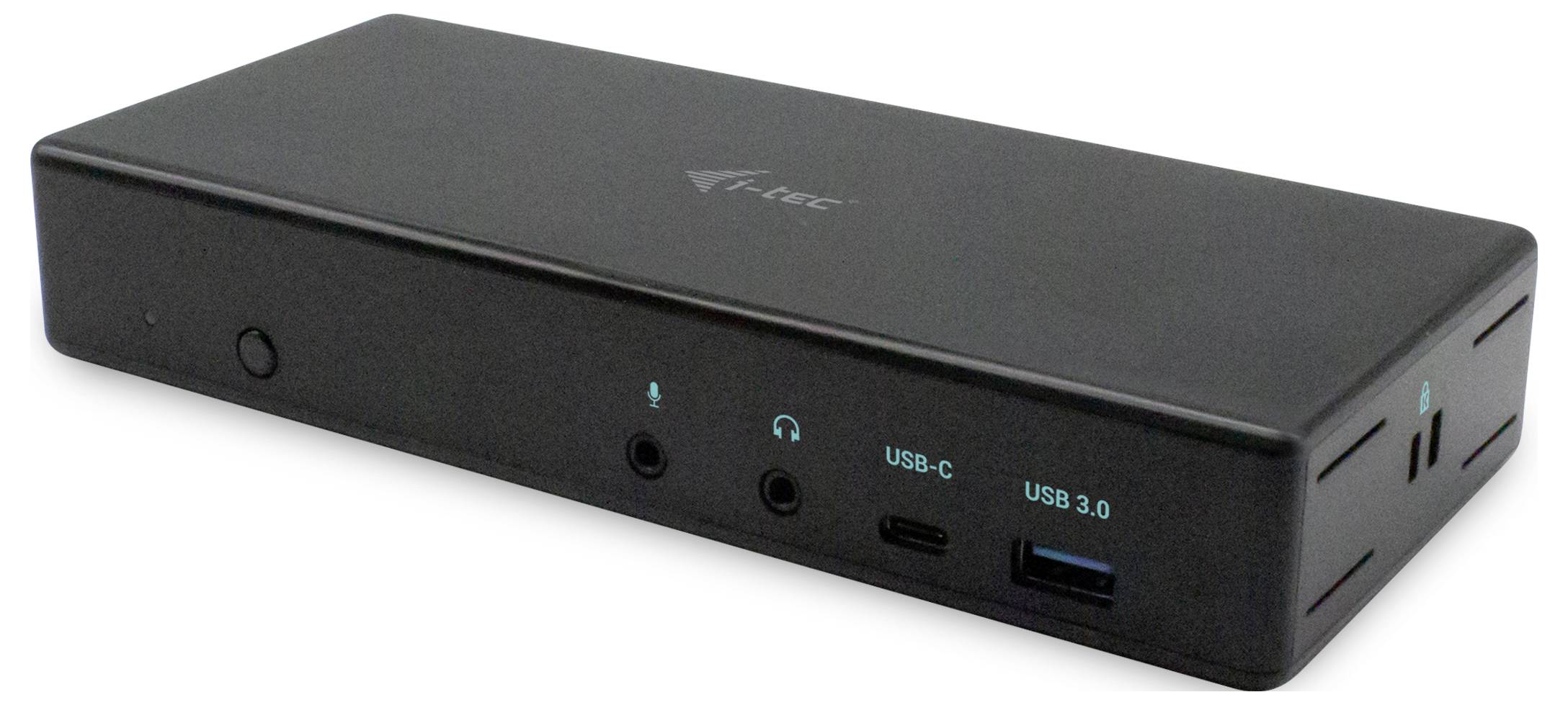

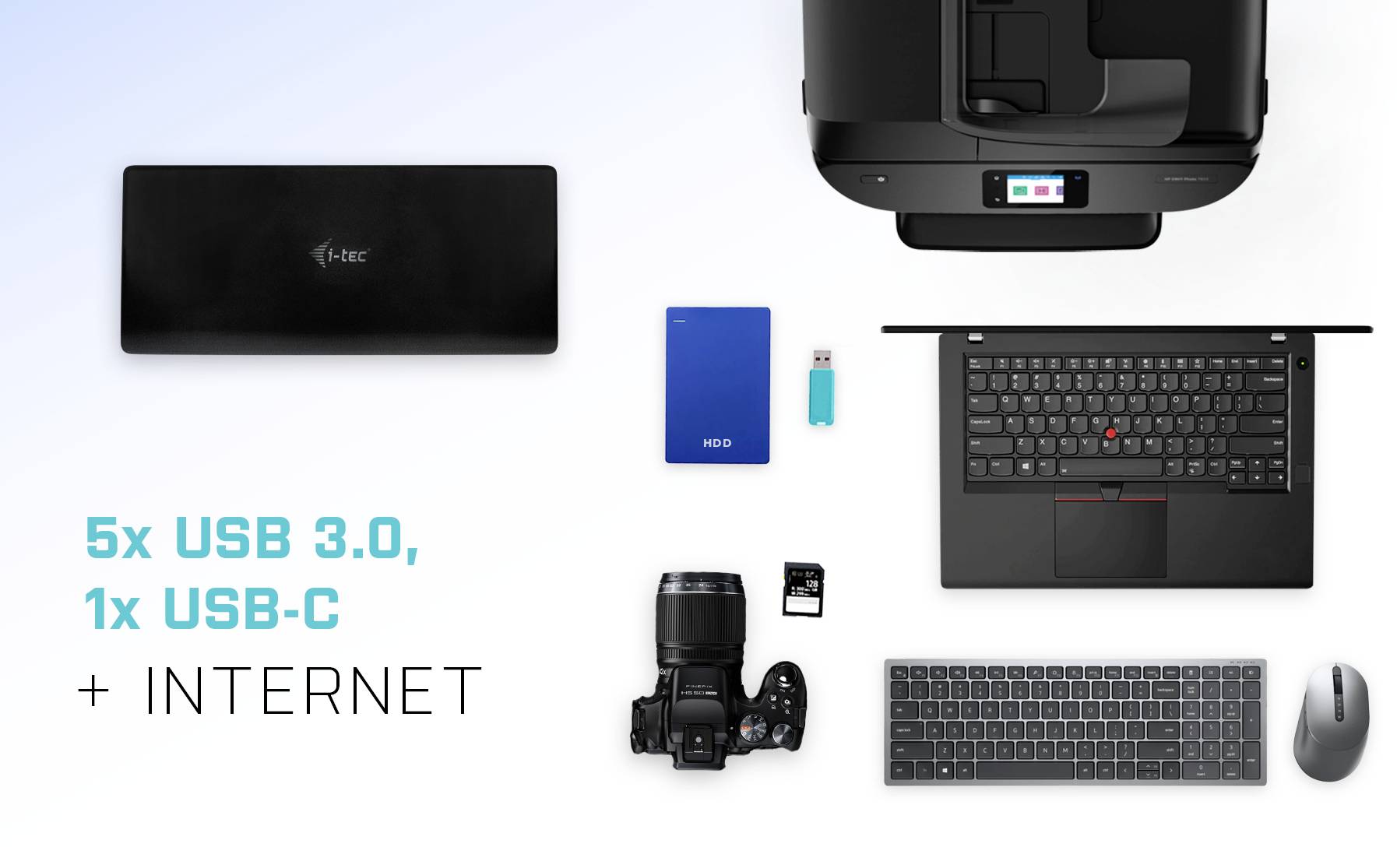

- 5x USB 3.0 and 1x USB-C enable you to easily connect your USB devices and peripherals
- Gigabit Ethernet RJ-45 provides a reliable, robust high-speed Internet connection with support for speeds of 10/100/1000 Mbps
- 2x jack output for audio and microphone
- The Kensington lock ensures theft protection, especially in shared offices or publicly accessible environments
- The switch on the docking station allows maximum energy savings

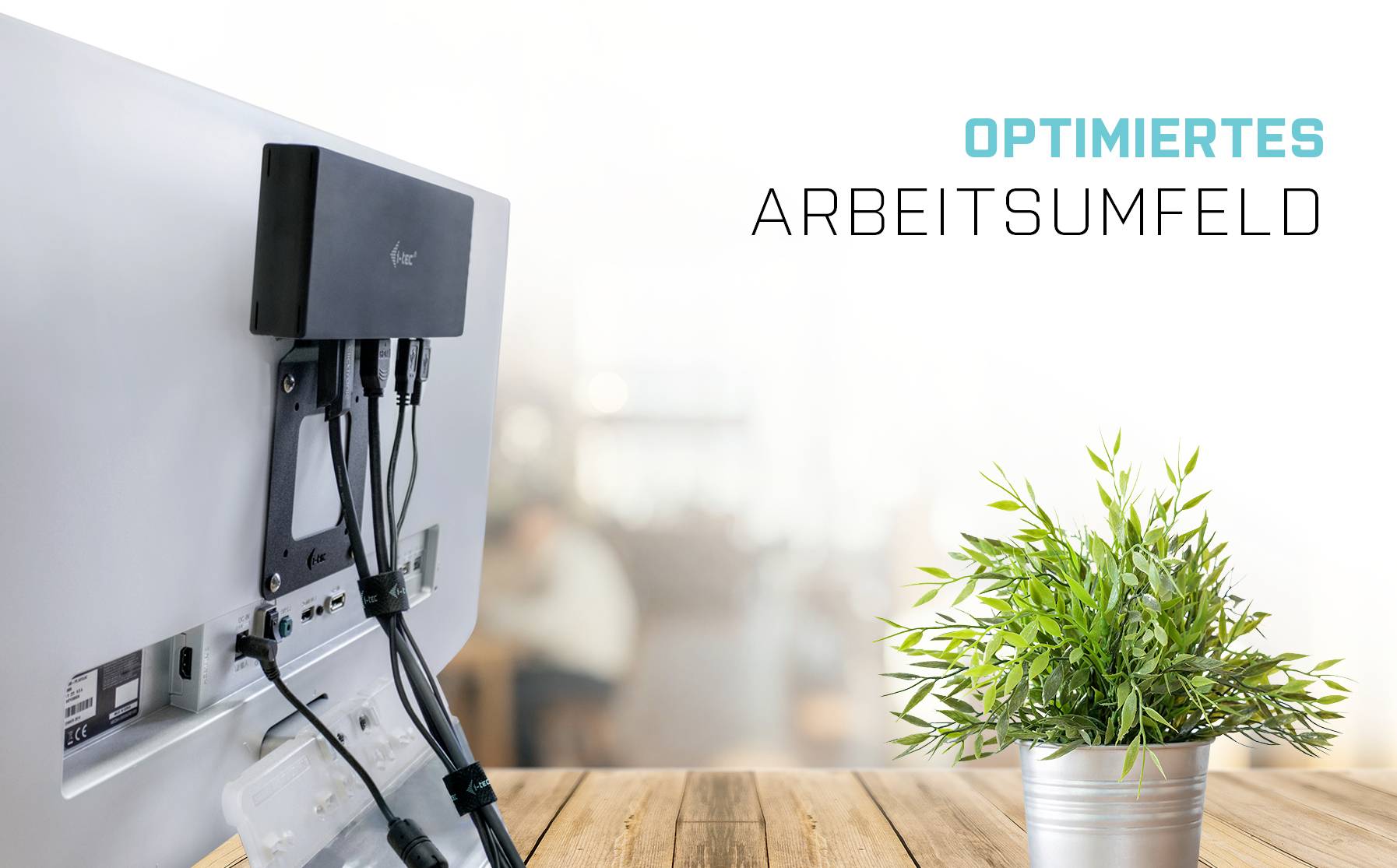

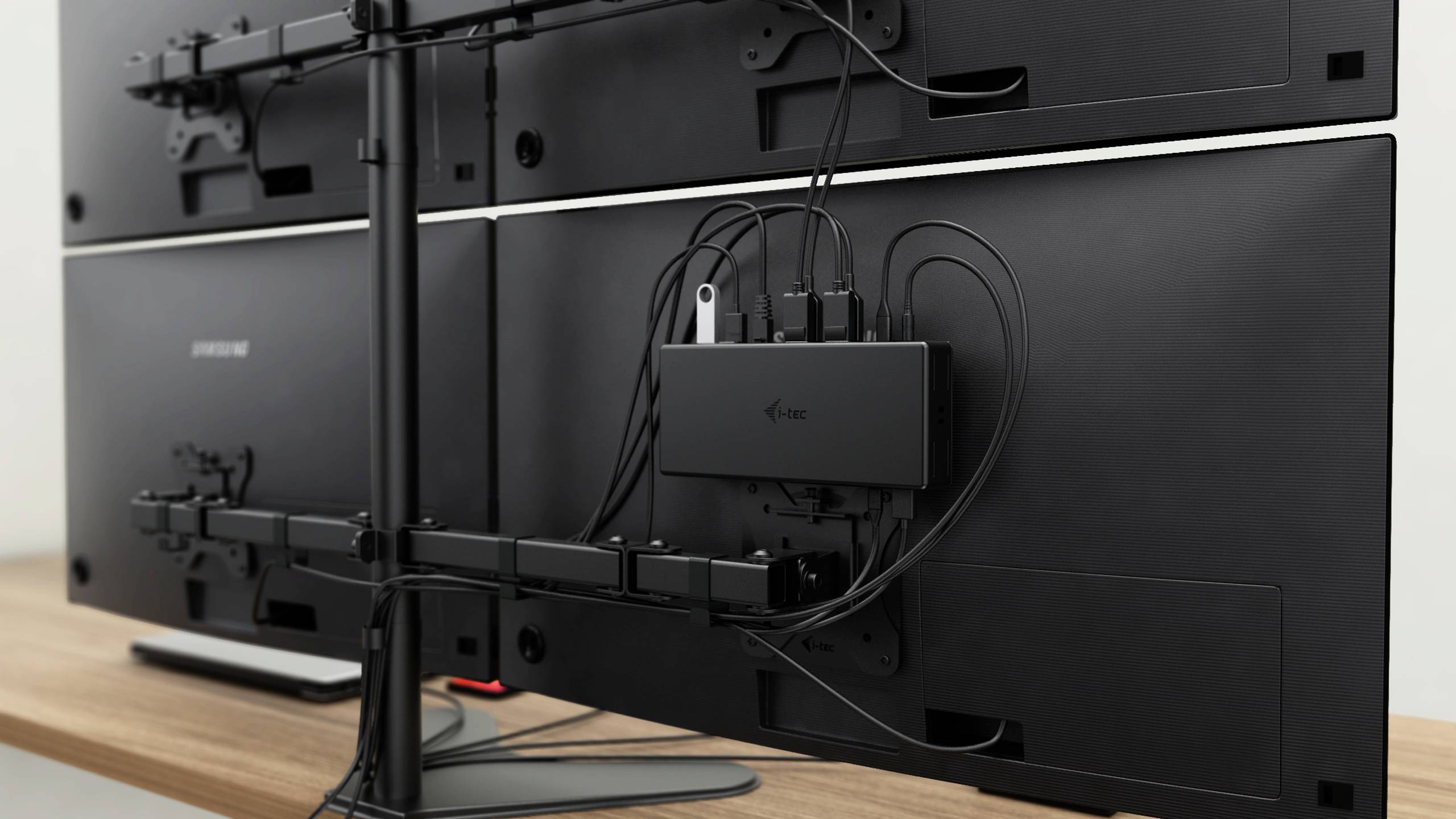

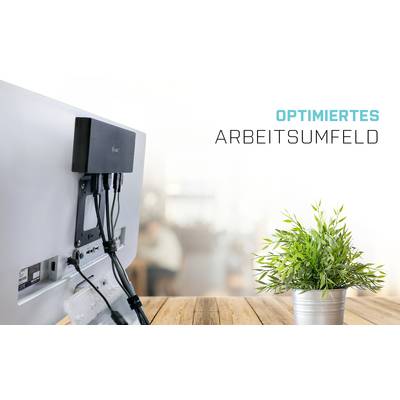

- The docking station supports the VESA mount for an intelligent vertical installation behind a screen with VESA support
- Supports Windows 10, MacOS, Android and Linux
