i-tec USB-C® docking station I-TEC USB-C Triple 4K DS Gen2 PD 100W
EAN:
Part number:
Item no:
Number
Total (€ 134.45 / piece)
€ 134.45
plus VAT.
Only 9 Piece(s) available

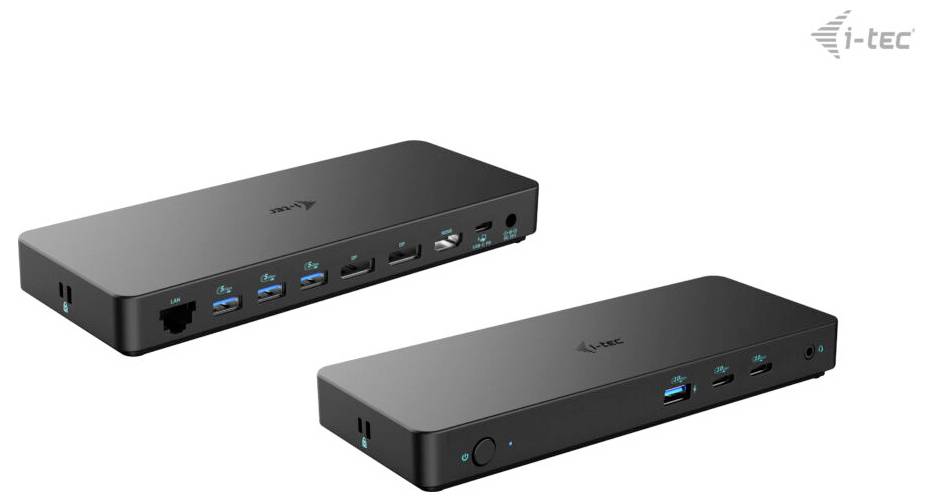

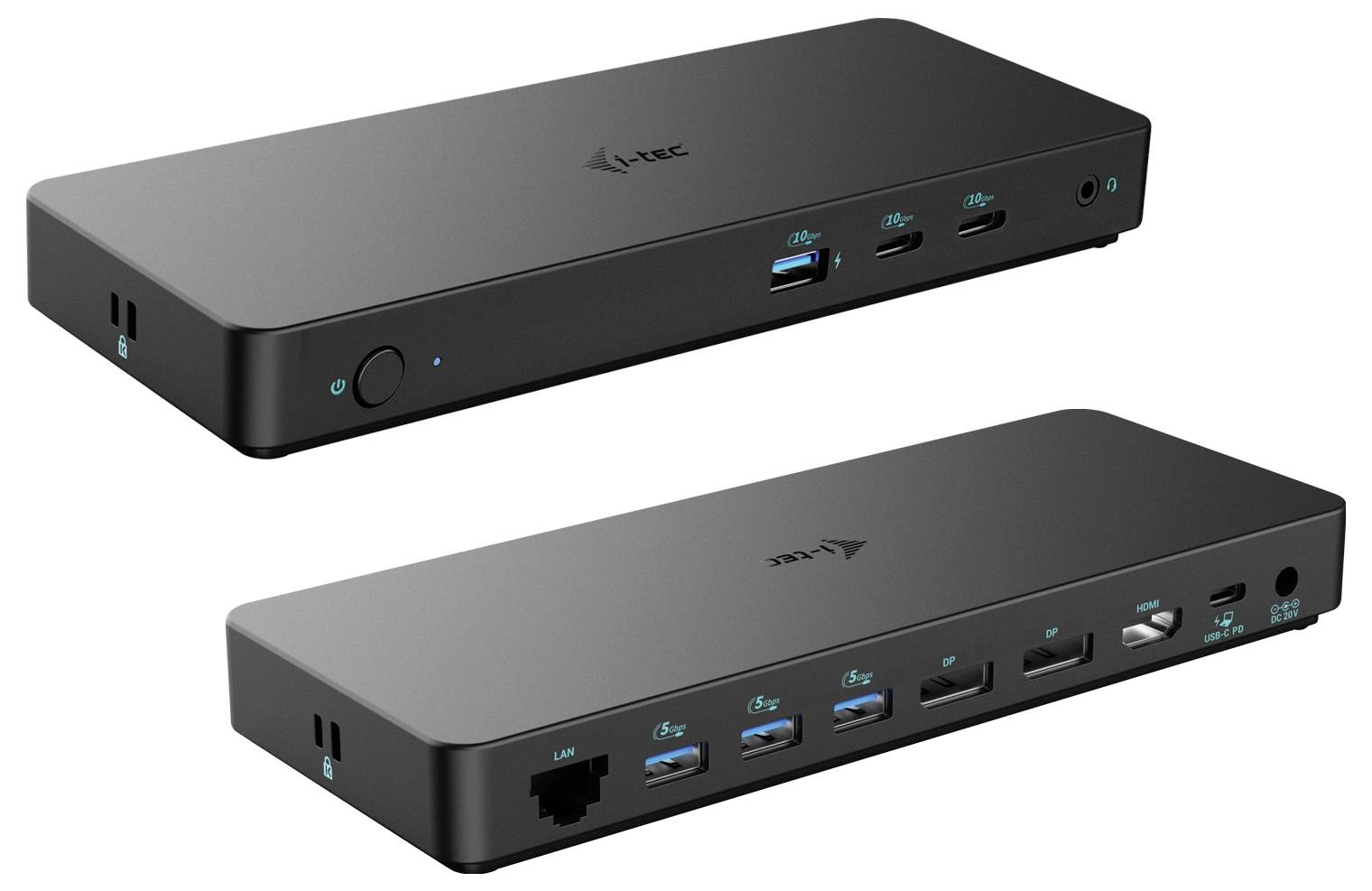

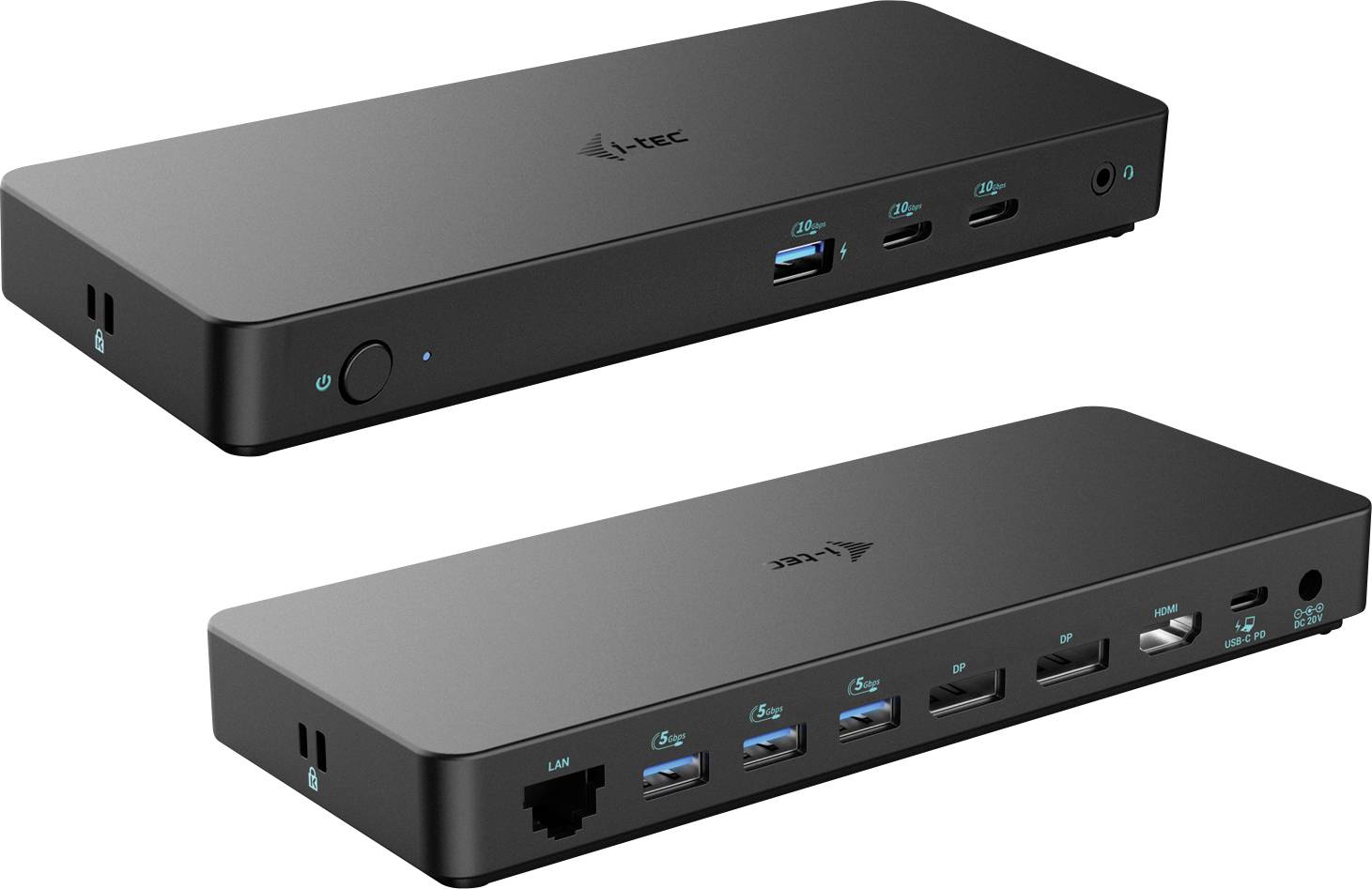

i-tec C31TRIPLEDOCKPDPRO2 USB-C® docking station
Highlights & Details
- Connection A (or inputs): USB-C® USB 3.2 (1st Gen)
- Connecton B (or outputs): USB 3.2 1st Gen port A (USB 3.0), LAN (10/100/1000 Mbps), HDMI®, Headphone jack, DisplayPort socket, Headphones/mic combo (3.5 mm jack), USB 3.2 2nd Gen port A (USB 3.1), USB 3.2 2nd Gen 2 port C (USB 3.1)
- No. of supported monitors:
- Maximum resolution: 3840 x 2160 p
- Key features:
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type-C
- USB 3.2 Gen 1 (3.1 Gen 1) Number of ports Type A: 3
- Transmission technology: Cable-bound
- Number of Ethernet LAN connections (RJ-45): 1
- DC connection (DC): Yes
- Number of HDMI connections: 1
- Number of DisplayPort connections: 2
- Combined headphone/microphone connection: Yes
- 3.5 mm headphone jack
- USB 3.2 Gen 2 (3.1 Gen 2) Number of ports Type A: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Number of C-type connectors: 2
- Compatible plug types: EU
- Output voltage 20 V
- Output current 6.5 A
- Width 212 mm
- Depth: 82 mm
- Height: 23 mm
- Weight: 366 g
- USB cable length: 1 m
- Product color: Black
- Data transfer rate 10 Gbps
- Number of display supported: 3
- Resolution (maximum, digital) 3840 x 2160 pixels
- Cable lock slot: Yes
- Slot type cable lock Kensington
- User manual: Yes
- AC mains adapter: Yes

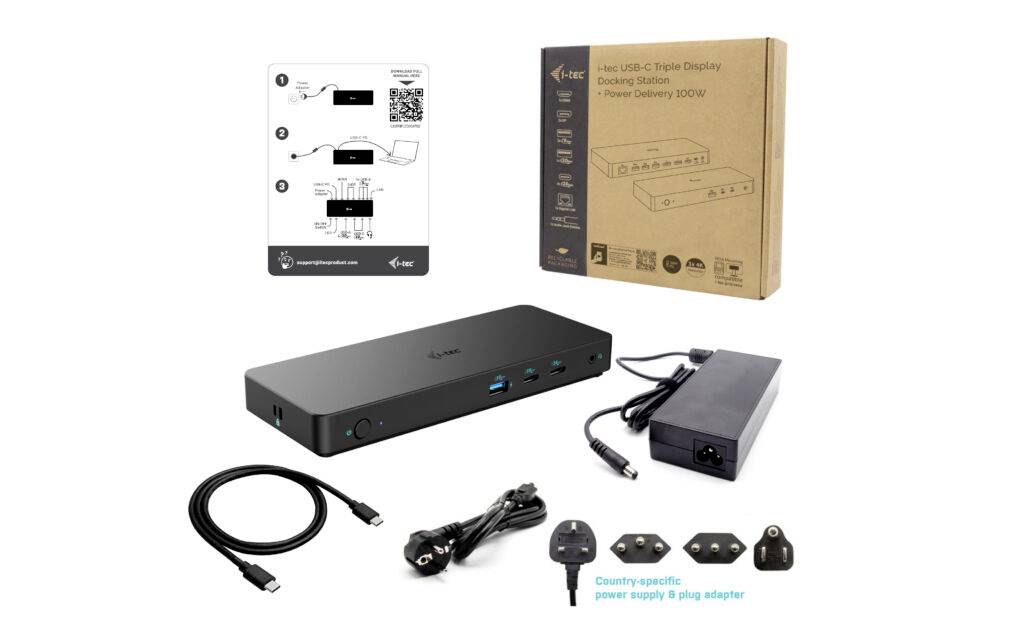

- Supplied cables: AC, USB type-C
- Maximum frame rate 120 Hz
- USB Power delivery: Yes
- USB power supply up to 100 W
- Ethernet LAN data transfer rates of 10,100,1000 Mbit/s.
- Ethernet/LAN: Yes
- Supports Windows operating systems: Yes
- Supports Mac operating systems: Yes
- Supported Linux operating systems: Yes
- Support for other operating systems: Android, ChromeOS
- VESA-bracket: Yes
- Product type
USB-C® docking station
- Type A
USB-C® USB 3.2 (1st Gen)
- Type B
USB 3.2 1st Gen port A (USB 3.0)
LAN (10/100/1000 Mbps)
HDMI®
Headphone jack
DisplayPort socket
Headphones/mic combo (3.5 mm jack)
USB 3.2 2nd Gen port A (USB 3.1)
USB 3.2 2nd Gen 2 port C (USB 3.1)
- Suitable for
Notebook
iPad
MacBook
- Resolution (max.)
3840 x 2160 p
- Cable length
1 m
- Factory colour
Black
- Width
212 mm
- Height
23 mm
- Depth
82 mm
- Weight
366 g
- Dim
(W x H x D) 212 x 23 x 82 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3290775 i-tec USB-C® docking station I-TEC USB-C Triple 4K DS Gen2 PD 100W
Description
A powerful new generation USB-C docking station that supports output to up to three external monitors with a high resolution of up to 4K. The docking station can be used with practically all notebooks, which are equipped with USB-C, USB4 and Thunderbolt" 3/4 ports, and supports all the current operating systems.

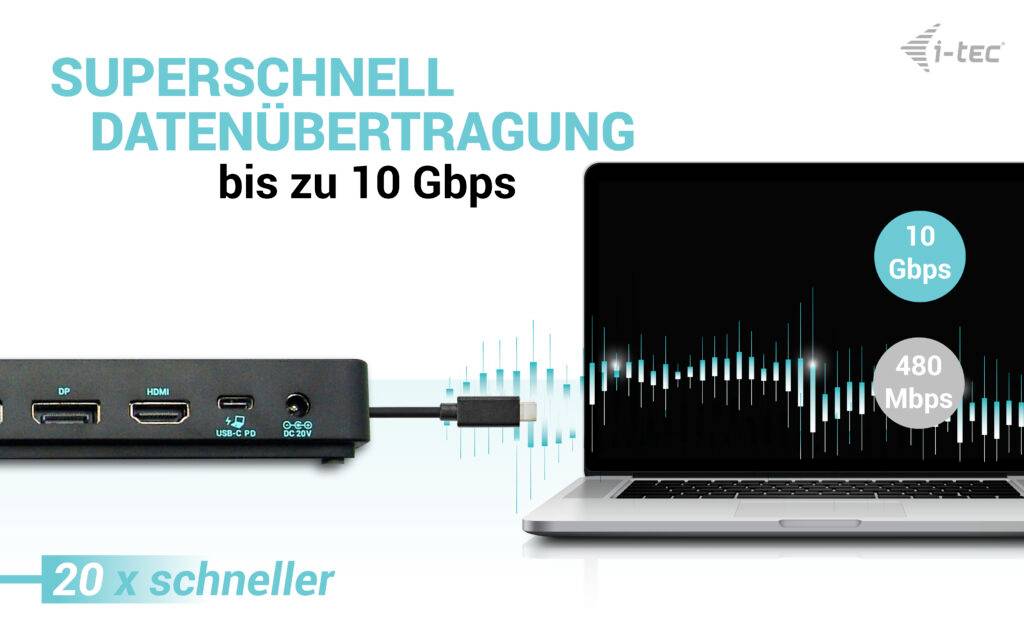

Numerous USB-connections (including those that support Gen 2 speeds of up to 10 Gbit/s), a reliable and fast connection to the corporate network thanks to the integrated LAN-ports and the support of the installation behind the monitor make this docking station the ideal companion for real professionals. Naturally, it also supports up to 100 W charging of your laptop or tablet
- Connection of 3 external monitors with a resolution of up to 4K*
- Power output: Up to 100 W.
- 2 DisplayPort and 1 HDMI port available

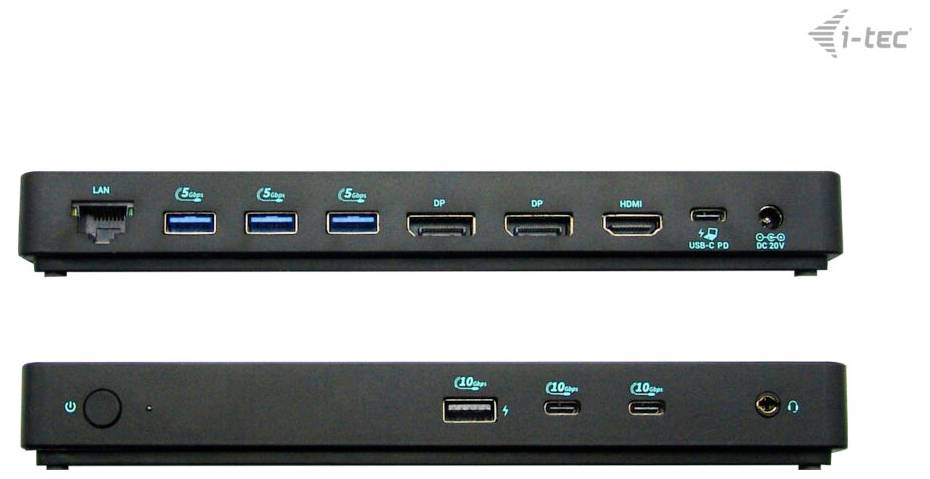

- 6 USB ports: 2x USB-C (10 Gb/s) and 4x USB-A (1x Gen 2 (10 Gb/s) with support for BC 1.2 rapid charging and 3x Gen 1 (5 Gb/s).
- Gigabit Ethernet RJ-45 provides reliable, robust and fast Internet connections with support for 10/100/1000 Mbit/sCombo socket for audio and microphone
- Kensington lock provides protection against theft, especially in shared office or public areas
- The power switch of the docking station allows maximum power savings
- The docking station supports a VESA mount for intelligent vertical installation behind a VESA-enabled monitor
- Supports Windows 10/11, MacOS, iPadOS, Android, Chrome OS and Linux (with the latest updates)
* MacOS does not support Multi Stream Transport (MST). If you connect two or more monitors to a MacOS station, the same image is displayed on all monitors.
This text is machine translated.
Numerous USB-connections (including those that support Gen 2 speeds of up to 10 Gbit/s), a reliable and fast connection to the corporate network thanks to the integrated LAN-ports and the support of the installation behind the monitor make this docking station the ideal companion for real professionals. Naturally, it also supports up to 100 W charging of your laptop or tablet
- Connection of 3 external monitors with a resolution of up to 4K*
- Power output: Up to 100 W.
- 2 DisplayPort and 1 HDMI port available
- 6 USB ports: 2x USB-C (10 Gb/s) and 4x USB-A (1x Gen 2 (10 Gb/s) with support for BC 1.2 rapid charging and 3x Gen 1 (5 Gb/s).
- Gigabit Ethernet RJ-45 provides reliable, robust and fast Internet connections with support for 10/100/1000 Mbit/sCombo socket for audio and microphone
- Kensington lock provides protection against theft, especially in shared office or public areas
- The power switch of the docking station allows maximum power savings
- The docking station supports a VESA mount for intelligent vertical installation behind a VESA-enabled monitor
- Supports Windows 10/11, MacOS, iPadOS, Android, Chrome OS and Linux (with the latest updates)
* MacOS does not support Multi Stream Transport (MST). If you connect two or more monitors to a MacOS station, the same image is displayed on all monitors.
This text is machine translated.
Features

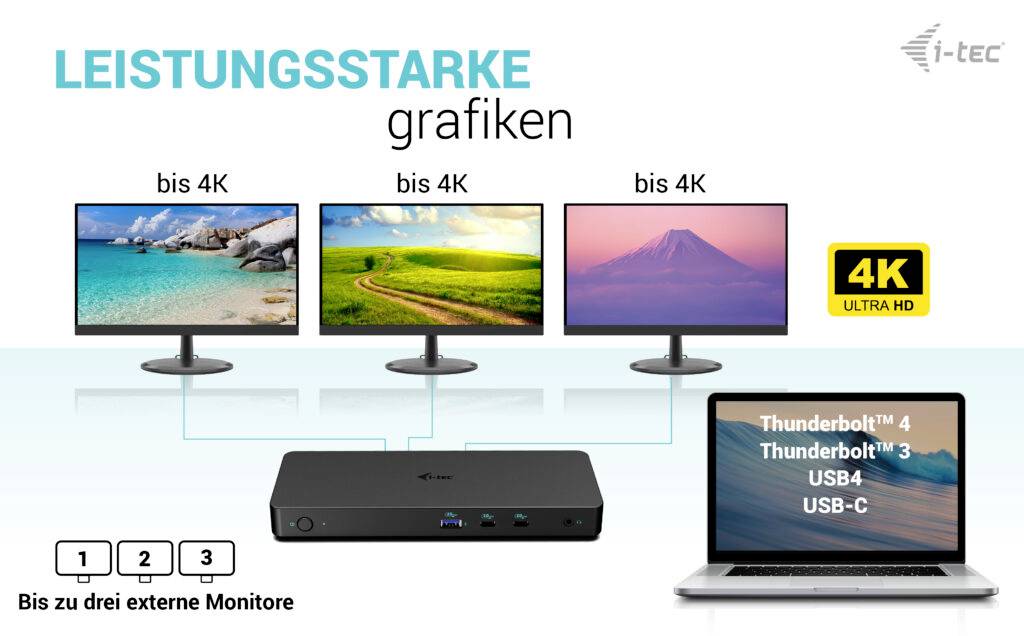

- Powerful docking station for up to three monitors simultaneously

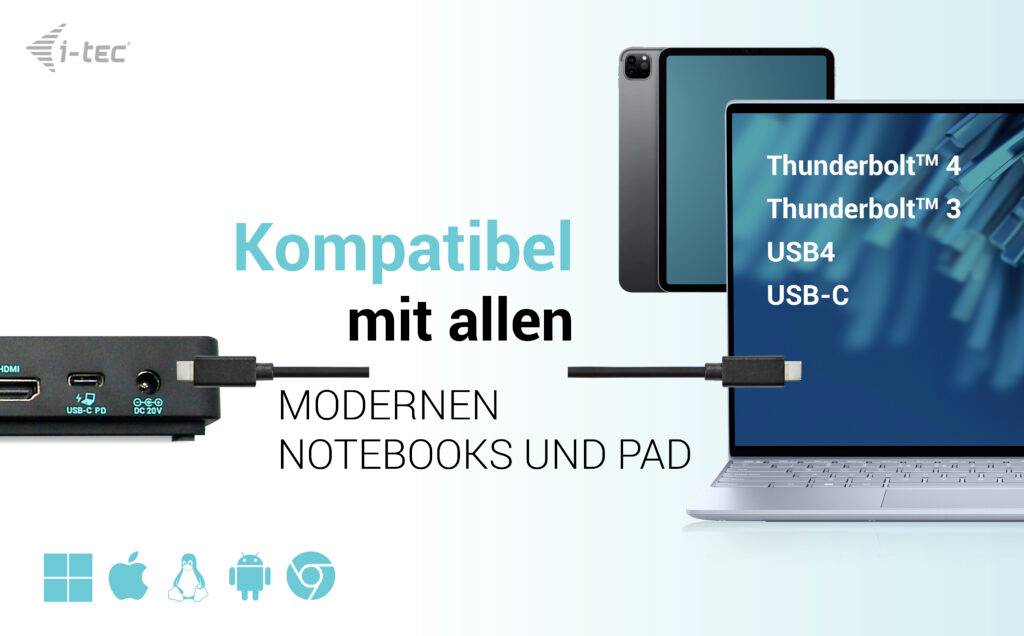

- The docking station is compatible with all modern laptops that are equipped with USB-C, USB4 or Thunderbolt™ 3/4 ports
- Supports high 4K resolution with up to 60 Hz refresh rate

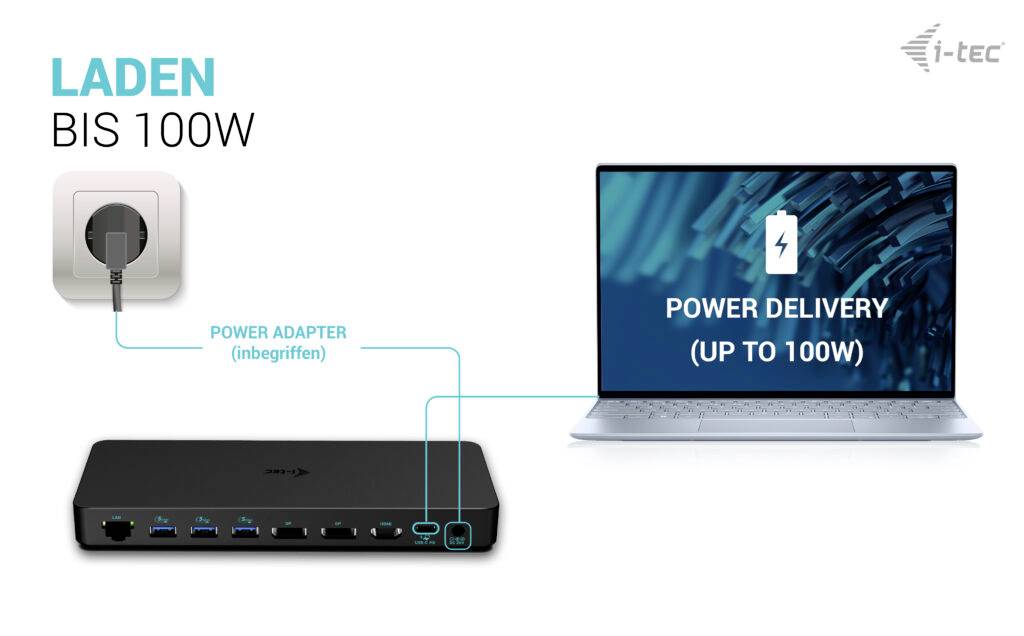

- The docking station supports up to 100 W power for a connected notebook or tablet

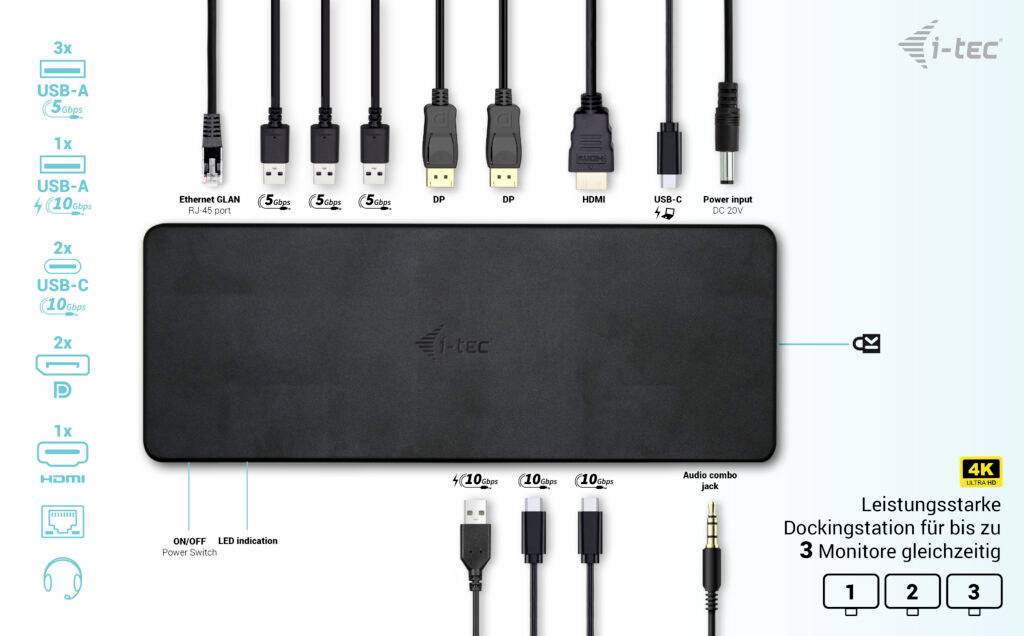

- 6x USB ports allow easy connection of USB devices and peripherals (2x USB-C and 4x USB-A)
- GLAN Ethernet supports network speeds of 10/100/1000 Mbps and provides robust high-speed Internet connectivity
- The combined 3.5 mm audio/microport allows you to connect integrated headphones with a microphone, for example

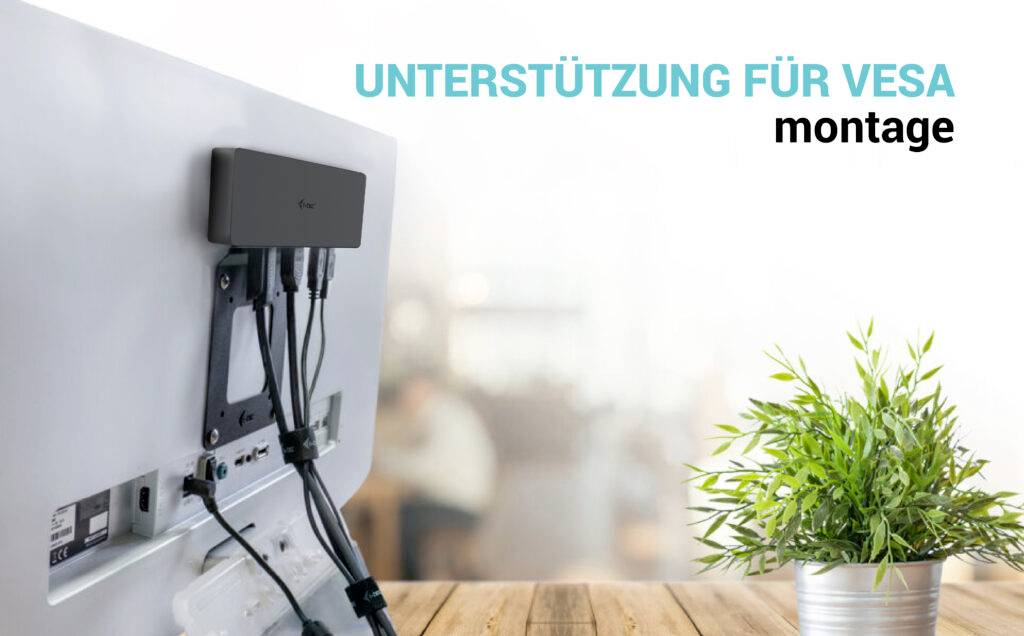

- The docking station is suitable for vertical mounting behind a monitor with VESA mounting support
- Optional MAC address cloning and automatic backup of the connected computer (when using the i-tec Docker Pro software)
- NOTE: MacOS does not support Multi Stream Transport (MST) technology. Connecting two or more monitors to a MacOS station causes all monitors to display the same image
