i-tec USB-C® docking station I-TEC USB3.0/USB-C/TB 3x4K Dock G2 PD100
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 151.25 / piece)
€ 151.25
plus VAT.

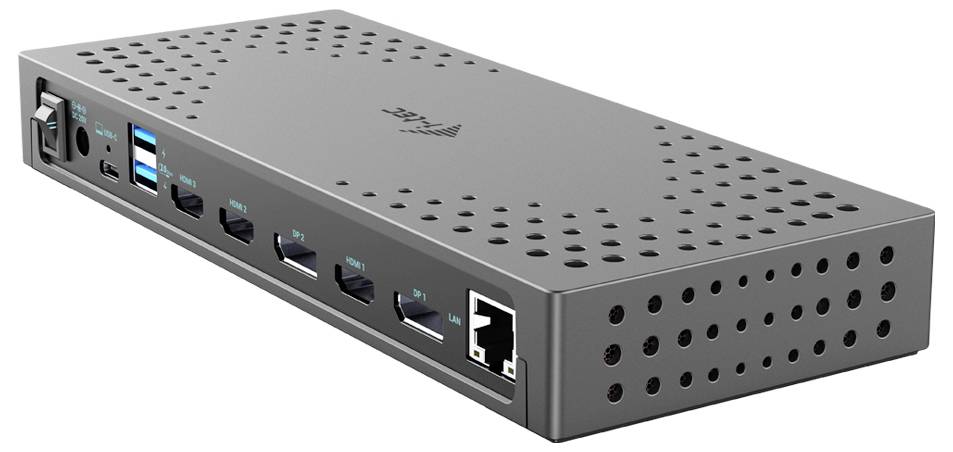

i-tec CATRIPLE4KDOCKPD2 USB-C® docking station
Highlights & Details
- Connection A (or inputs): USB-C® USB 3.2 (2nd Gen)

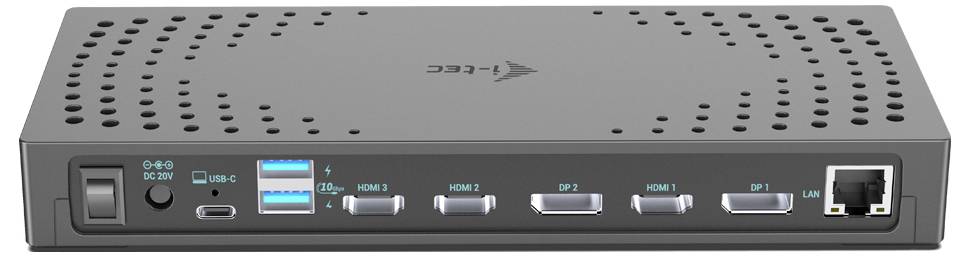

- Connecton B (or outputs): LAN (10/100/1000 Mbps), HDMI®, Headphone jack, DisplayPort socket, Headphones/mic combo (3.5 mm jack), USB 3.2 2nd Gen port A (USB 3.1), USB 3.2 2nd Gen 2 port C (USB 3.1)
- No. of supported monitors:
- Maximum resolution:
- Key features:
Technical specifications
- Host interface USB 3.2 1st Gen 2 (3.1 Gen 2) Type-C
- Transmission technology: Cable-bound
- Number of Ethernet LAN connections (RJ-45): 1
- DC connection (DC): Yes
- Number of HDMI connections: 3
- Number of DisplayPort connections: 2
- Combined headphone/microphone connection: Yes
- 3.5 mm headphone jack
- USB 3.2 Gen 2 (3.1 Gen 2) Number of ports Type A: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Number of C-type connectors: 2
- On/off switch: Yes
- Compatible plug types: EU
- Output voltage 20 V
- Output current: 8 A
- Width 223 mm
- Depth: 92 mm
- Height: 30 mm
- Weight: 365 g
- USB cable length: 1 m
- Product color: Grey
- Data transfer rate 10 Gbps
- Number of display supported: 3
- Cable lock slot: Yes
- Slot type cable lock Kensington

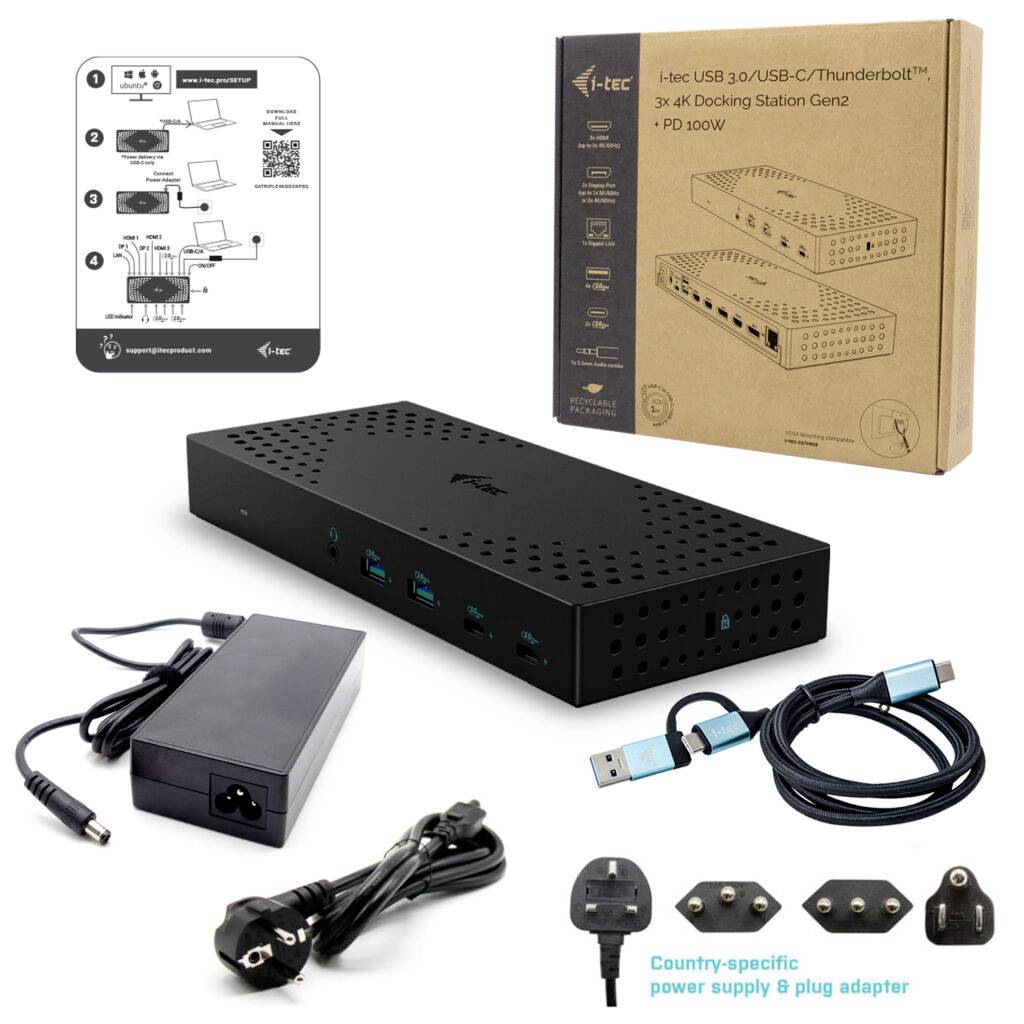

- AC mains adapter: Yes

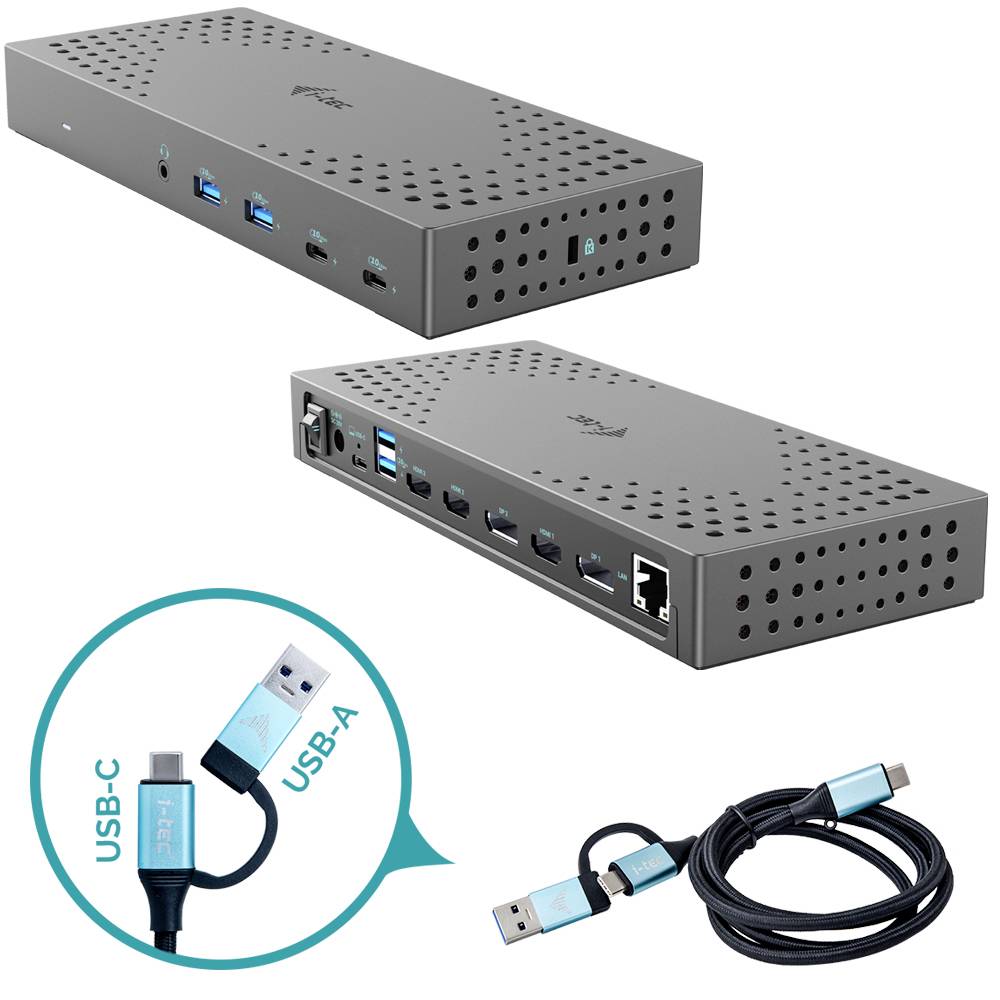

- Supplied cable USB
- Quick start overview: Yes
- LED indicators: Yes
- Maximum frame rate 60 Hz
- USB Power delivery: Yes
- USB power supply up to 100 W
- Ethernet LAN data transfer rates of 10,100,1000 Mbit/s.
- Ethernet/LAN: Yes
- Supports Windows operating systems: Yes
- Supports Mac operating systems: Yes
- Supported Linux operating systems: Yes
- Support for other operating systems: Android, ChromeOS
- VESA-bracket: Yes
- Product type
USB-C® docking station
- Type A
USB-C® USB 3.2 (2nd Gen)
- Type B
LAN (10/100/1000 Mbps)
HDMI®
Headphone jack
DisplayPort socket
Headphones/mic combo (3.5 mm jack)
USB 3.2 2nd Gen port A (USB 3.1)
USB 3.2 2nd Gen 2 port C (USB 3.1)
- Suitable for
Notebook
Tablet
iPad
MacBook
- Cable length
1 m
- Factory colour
Grey
- Width
223 mm
- Height
30 mm
- Depth
92 mm
- Weight
365 g
- Dim
(W x H x D) 223 x 30 x 92 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3290767 i-tec USB-C® docking station I-TEC USB3.0/USB-C/TB 3x4K Dock G2 PD100
User & Safety Instructions
User & Safety Instructions 3290767 i-tec USB-C® docking station I-TEC USB3.0/USB-C/TB 3x4K Dock G2 PD100
Description

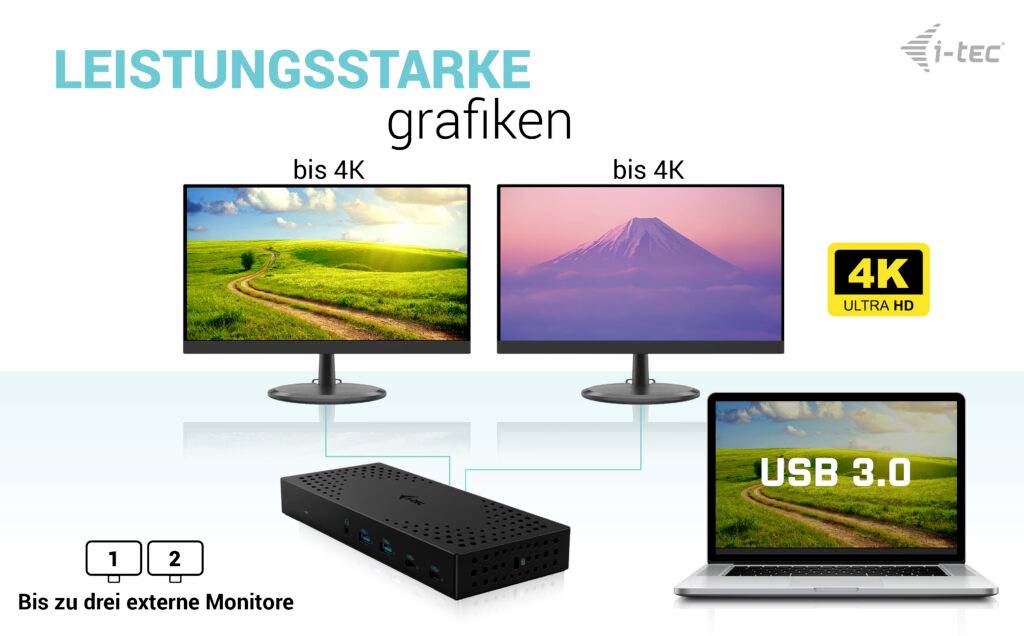

A powerful Gen 2 professional docking station that supports output to up to three external monitors with a high resolution of up to 4K. The docking station can be used with practically all notebooks, as it supports the connection to all common ports: USB 3.0, USB-C und Thunderbolt" 3/4, whereby all the most common operating systems are supported. However, connection to three monitors is only possible if the notebook has a Thunderbolt" 3/4 port or a USB-C port that supports video transmission (USB-C DP Alt Mode). When connected to a laptop with USB 3.0 connection only two monitors are supported.
Numerous USB-connections (all support Gen 2 speeds of up to 10 Gbit/s), a reliable and fast connection to the corporate network thanks to the integrated LAN-connection and the support for the installation behind the monitor make this docking station the ideal companion for real professionals. Of course, it supports up to 100 W charging of your laptop or tablet

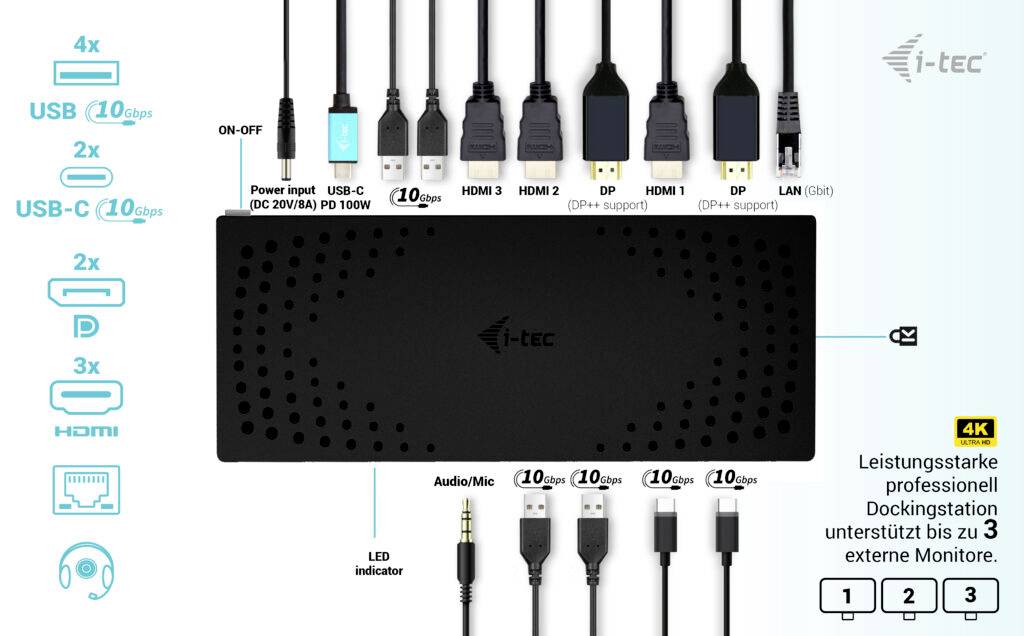

- Connection of 3 external monitors with a resolution of up to 4K*
- Power delivery: Up to 100 W.
- 2 DisplayPort and 3 HDMI connections available*

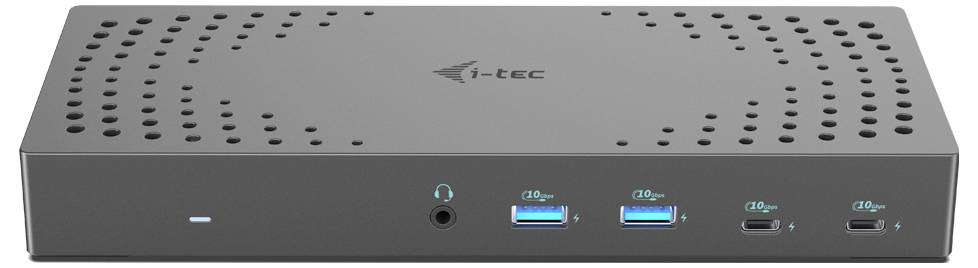

- 4x USB 3.2 Gen 2 (10 Gbps) and 2x USB-C Gen 2 (10 Gbps) enable easy connection of your USB devices and peripherals
- Gigabit Ethernet RJ-45 provides reliable, robust and fast Internet connections with support for 10/100/1000 Mbps

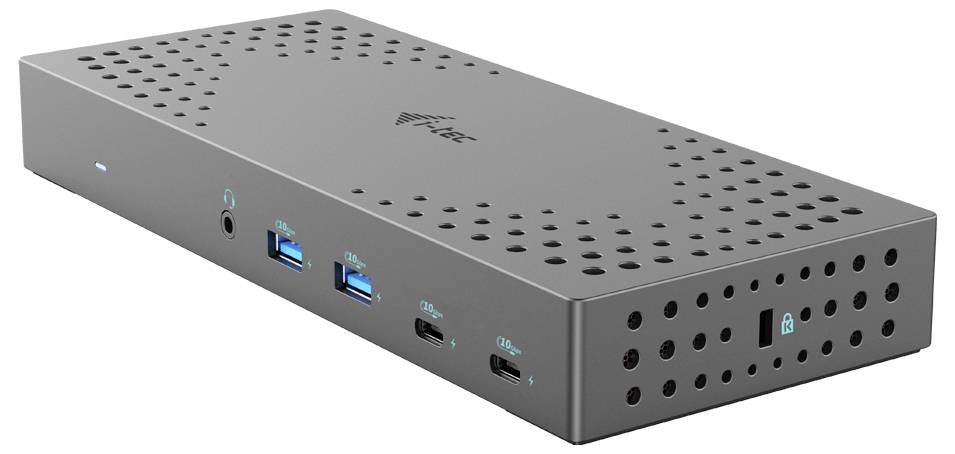

- Combo socket for audio and microphone
- Kensington lock provides protection against theft, especially in shared office or public areas
- The power switch of the docking station allows maximum power savings

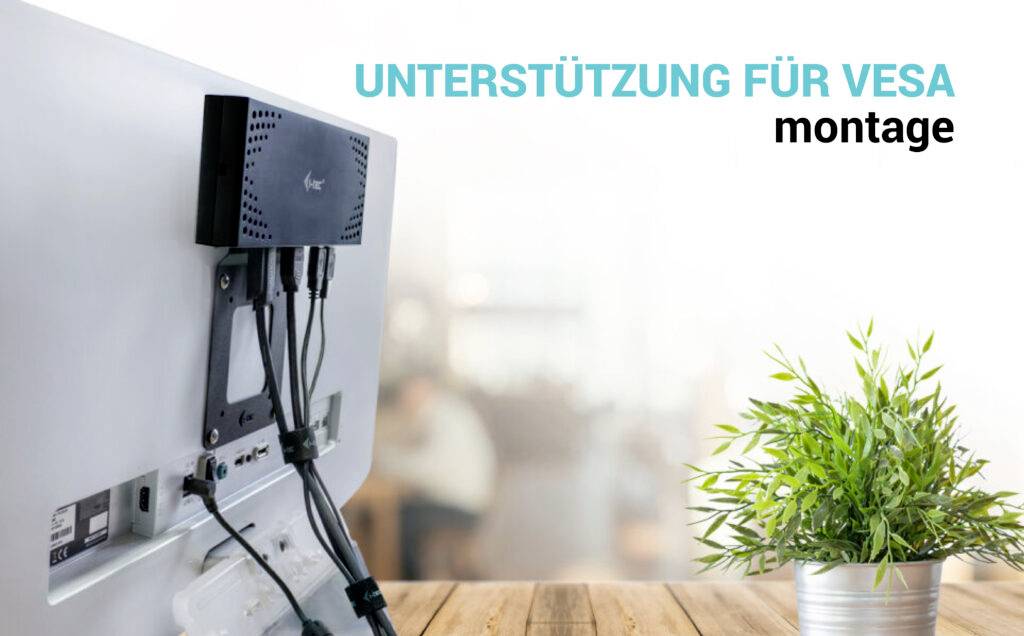

- The docking station supports a VESA mount for intelligent vertical installation behind a VESA-enabled monitor
- Supports Windows 10/11, MacOS, Android 5 or higher, Chrome OS R51 or higher, Linux Ubuntu
*The HDMI 3 port only works when connected to a laptop with Thunderbolt 3/4 port or a USB-C port that supports video transmission (so-called USB-C DP Alt mode)
If the docking station is connected via a USB 3.0 port, charging is not supported
This text is machine translated.
Numerous USB-connections (all support Gen 2 speeds of up to 10 Gbit/s), a reliable and fast connection to the corporate network thanks to the integrated LAN-connection and the support for the installation behind the monitor make this docking station the ideal companion for real professionals. Of course, it supports up to 100 W charging of your laptop or tablet
- Connection of 3 external monitors with a resolution of up to 4K*
- Power delivery: Up to 100 W.
- 2 DisplayPort and 3 HDMI connections available*
- 4x USB 3.2 Gen 2 (10 Gbps) and 2x USB-C Gen 2 (10 Gbps) enable easy connection of your USB devices and peripherals
- Gigabit Ethernet RJ-45 provides reliable, robust and fast Internet connections with support for 10/100/1000 Mbps
- Combo socket for audio and microphone
- Kensington lock provides protection against theft, especially in shared office or public areas
- The power switch of the docking station allows maximum power savings
- The docking station supports a VESA mount for intelligent vertical installation behind a VESA-enabled monitor
- Supports Windows 10/11, MacOS, Android 5 or higher, Chrome OS R51 or higher, Linux Ubuntu
*The HDMI 3 port only works when connected to a laptop with Thunderbolt 3/4 port or a USB-C port that supports video transmission (so-called USB-C DP Alt mode)
If the docking station is connected via a USB 3.0 port, charging is not supported
This text is machine translated.
Features

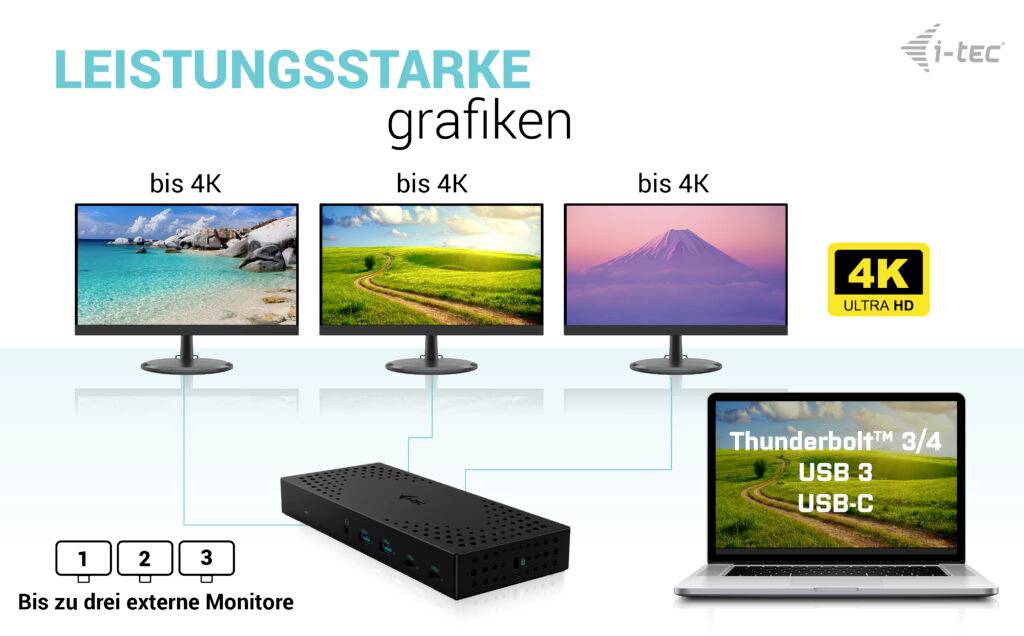

- Powerful docking station for up to three monitors simultaneously
- The Dock is compatible with all modern notebooks (connection via USB 3.0, USB-C or Thunderbolt™ 3/4 ports)
- Supports high 4K resolution with frame rates up to 60 Hz

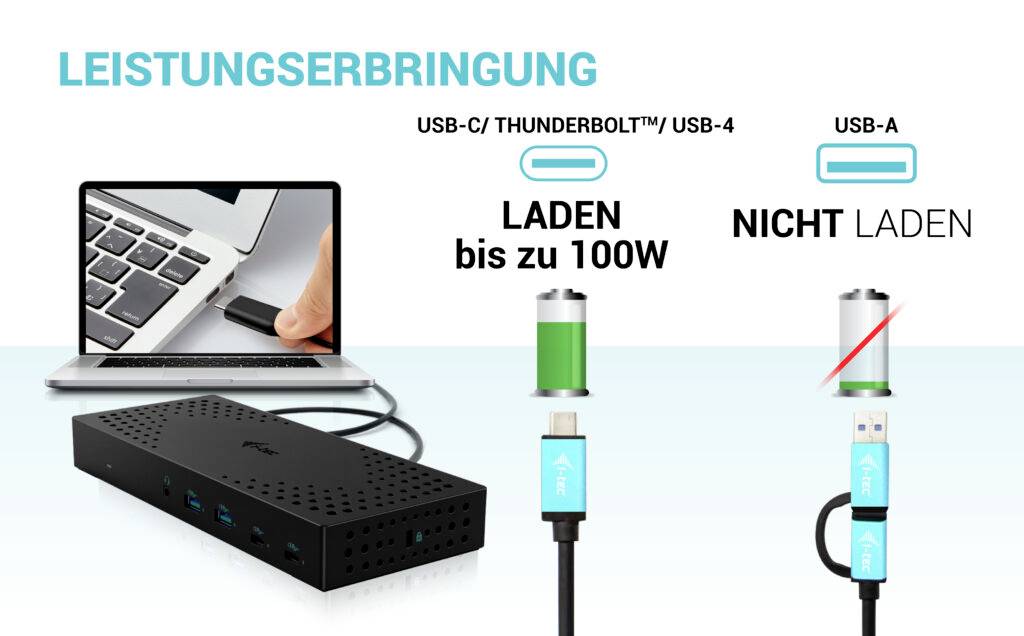

- The docking station supports a power of up to 100 W for a connected laptop or tablet (when connected to a corresponding USB-C or ThunderboltTM port. When connected to a USB 3.0 port, the notebook cannot be charged)
- 4x USB 3.2 Gen 2 (10 Gbit/s) and 2x USB-C Gen (10 Gbit/s) enable easy connection of your USB devices and peripherals
- GLAN-Ethernet supports network speeds of 10/100/1000 Mbit/s and offers a robust and fast Internet connection
- You can connect integrated headphones with a microphone, for example, to the combined 3.5 mm audio/microphone connection
- The dock is compatible for vertical mounting behind a monitor with VESA mounting support
- Optional MAC address cloning and automatic backup of the connected computer (using the i-tec Docker Pro software).i-tec Docker Pro software)
