i-tec USB-C® docking station USB 3.0 Dual HDMI
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 96.63 / piece)
€ 96.63
plus VAT.

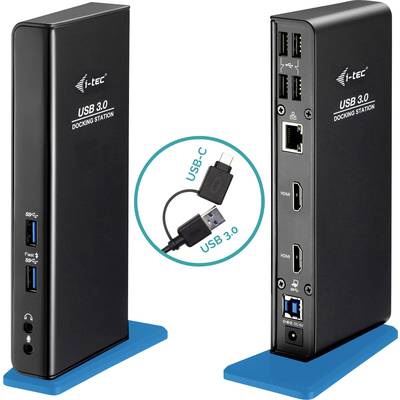

i-tec U3DUALHDMIDOCK USB-C® docking station
Highlights & Details
- Connection A (or inputs): USB 3.2 1st Gen port A (USB 3.0)
- Connecton B (or outputs): USB 3.2 1st Gen port A (USB 3.0), LAN (10/100/1000 Mbps), USB 2.0, HDMI®, Headphone jack, Microphone socket, USB 3.2 1st Gen port B (USB 3.0)
- No. of supported monitors:
- Maximum resolution:
- Key features:
Technical specifications
- Host interface USB 3.2 1st Gen 1 (3.1 Gen 1) Type A
- USB 3.2 Gen 1 (3.1 Gen 1) Number of ports Type A: 2
- Transmission technology: Cable-bound
- Number of Ethernet LAN connections (RJ-45): 1
- Number of USB 2.0 connections 4
- DC connection (DC): Yes
- Number of HDMI connections: 2
- Headphone outputs: 1
- 3.5 mm headphone jack
- Microphone input: Yes
- No. of USB 3.2 1 1st Gen (3.1 1st Gen) 1 1 type B connections
- Energy source: AC
- Compatible plug types: EU
- AC input voltage 100-240 V
- Output voltage 5 V
- Output current: 4 A
- Power cable length 1.75 m.
- AC input frequency 50 - 60 Hz
- Width 71 mm
- Depth: 31 mm
- Height: 181 mm
- Weight: 218 g
- Product color: Black
- User manual: Yes
- AC mains adapter: Yes
- Supplied cable USB
- Stands included: Yes
- Ethernet LAN data transfer rates of 10,100,1000 Mbit/s.
- Ethernet/LAN: Yes
- Supports Windows operating systems: Yes
- Supports Mac operating systems: Yes
- Supported Linux operating systems: Yes
- Support for other operating systems: Android
- Product type
USB-C® docking station
- Type A
USB 3.2 1st Gen port A (USB 3.0)
- Type B
USB 3.2 1st Gen port A (USB 3.0)
LAN (10/100/1000 Mbps)
USB 2.0
HDMI®
Headphone jack
Microphone socket
USB 3.2 1st Gen port B (USB 3.0)
- Factory colour
Black
- Width
71 mm
- Height
181 mm
- Depth
31 mm
- Weight
218 g
- Dim
(W x H x D) 71 x 181 x 31 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3290749 i-tec USB-C® docking station USB 3.0 Dual HDMI
User & Safety Instructions
User & Safety Instructions 3290749 i-tec USB-C® docking station USB 3.0 Dual HDMI
Description
Universal docking station, which can be used with any notebook, as it can be connected to any USB port (USB 3.0, USB-D, Thunderbolt 3 or even to an older USB 2.0 port).
The station supports up to 2 external screens, which can be connected via HDMI ports. 6x USB port, reliable and fast Internet connection due to built-in LAN port and support for audio input and output.
The docking station can be installed vertically (saves space on the desk) or horizontally – in this case it can also function as a convenient notebook stand.
This text is machine translated.
The station supports up to 2 external screens, which can be connected via HDMI ports. 6x USB port, reliable and fast Internet connection due to built-in LAN port and support for audio input and output.
The docking station can be installed vertically (saves space on the desk) or horizontally – in this case it can also function as a convenient notebook stand.
This text is machine translated.
Features
- Connect up to two external screens
- Two HDMI ports are available
- 2x USB 3.0 (one with quick charge support) for fast data transfer
- 4x USB 2.0 enables easy connection of your USB devices and peripherals
- Gigabit Ethernet RJ-45 provides a reliable, robust high-speed Internet connection with support for speeds of 10/100/1000 Mbps
- Separate audio output and audio input (microphone)
- Supports Windows 10, MacOS X, Android, ChromeOS and Linux
