Highlights & Details

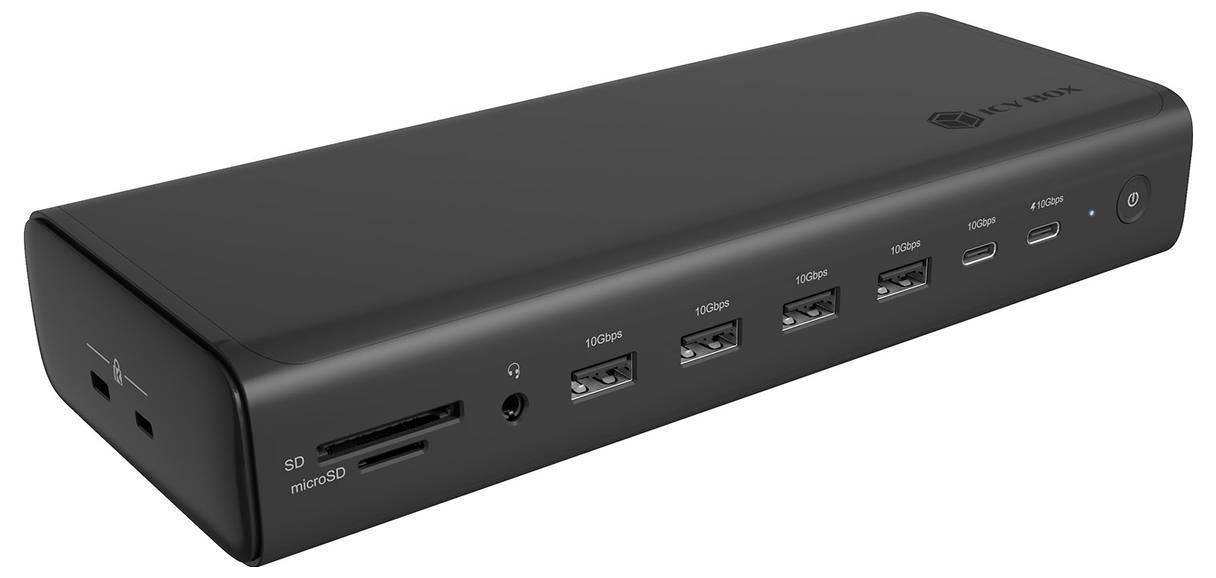

ICY BOX 61181 Laptop docking station
- Connection A (or inputs): USB-C® USB 3.2 (2nd Gen)
- Connecton B (or outputs): HDMI®, HDMI®, DisplayPort, DisplayPort, 4x USB-C®, USB-C® socket (Power Delivery), 4x USB-A, RJ45, Headphones/mic combo (3.5 mm jack), SD, microSD
- No. of supported monitors: 6
- Maximum resolution: 7680 x 4320 p
- Key features: USB-C® powered
Technical specifications
- Product type
Laptop docking station
- Type A
USB-C® USB 3.2 (2nd Gen)
- Type B
HDMI®
HDMI®
DisplayPort
DisplayPort
4x USB-C®
USB-C® socket (Power Delivery)
4x USB-A
RJ45
Headphones/mic combo (3.5 mm jack)
SD
Show more
- Suitable for
PC
Notebook
Tablet
MacBook
iPad
Smartphone
Universal
- Supported monitors
6
- Resolution (max.)
7680 x 4320 p
- Factory colour
Black
- Features
USB-C® powered
- Weight
0
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3778974 ICY BOX Laptop docking station IB-DK7401-CU31 USB-C® powered
User & Safety Instructions
User & Safety Instructions 3778974 ICY BOX Laptop docking station IB-DK7401-CU31 USB-C® powered
Description
17-in-1 docking station
This 17-port docking station is everything WAS you need to run your entire setup. It brings comfort on your desk by charging, screen output, data transfer, network, Audio and storage access in one device. Say goodbye to the cable mess and enjoy a clean, networked workplace where everything is all in one place.
Display with six screens
This docking station supports up to six external monitors and provides high-quality 4K@60Hz display with uniform picture refresh rates. For an optimum viewing experience it also supports 8K-resolution on a Dual-display via the DP-connection. Thanks to the support for high resolutions each detail remains sharp, WAS makes it Ideal for professionals, who need a seamless multi-screen experience.
USB type-A connectivity
Fitted with four USB Type-A 3.2 Gen 2 ports, this docking station provides data transfer speeds of up to 10 Gbit/s. Two ports also support BC 1.2 quick charge, so you can power your devices while transferring files or operating devices such as keyboards, mice, or enclosures.
Power Delivery 3.1
With our docking station, keep your notebook always supplied with power and ready, because it offers Power delivery (PD) with a power of up to 140 W. Thanks to this high charging power, your device remains charged even in demanding tasks, so that no additional power supplies are needed.
Additional comfort
Stay connected and organized with a 2.5 Gbps Ethernet port, a 3.5 mm combo audio jack for your headset, and SD/MicroSD slots for fast media access. These frequently used functions are integrated directly into the docking station, so that you do not need any additional dongles or separate devices on your desk.
This text is machine translated.
Features
- 7-in-1 notebook docking station, DisplayLink® DL7400 chip, 6x video
- Host: 1x USB-C port 3.2 1st Gen 2 (10 Gbps), with C to C, C to A cable
- Compatible with laptops with USB-A, USB-C, USB4 or Thunderbolt ¾ Host
- Docking Station Technology : DisplayLink + USB-C DP Alt mode + USB-C PD
- Power delivery (upstream for charging the laptop) PD 3.1, 140 W.

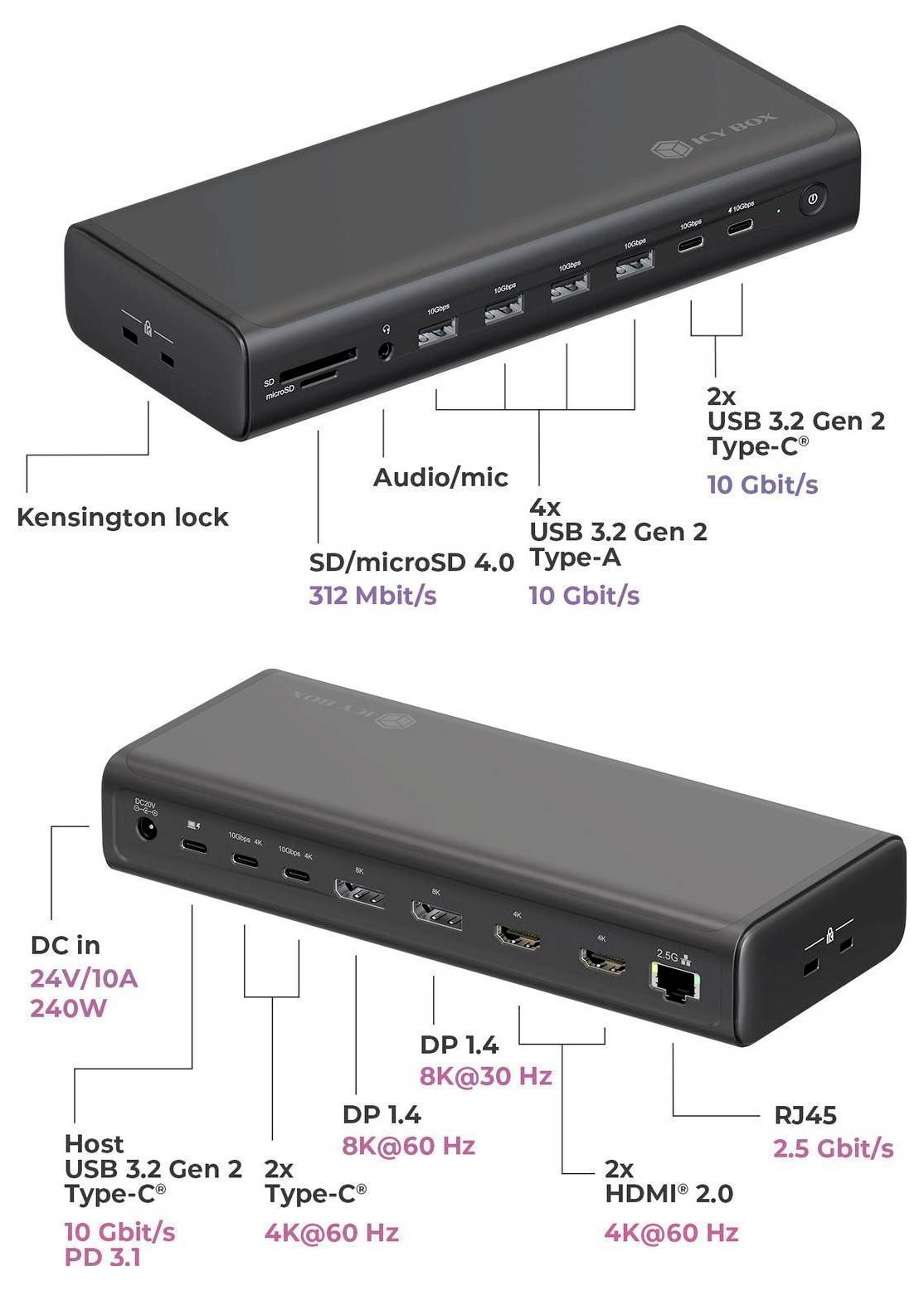

- Extensions:

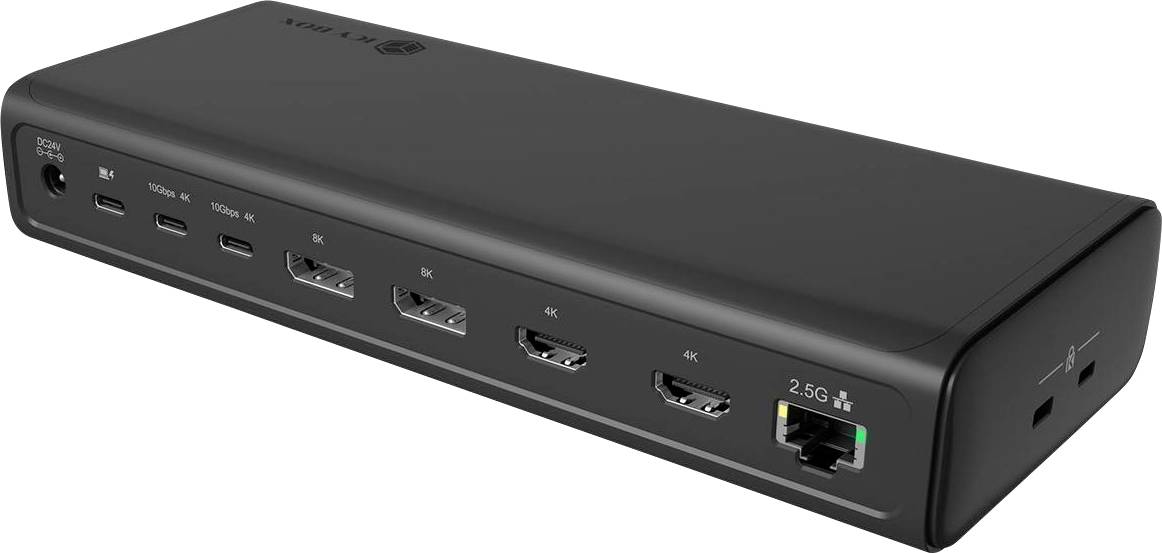

- Video Ports: 2x HDMI, 2x DP, 2x USB-C MDP
- Resolutions:
- 1 monitor - 1x DP1 - 8K@60Hz or 4K@144Hz
- 1 monitor - 1x DP2 - 8K@/30Hz or 4K@120Hz
- 1 monitor - 1x HDMI - 4K@60Hz
- 1 monitor - 1x USB-C** 4K@60Hz
- 6 monitors - 2x DP + 2x HDMI + 2x USB-C ** - 6x 4K@60Hz
- 2x USB-A 3.2 Gen 2 (10 Gbps) supports fast charge (BC 1.2)
- 2x USB-A 3.2 1st Gen 2 (10 Gbps)
- 1x USB-C 3.2 Gen 2 (10 Gbps) supports Power delivery up to 30 W.
- 1x USB-C 3.2 Gen 2 (10 Gbps) supports fast charge (BC 1.2)
- 1x Ethernet RJ-45 2.5 Gbps port
- 1x 3.5 mm combo audio connector
- 1x SD/microSD slot
- 1x power supply (DC 24V/10A, 240 W)
- LED indicator for Power on
- ON/OFF Current switch
- Kensington lock
- Supports VESA mounting
- MAC Address cloning: Yes
- OS: Windows 10/11, MacOS 11 or higher, Android 5 or higher, Chrome OS R51 or higher, Linux Ubuntu
- Simple driver installation (Windows, MacOS, Ubuntu, Android (external link)
- WOL S1, S2, S3
- Accessories in the packaging
- 1X POWER SUPPLY (AC 100-240V, DC 24V/10A, 240W)
- 1x power cable type E+F CEE 7/7 to C13 , 0.75 mm², 0.75 m
- 1x USB-C to USB-C cable (100 cm)
- 1x USB-C to USB A cable (100 cm)
Scope of delivery
- 1X IB-DK7401-CU31
- 1x USB-Type-C®-to-Type C® cable (100 cm)
- 1x USB-Type C to Type A cable (100 cm)
- 1x 240-W power supply
- 1x power cord (180 cm)
- 1x user manual
Hints
Device with a free USB Type-A or Type-C ® connection
And a free USB Type-C ® port with Power
Delivery support.
A USB Type-A host is used to load
Notebooks not supported. A charging power of 140 W.
Is supported only if your device is the Power delivery PD
3.1 loading protocol supported. With the PD 3.0 load protocol
Only 100 W are achieved.
System requirements
- Windows®
- MacOS ®
- Android
- Chrome OS™
- Linux
