Name: ICY BOX USB4® docking station IB-DK408-C41 Compatible with (brand): Universal Charging function, Supports 8K@30 Hz (1x)
Brand: ICY BOX
SKU: 2992813
Availability: SoldOut

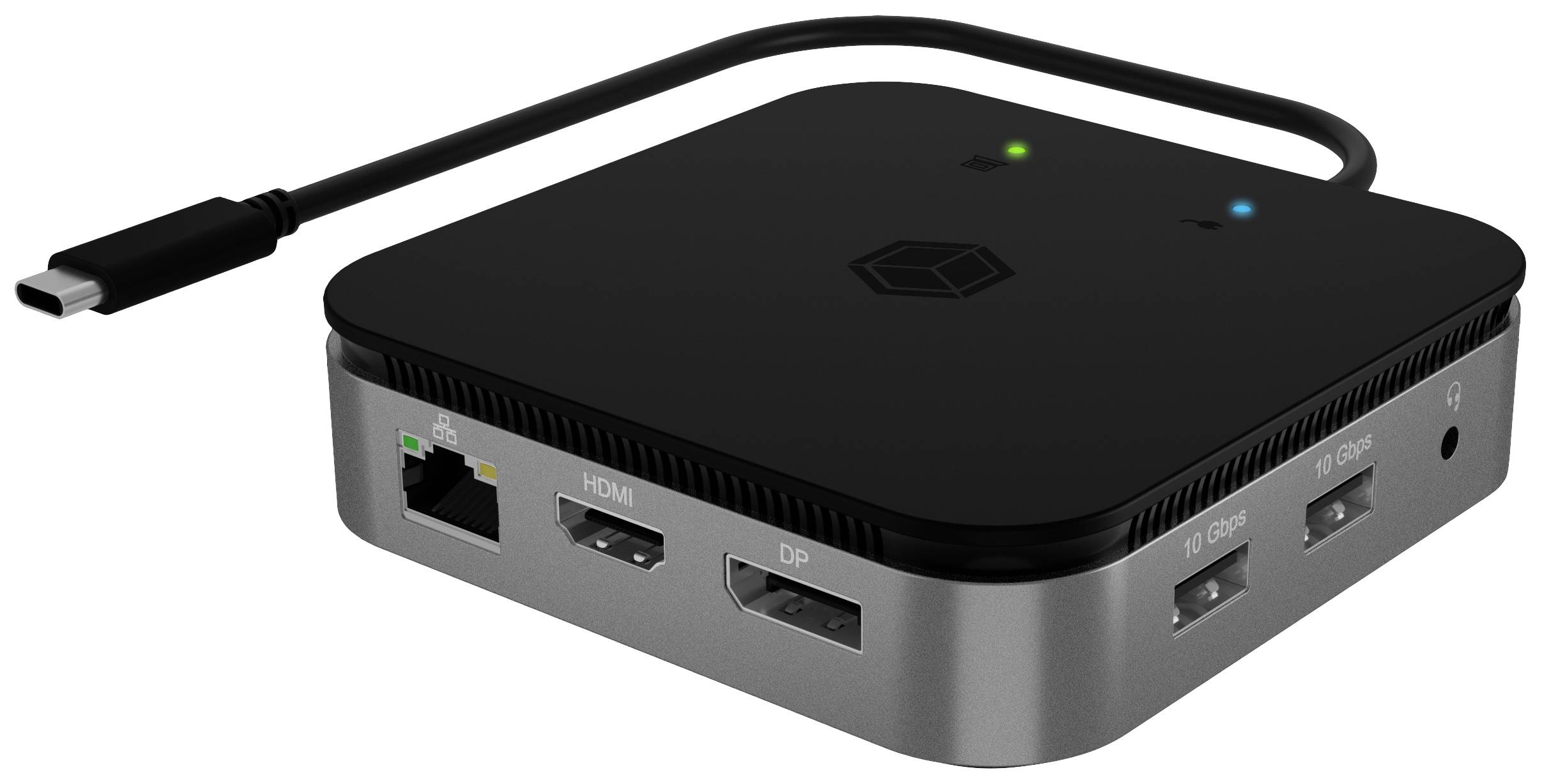

A black USB-C hub with multiple ports: HDMI, DisplayPort and USB, along with an Ethernet port. Ideal for connectivity.

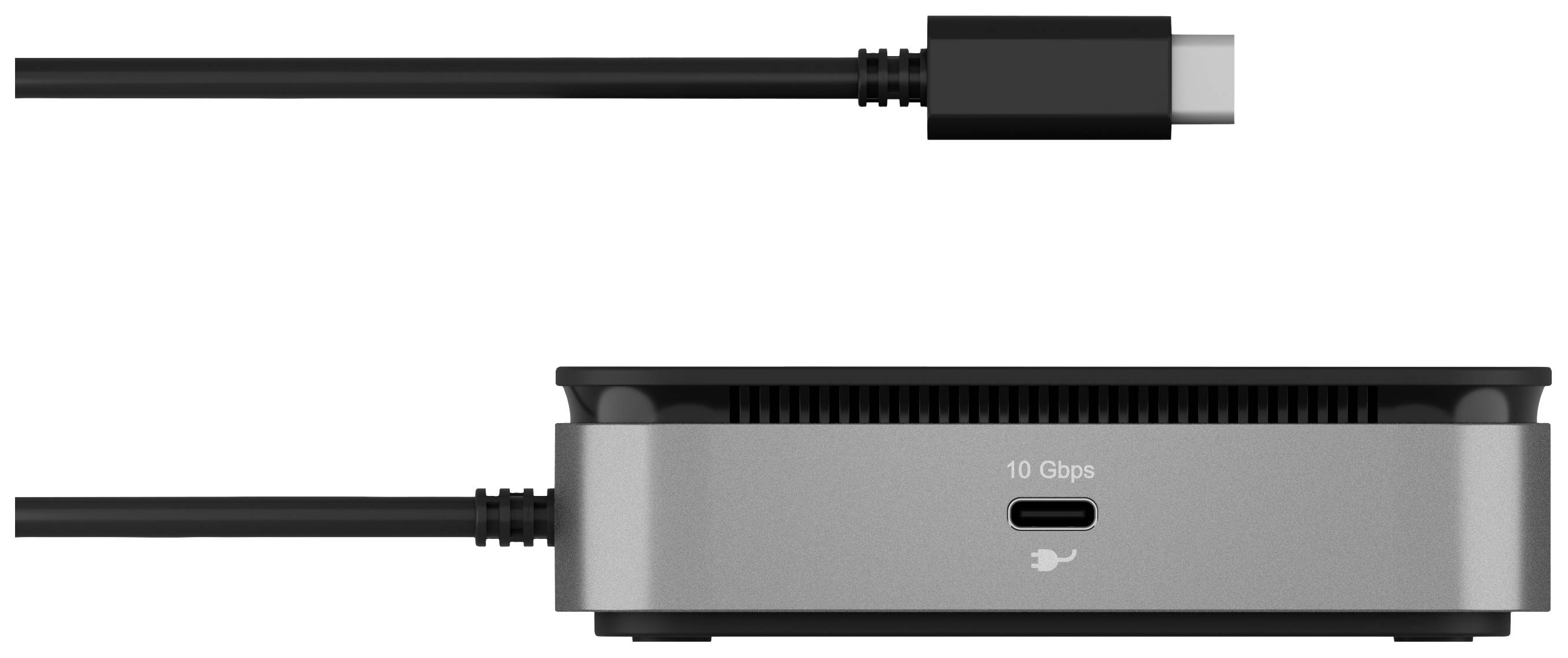

A USB-C hub with multiple ports, including a USB-C port with 10 Gbps, shown with a USB-C cable.

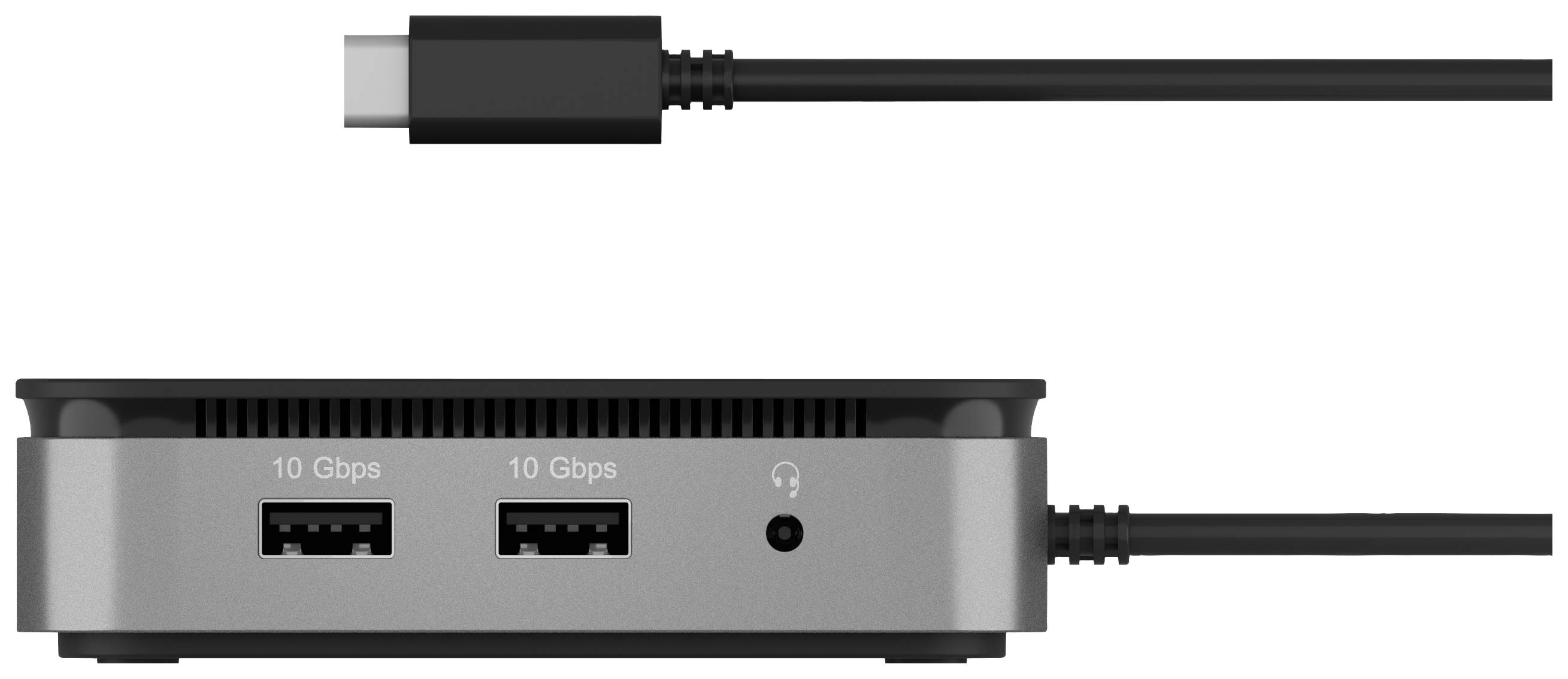

A small, grey electronic device with two USB ports, a headphone socket, and a USB cable.

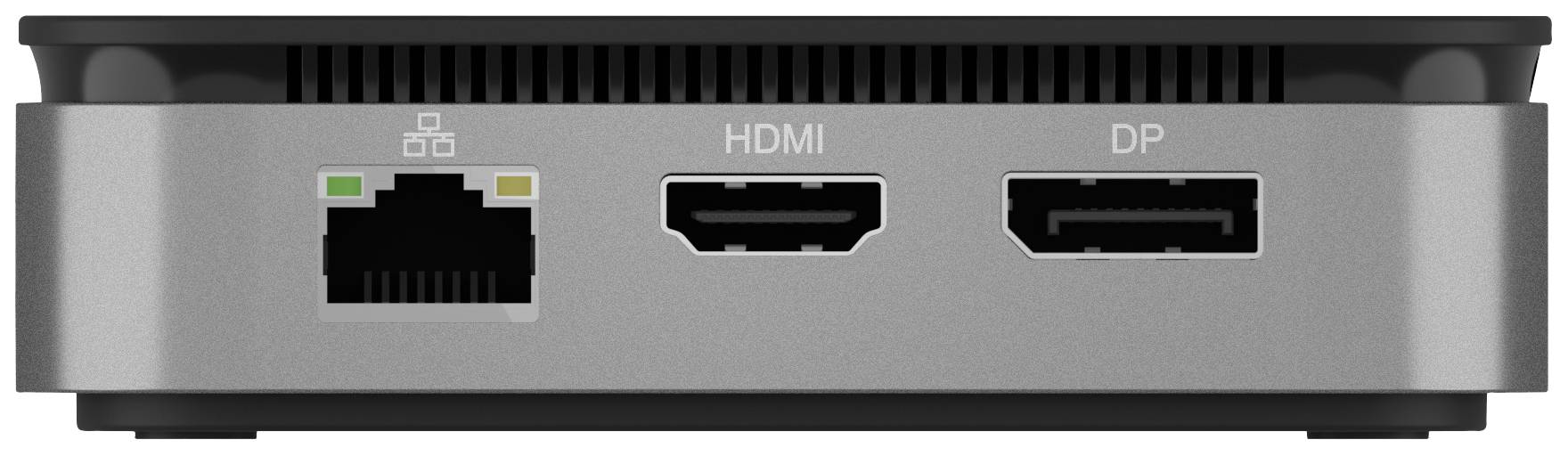

Compact computer with Ethernet port, HDMI and DisplayPort interfaces on the rear. Perfect for flexible screen connections.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 85.99 / piece)

€ 85.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

ICY BOX 60790 USB4® docking station

Connection A (or inputs): USB4® connector
Connecton B (or outputs): DisplayPort socket, HDMI socket, Jack socket 3.5 mm, RJ45 socket, USB 3.2 2nd Gen port A (USB 3.1), USB 3.2 2nd Gen port A (USB 3.1), USB 3.2 2nd Gen 2 port C (USB 3.1)
No. of supported monitors: 2
Maximum resolution: 7680 x 4320 p
Key features: Charging function, Supports 8K@30 Hz (1x) / 4K@30Hz (2x), USB-C® powered

Technical specifications

Product type: USB4® docking station

Type A: USB4® connector

Type B: DisplayPort socket
HDMI socket
Jack socket 3.5 mm
RJ45 socket
USB 3.2 2nd Gen port A (USB 3.1)
USB 3.2 2nd Gen port A (USB 3.1)
USB 3.2 2nd Gen 2 port C (USB 3.1)

Suitable for: Notebook
MacBook

Supported monitors: 2

Resolution (max.): 7680 x 4320 p

Cable length: 30 cm

Factory colour: Anthracite
Black

Features: Charging function
Supports 8K@30 Hz (1x) / 4K@30Hz (2x)
USB-C® powered

Width: 100 mm

Height: 28 mm

Depth: 100 mm

Weight: 172 g

Dim: (W x H x D) 100 x 28 x 100 mm

Compatible with (brand): Universal

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2992813 ICY BOX USB4® docking station IB-DK408-C41 Compatible with (brand): Universal Charging function, Supports 8K@30 Hz (1x)

User & Safety Instructions

User & Safety Instructions 2992813 ICY BOX USB4® docking station IB-DK408-C41 Compatible with (brand): Universal Charging function, Supports 8K@30 Hz (1x)

Description

USB4® docking station with double video output
USB4® is the new interface standard for connecting multiple peripherals to a single-cable docking station. With a maximum bandwidth to the host computer of up to 40 Gbit/s, USB4® enables the operation of a wide range of protocols such as PCIe, DisplayPort™ as well as other USB ports thanks to "intelligent" tunneling. Whether you're editing 8K photos, working on CAD drawings on two 4K displays, watching movies or playing games, the docking station supports everything at the same time.

USB4® is the new standard
Equipped with USB4® connections, you benefit from the latest technology for data transmission and power supply. The USB-C plug design makes USB4® more versatile than Thunderbolt™ 4, but offers comparable performance. Cables with USB-C plugs are fully supported and work on their technical limits.

One plug for up to seven devices
The docking station is equipped with two USB 3.2 Gen 2 Type-A ports and one HDMI® 2.1, DisplayPort™ 1.4, Gigabit RJ45 and 3.5 mm combo connector each. Thanks to the fast transfer rate of the USB4® plug you can use all the devices with maximum speed and the comfort of plug & play and HotSwap.

Mobile, useful and well supplied
It does not matter whether you use the docking station for a stationary or mobile workstation: You can rely on its versatility. Also, WAS deals with the power supply of your devices. The USB Type C® PD 3.0 port allows you to power an additional device to your PC or notebook.

This text is machine translated.

Features

Multi-monitor support: The IB-DK408-C41 extends video output to up to two monitors, WAS significantly increases the available working area and simplifies multi-tasking
High-resolution display: The docking station supports 8K resolution on one or 4K resolution on two additional screens, giving you the highest graphics quality for media playback, games and creative tasks
USB4 and Thunderbolt 4: Experience the latest connectivity standards - the IB-DK408-C41 is a pioneer in USB4 connectivity technology, provides upstream of up to 40 Gbps and supports both Thunderbolt 3/4 and USB Type-C 3.2 devices on compatible systems
Fast charging: Connect the IB-DK408-C41 to the USB Type-C charging port of your device and a USB Type-C power supply to the docking station to charge up to 100 W via pass-through (power supply not included)
Gigabit Ethernet connection: The docking station has a Gigabit Ethernet connection, the port provides stable network connections up to 1,000 Mbps, and WAS is essential for areas that require high Internet performance
Portable and practical: Thanks to its compact and lightweight design, the IB-DK408-C41 is perfectly prepared for mobile use, it is Ideal for users who travel frequently or work in different places
Host compatibility: Requires USB4® Type-C® / Thunderbolt™ 3/4 Type-C® DisplayPort™ (Alt Mode) and Power delivery support

Scope of delivery

ICY BOX IB-DK408-C41 USB4 (USB-C®) 8K notebook docking station
Manual

System requirements

Windows®
MacOS ®

Description

Features

Multi-monitor support: The IB-DK408-C41 extends video output to up to two monitors, WAS significantly increases the available working area and simplifies multi-tasking
High-resolution display: The docking station supports 8K resolution on one or 4K resolution on two additional screens, giving you the highest graphics quality for media playback, games and creative tasks
USB4 and Thunderbolt 4: Experience the latest connectivity standards - the IB-DK408-C41 is a pioneer in USB4 connectivity technology, provides upstream of up to 40 Gbps and supports both Thunderbolt 3/4 and USB Type-C 3.2 devices on compatible systems
Fast charging: Connect the IB-DK408-C41 to the USB Type-C charging port of your device and a USB Type-C power supply to the docking station to charge up to 100 W via pass-through (power supply not included)
Gigabit Ethernet connection: The docking station has a Gigabit Ethernet connection, the port provides stable network connections up to 1,000 Mbps, and WAS is essential for areas that require high Internet performance
Portable and practical: Thanks to its compact and lightweight design, the IB-DK408-C41 is perfectly prepared for mobile use, it is Ideal for users who travel frequently or work in different places
Host compatibility: Requires USB4® Type-C® / Thunderbolt™ 3/4 Type-C® DisplayPort™ (Alt Mode) and Power delivery support
