ISDT Scale model battery discharger Discharger function
EAN:
Part number:
Item no:
Number
Total (€ 100.83 / piece)
€ 100.83
plus VAT.

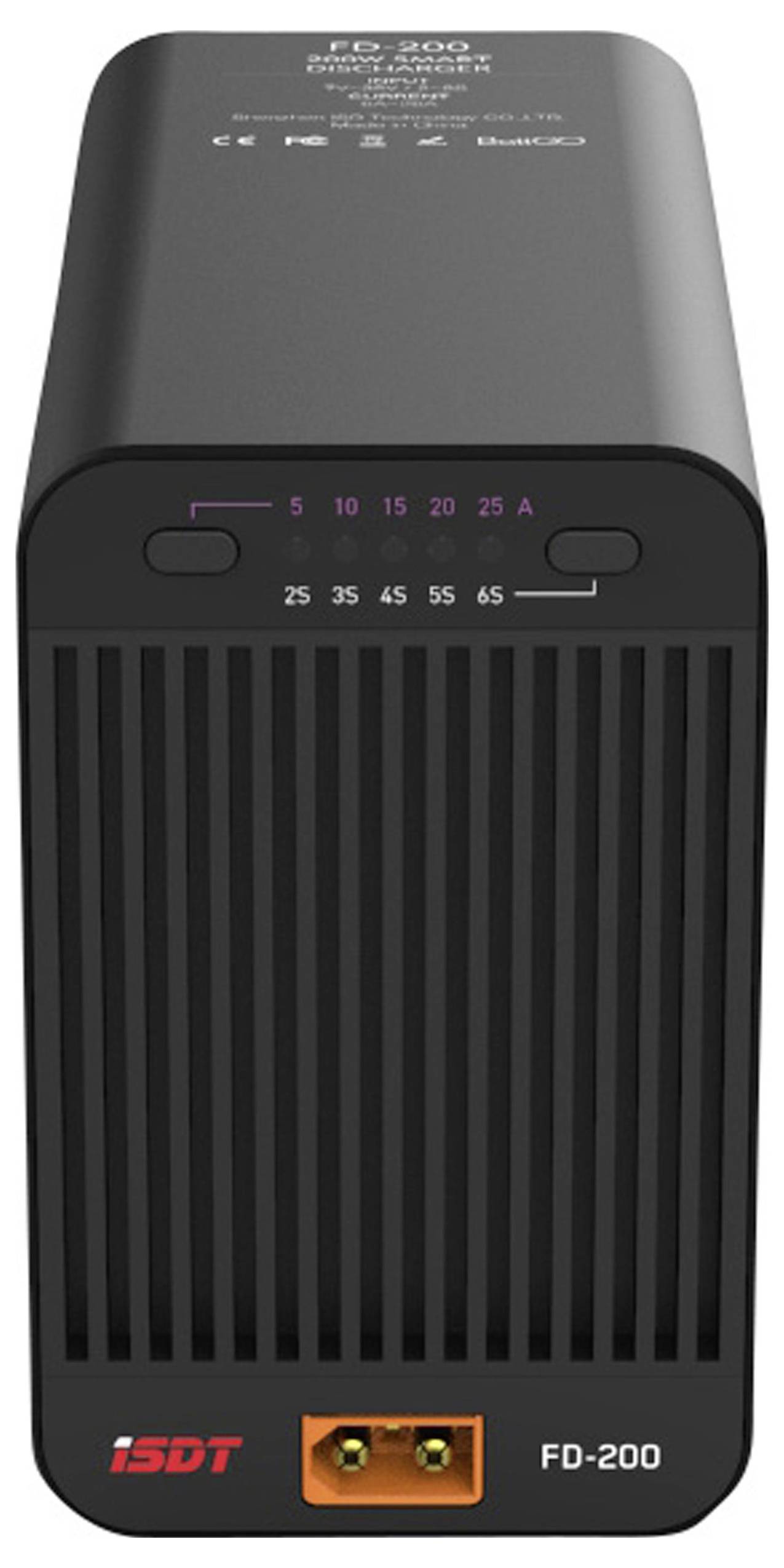

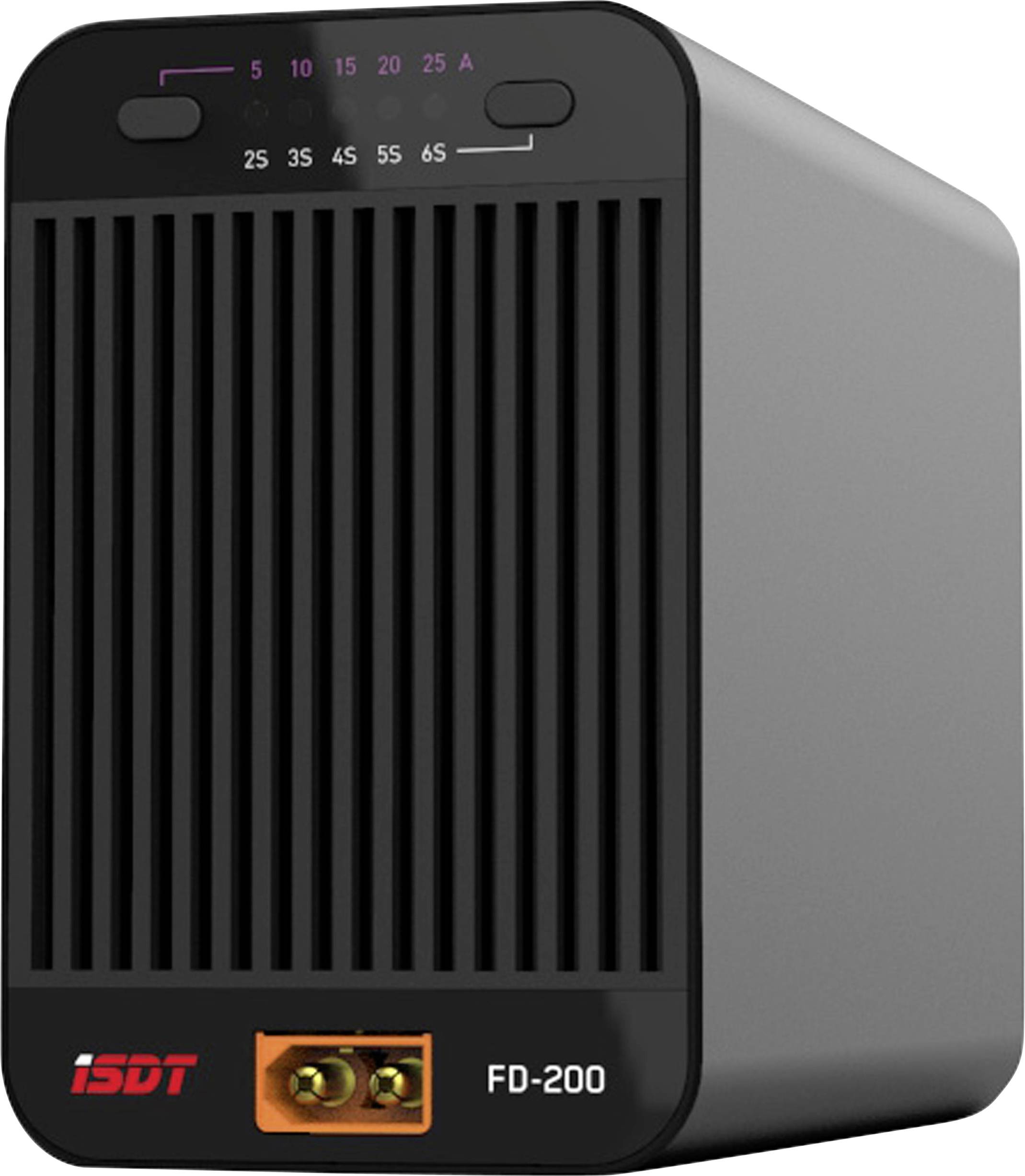

ISDT FD200 DISCHARGER
Highlights & Details
- Simple operation, with a button for intelligent discharge
- Offers up to 200W discharge power and is suitable for larger battery packs
Technical specifications
- Operating voltage
7 - 35 V/DC
- Max. discharge power
200 W
- Discharge current
25 A
- Charging slots
1
- Connector system
XT60
- Dim
(L x W x H) 100 x 140 x 60 mm
- Height
60 mm
- Length
100 mm
- Width
140 mm
- Charger features
Discharger function
- Manufacturer part #
FD200
- Weight
790 g
- Product type
Scale model battery discharger
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3221610 ISDT Scale model battery discharger Discharger function
User & Safety Instructions 3221610 ISDT Scale model battery discharger Discharger function
Description
Intelligent discharge device
The ISDT FD200 discharge charger offers up to 200W discharge power and is thus suitable for larger battery packs. The discharge current can be selected from 5 to 25 ampere, the discharge voltage however is fixed at 3.8 V - this enables an easy and safe operation with just one button.
Safe operation

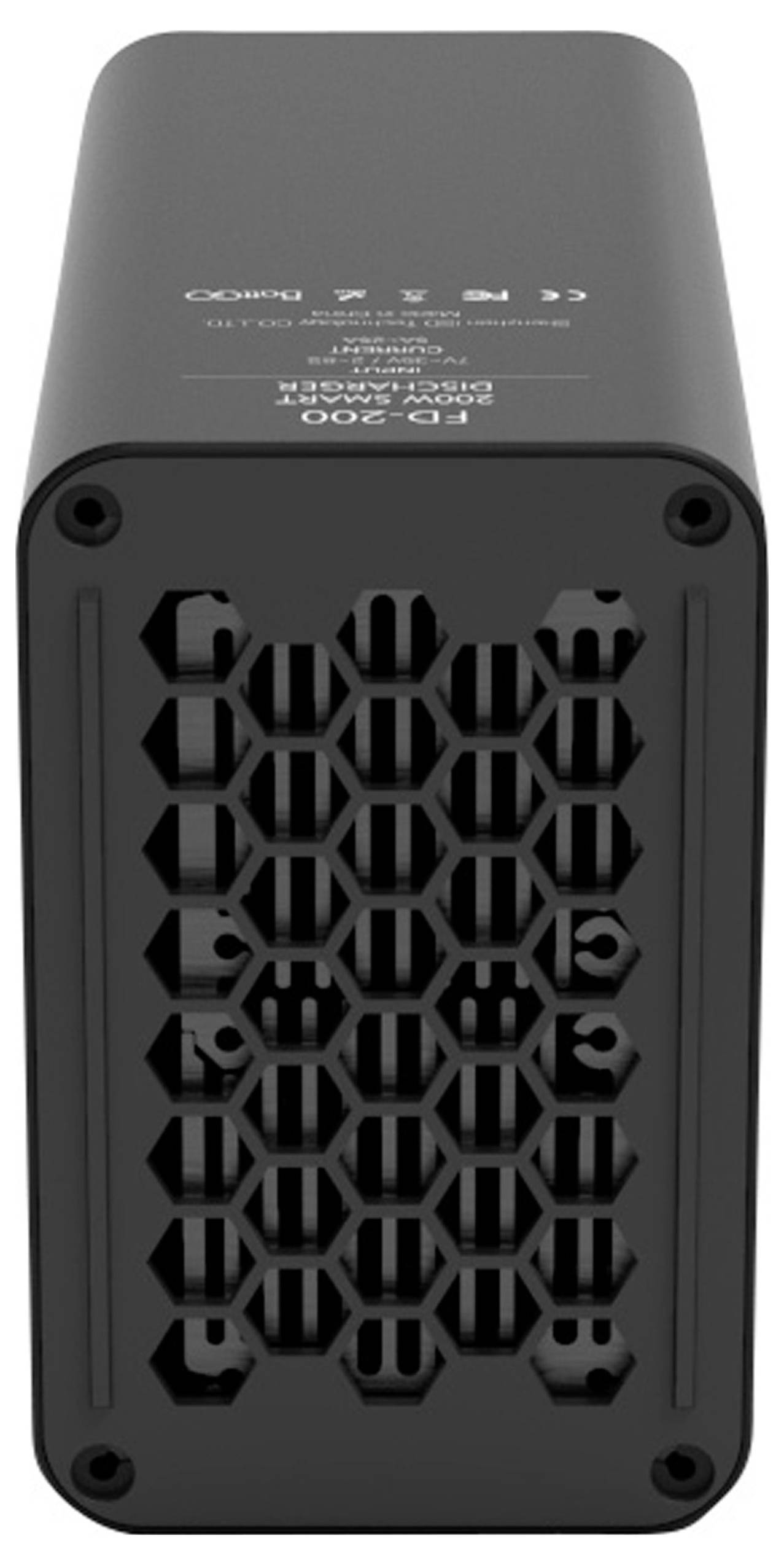

The ISDT FD200 is well protected against improper use: Abnormal voltages and wrong cell settings, the device reports via alarm and switches off automatically. An effective ventilation and heat dissipation system protects against overheating.
Operated via APP
All settings can be adjusted and controlled via the ISDT APP on your smartphone. In addition, the ISD GO-APP supports automatic discharge via Bluetooth.
This text is machine translated.
Scope of delivery
- ISDT FD200 discharger
- Manual
System requirements
- ISD Go APP:
Android
5.0 or higher
IOS
10.3 or higher
