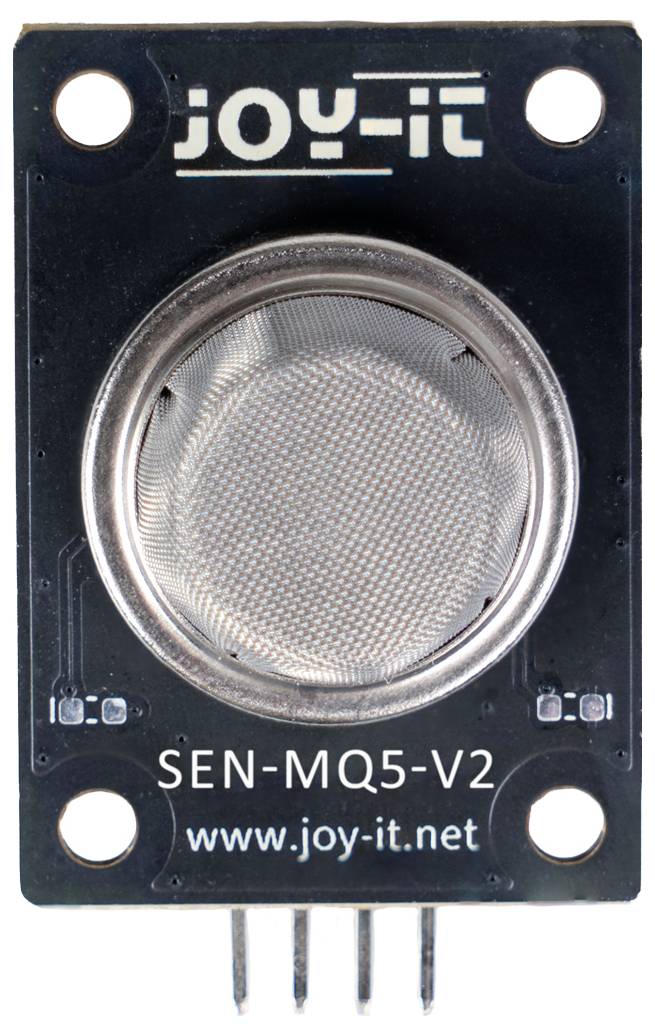

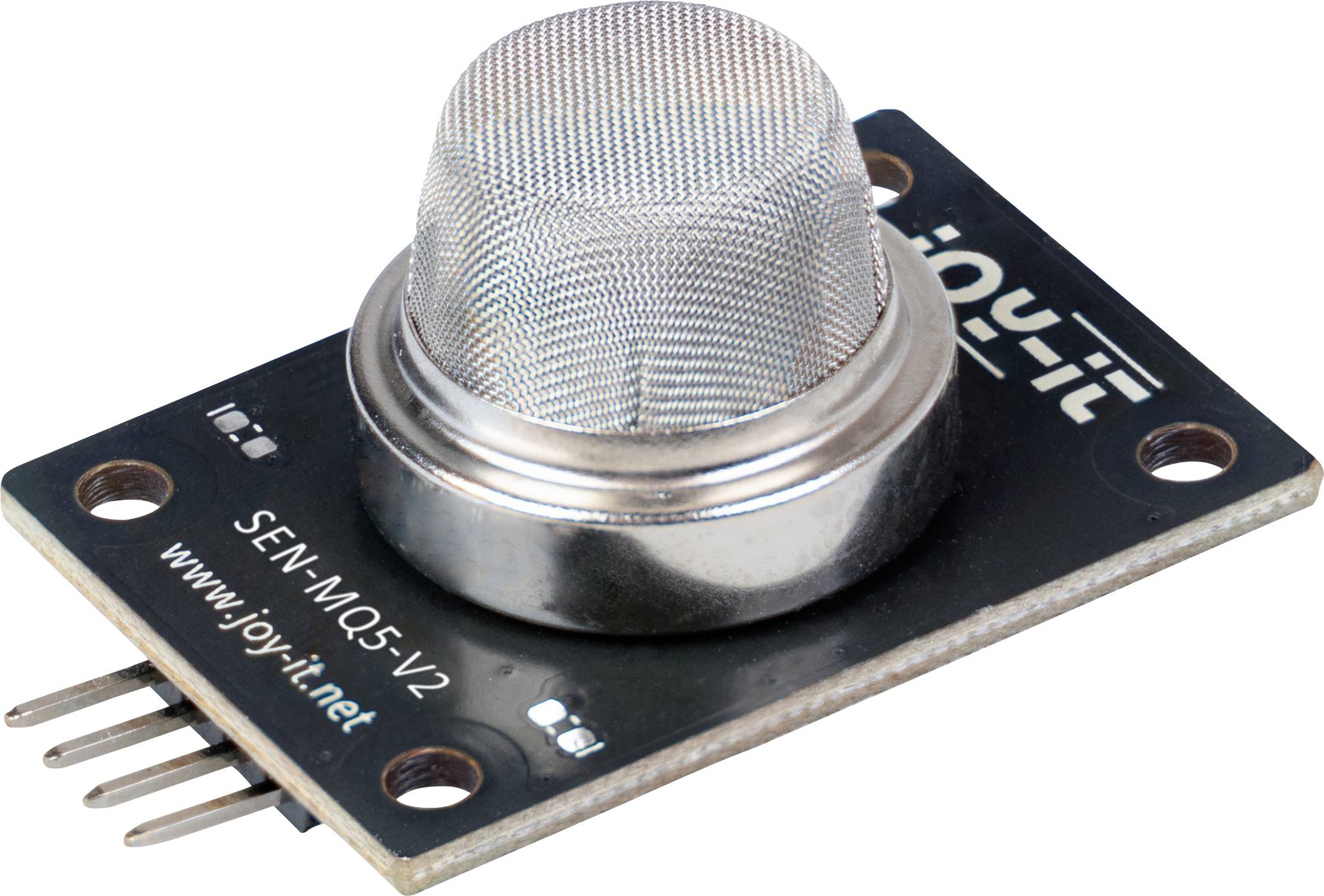

Joy-it MQ5V2 Gas detector 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 4.49 / piece)
€ 4.49
incl. VAT
14-day return policy included
Highlights & Details
MQ5 - LPG and natural gas sensor board - 50 to 10,000 ppm, 5V, digital & analogue
- Detects liquefied gas (LPG), propane, methane, butane and
- Other flammable gases.
- Measurement range from approx. 50 to 10,000 ppm
- Analog output (0 - 5 V) for continuous monitoring
- The gas concentration
- Digital switching output with adjustable trigger via
- Built-in potentiometer
- Operates using a standard DC power supply
- 5 V and integrated heating circuit
Technical specifications
- Interfaces:
- 4-pin plug connector (2.54 mm), Molex Picoblade (53261-0471)
- LPG (LPG), propane, methane, butane and other natural gases
- 50 – 10,000 ppm
- Product type
Gas detector
- Interfaces
Molex plug 4-pin
- Min. operating voltage
0 V
- Max. operating voltage
5 V
- Height
21 mm
- Length
41 mm
- Width
25 mm
- No. of outputs
2 x
- Weight
8
Documents & Downloads
Datasheet
Datasheet 3802254 Joy-it MQ5V2 Gas detector 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3802254 Joy-it MQ5V2 Gas detector 1 pc(s)
Description
MQ 5 Gas Sensor - Detection of LPG & flammable gases
The MQ 5 reliably detects LPG, propane, methane and butane in the range 50 - 10,000 ppm and is suitable for Ideal for gas leak detection, warning systems and safety applications. The module offers an analogue 0–5 V output as well as a digital switching output with adjustable threshold. The operation takes place with 5 V and integrated heating circuit for stable measured values.

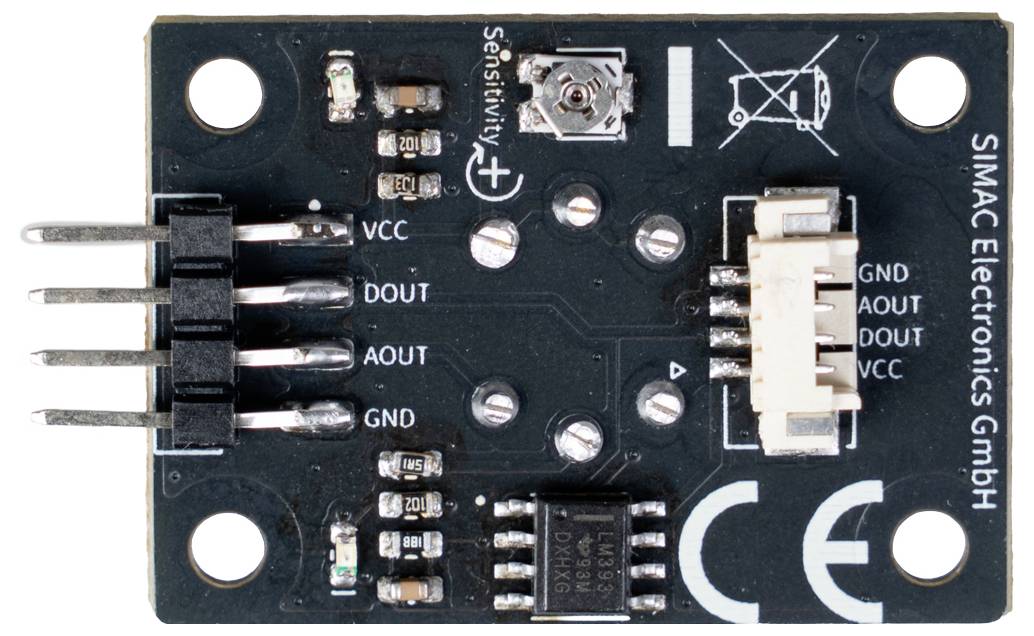

Thanks to status LEDs and 4 pin header or Molex PicoBlade connection the board can be integrated easily in micro-controller projects and embedded systems.
Short features:
• Detection of LPG & flammable gases
• Analogue & digital output
• 5 V operation, integrated heating circuit
• Operation & status LEDs
• Compact, flexible, integrated board
This text is machine translated.
The MQ 5 reliably detects LPG, propane, methane and butane in the range 50 - 10,000 ppm and is suitable for Ideal for gas leak detection, warning systems and safety applications. The module offers an analogue 0–5 V output as well as a digital switching output with adjustable threshold. The operation takes place with 5 V and integrated heating circuit for stable measured values.
Thanks to status LEDs and 4 pin header or Molex PicoBlade connection the board can be integrated easily in micro-controller projects and embedded systems.
Short features:
• Detection of LPG & flammable gases
• Analogue & digital output
• 5 V operation, integrated heating circuit
• Operation & status LEDs
• Compact, flexible, integrated board
This text is machine translated.
Scope of delivery
- Sensor
