JST Crimp contact JWPF Total number of pins 1 BWPT-001T-0.25 1 pc(s)

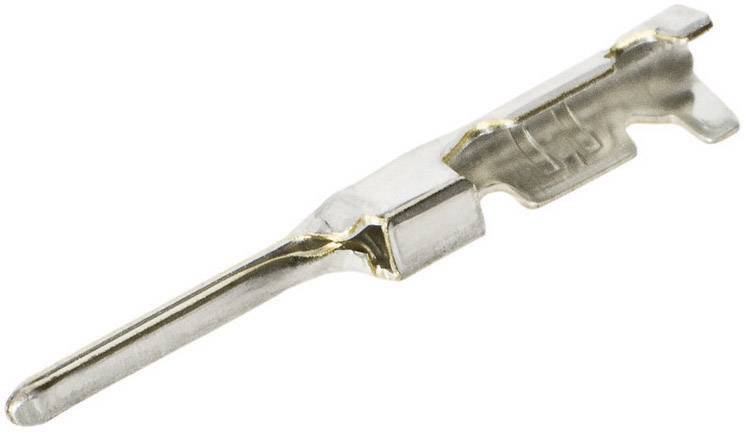

A single metal pin, most likely an electrical plug contact, in silver colour, shows the structure of a connector.
Product type
Crimp contact
Connector type
Pin
No. of rows
1
Series
JWPF
Total number of pins
1
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
12724 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 10
Total (€ 0.25 / piece)
€ 2.50
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Crimp contacts for 2.0 mm pitch, JWPF series

  • Content: 1 pc(s)
  • No. of rows: 1
  • Total number of pins: 1

Our service for you

  • A black and white, abstract circular design with geometric shapes and a black segment in the upper right area of the circle.
  • A stylised logo with letters and a small circle. The background is white, with the depicted form in black.

Technical specifications

Product type

Crimp contact

Connector type

Pin

No. of rows

1

Connector system

wire-to-board

Series

JWPF

Pins per row

1

Total number of pins

1

Nominal current

3 A

Nominal current - rounded value

3 A

Content

1 pc(s)

AWG max.

22

AWG (min.)

26

Connection

Crimp

Manufacturer part #

BWPT-001T-0.25

Factory colour

Silver

Industrial packaging

No

Contact material

Phosphorus bronze

Connector contact surface

Tin plated

Length

15.2 mm

max. cross section

0.33 mm²

Min. cross section

0.13 mm²

RoHS-compliant

Yes

IP67

Type

BWPT-001T-0.25

Material (details)

PA 66 UL94V-0

Type

Pin crimp contact

Nominal voltage (details)

100 V AC

Nominal current (details)

3 A

Cross section

0.13 - 0.33 mm²

Connection

Crimp

Documents & Downloads

Datasheet

Datasheet 741974 JST Crimp contact JWPF Total number of pins 1 BWPT-001T-0.25 1 pc(s)

User & Safety Instructions

User & Safety Instructions 741974 JST Crimp contact JWPF Total number of pins 1 BWPT-001T-0.25 1 pc(s)

Description


Waterproof (IP67), lockable cable to cable connection. The catch bar casing allows an audible click when plugging in. 2-point contact system.
