K2 Energy 2002589 2002589 Module bracket
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 2.51 / piece)
€ 2.51
plus VAT.
14-day return policy included
Technical specifications
- Design: End terminal
- Material: Aluminium
- Surface protection: Anodised/anodized
- Width 65 mm
- Height: 55 mm
- Depth: 33 mm
- With mounting material: Yes
- For frame height 30..42 mm
- Product type
Module bracket
- Dim
(W x H x D) 65.00 x 55.00 x 33.00 mm
- Type
End terminal
- Content
1 pc(s)
- Width
65.00 mm
- Height
55.00 mm
- Depth
33.00 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3135157 K2 Energy 2002589 2002589 Module bracket
User & Safety Instructions
User & Safety Instructions 3135157 K2 Energy 2002589 2002589 Module bracket
Description

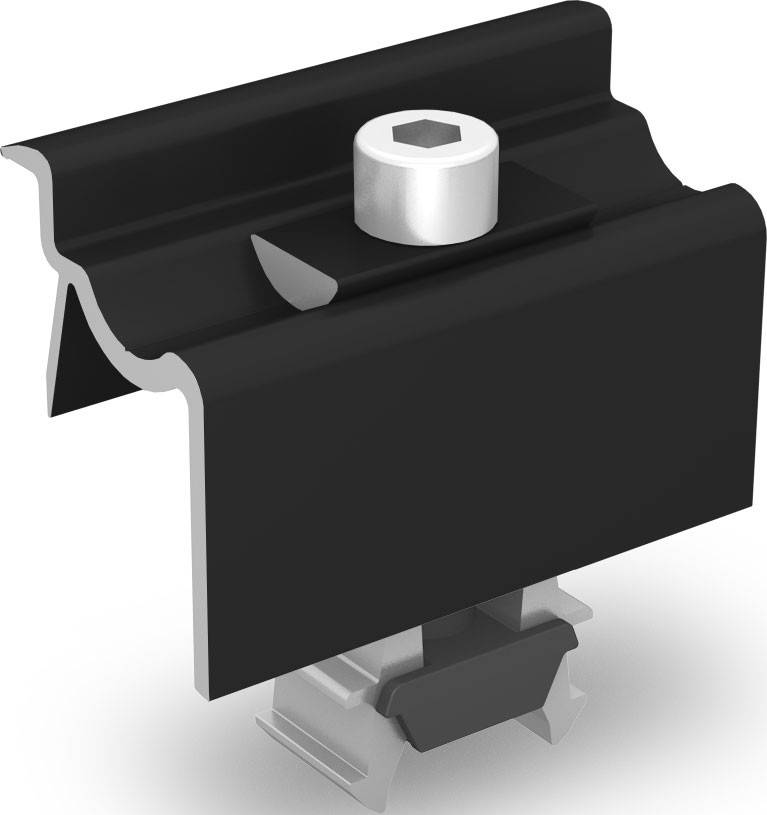

Black anodized universal module terminal block with a simple click function for fixing solar modules with frame heights of 30-42 mm. Not compatible with K2 Dome 6 System as well as K2 FlatRail, SolidRail L/ LS /XL and CrossRail 62/ 90. MATERIAL: ALUMINUM EN AW 6063 T66 / EN AW 6082 T6 / A2 / POM. Eloxal may be scratch marks due to packaging and transport.
