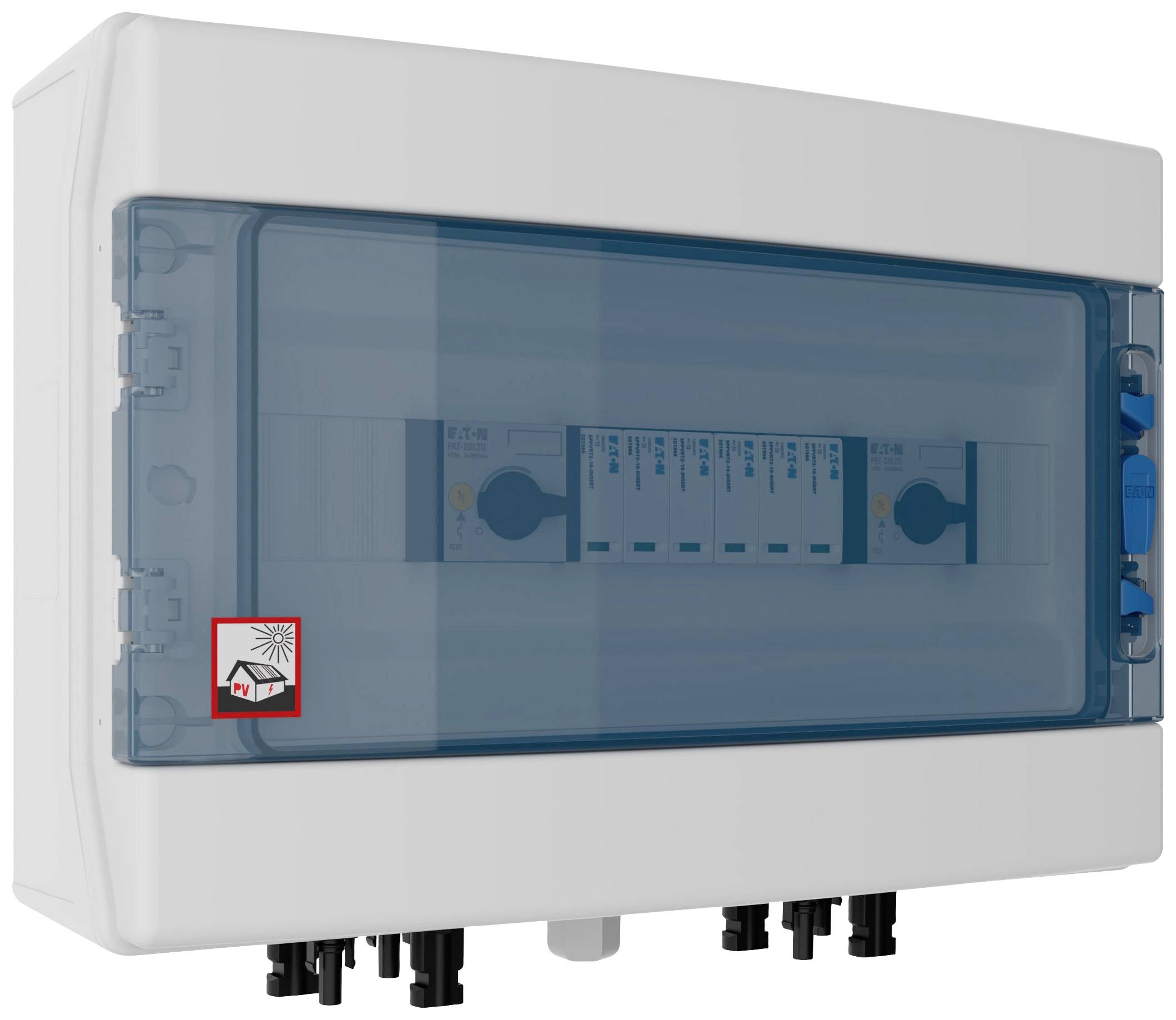

Eaton EP-501986 IKA-SOL20-X22-PKZ-T2-1/18-MC4-A Generator junction box
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 326.89 / piece)
€ 326.89
plus VAT.
14-day return policy included
Technical specifications
- Rated voltage 900 V/DC
- DC Circuit breaker switch 20 A
- Protection class: II
- Protection class IP65/IK10
- Rated current 20 A
- Protection level 3.8 kV
- Nominal leakage surge current In:20 kA
- Max. Surge current 40 kA
- MC4 connector type
- Conductor cross-section: 6 mm²
- Conductor cross-section PE: 16 - 25 mm²
- Housing: ABS (plastic)
- Product type
Generator junction box
- Dim
(W x H x D) 420 x 325 x 150 mm
- Factory colour
Grey (RAL 7035)
- Content
1 pc(s)
- Width
420 mm
- Height
325 mm
- Depth
150 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3193622 Eaton EP-501986 IKA-SOL20-X22-PKZ-T2-1/18-MC4-A Generator junction box
User & Safety Instructions
User & Safety Instructions 3193622 Eaton EP-501986 IKA-SOL20-X22-PKZ-T2-1/18-MC4-A Generator junction box
Description

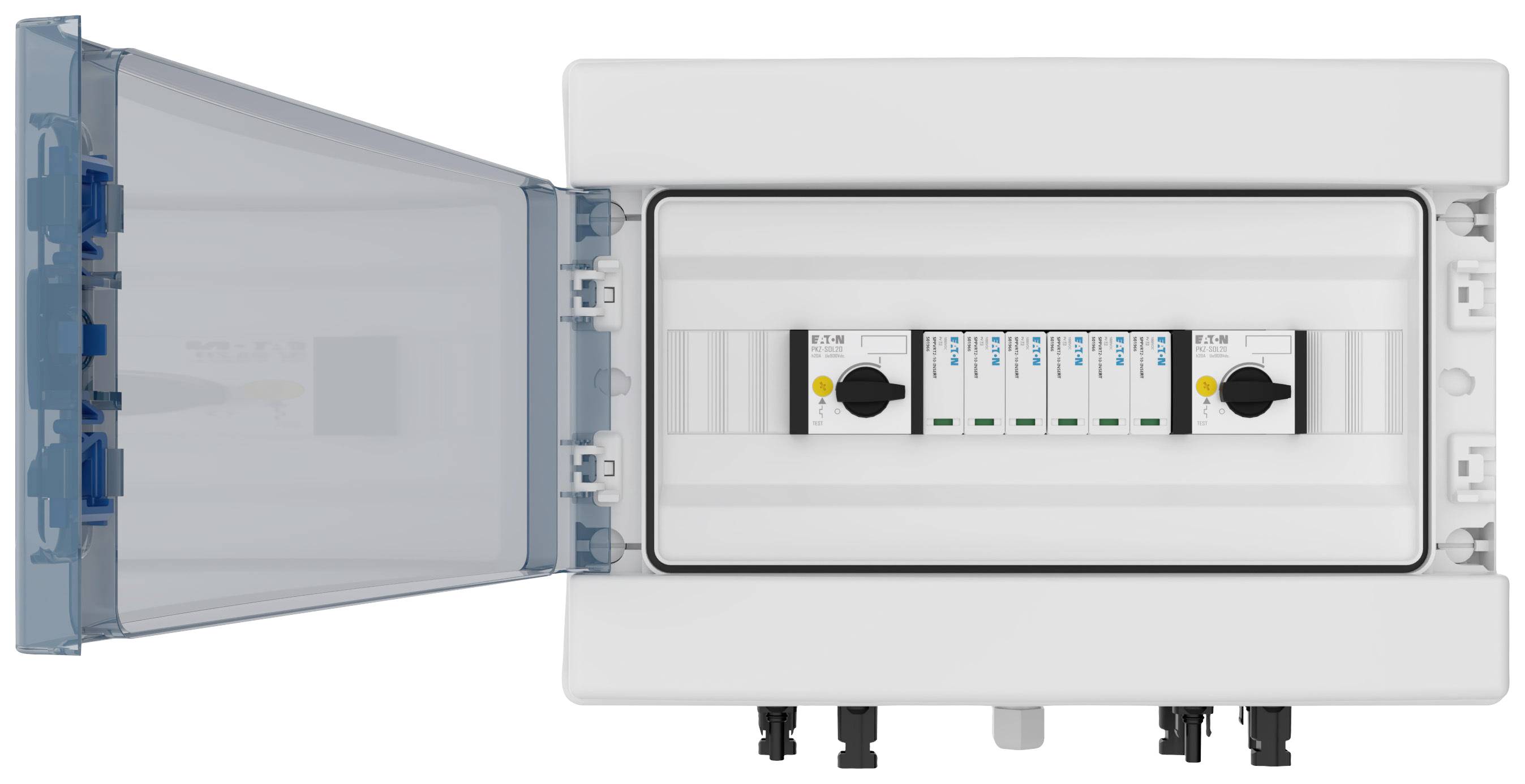

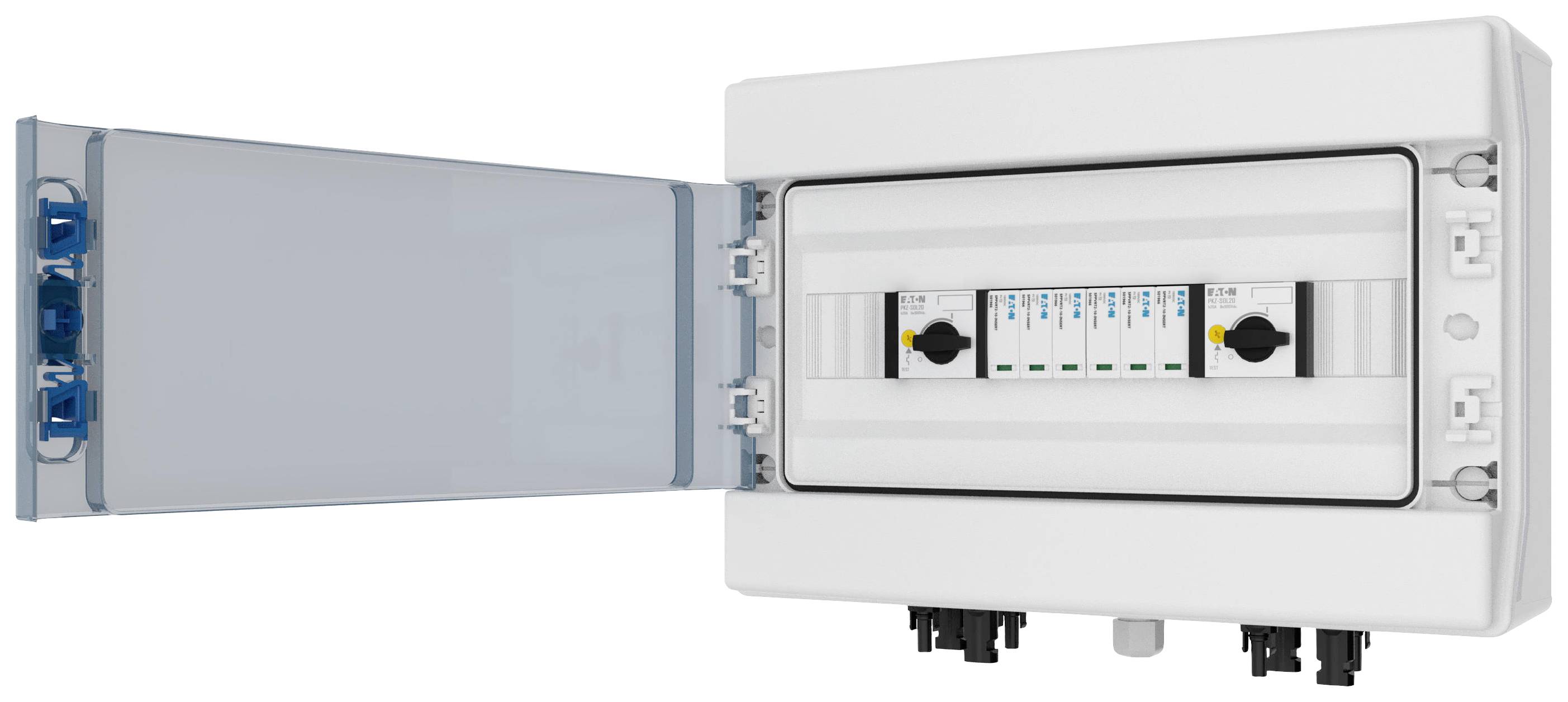

Photovoltaic DC stringbox, factory-assembled by Eaton: IEC 61439-2 Appendix DD. For inverter with 2 MPP Tracker: 2x IN + 2x OUT, integrated devices: PKZ-SOL PV line protection switch and PV surge protection device type 2, MC4 connectors at the lower side.
This text is machine translated.
This text is machine translated.
Features
- Standardized string boxes tested according to IEC/EN 61439-2 Appendix DD (PVA) for residential buildings and small commercial photovoltaic applications
- IKA-SOL protects PV modules and inverters from overvoltages
- Future-proof PV installation on the building
- The ready-to-connect system solution ensures a safe PV system; prevention of costly damage due to overvoltage and failures with IKA-SOL
