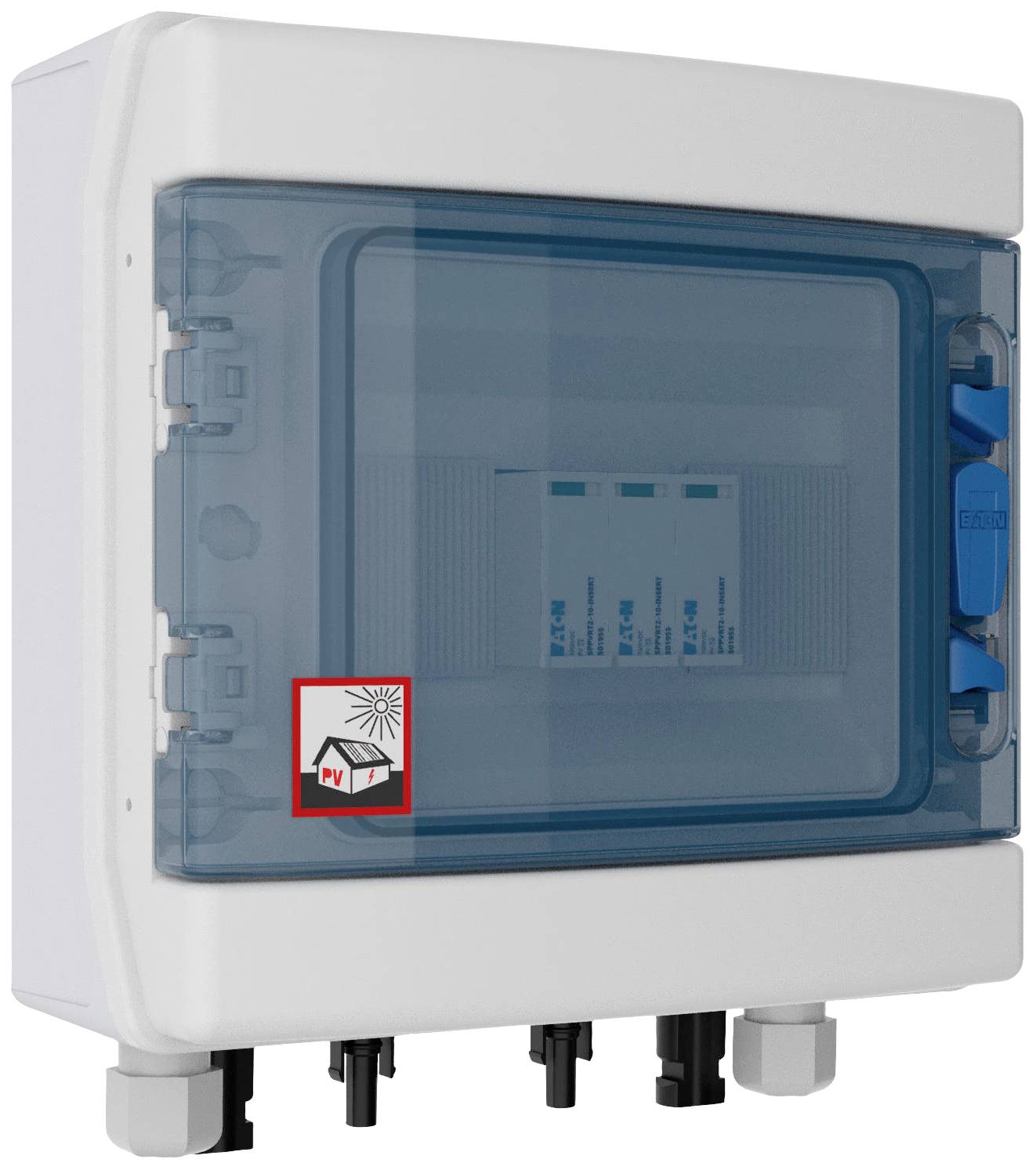

Eaton EP-501988 IKA-SOL20-X11-T12-1/8-MC4-B Generator junction box
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 249.99 / piece)
€ 249.99
incl. VAT
14-day return policy included
Technical specifications
- Max. input voltage 1000 V/DC
- Rated operating voltage: 1000 V
- Rated current 19.5 A
- Input current max. 19.5 A
- Output current max. 19.5 A
- Housing: Polycarbonate (plastic)
- Protection class IP65/IK10
- Protection class: II
- Product type
Generator junction box
- Dim
(W x H x D) 238 x 268 x 118 mm
- Factory colour
Grey
- Content
1 pc(s)
- Width
238 mm
- Height
268 mm
- Depth
118 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3193621 Eaton EP-501988 IKA-SOL20-X11-T12-1/8-MC4-B Generator junction box
User & Safety Instructions
User & Safety Instructions 3193621 Eaton EP-501988 IKA-SOL20-X11-T12-1/8-MC4-B Generator junction box
Description

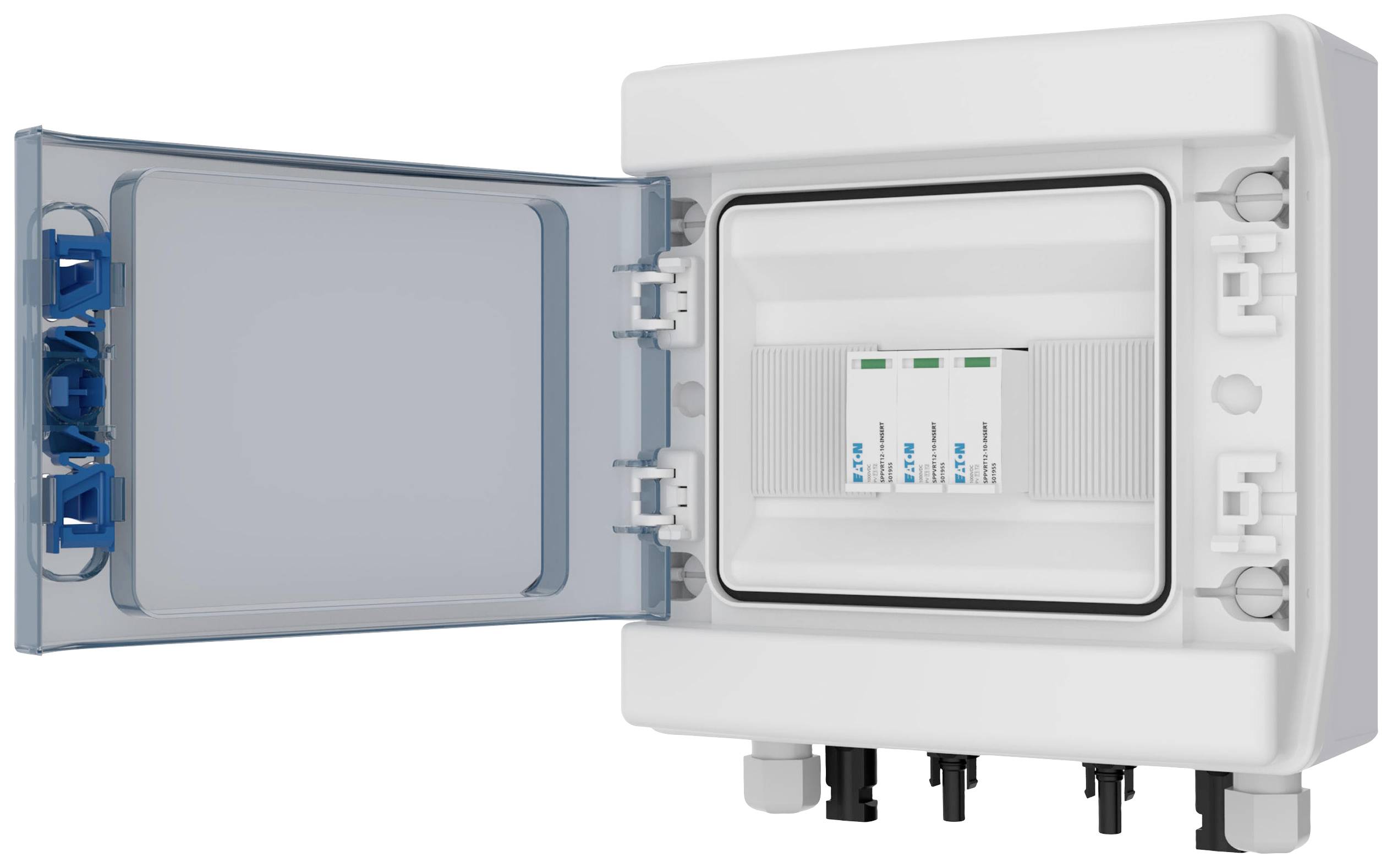

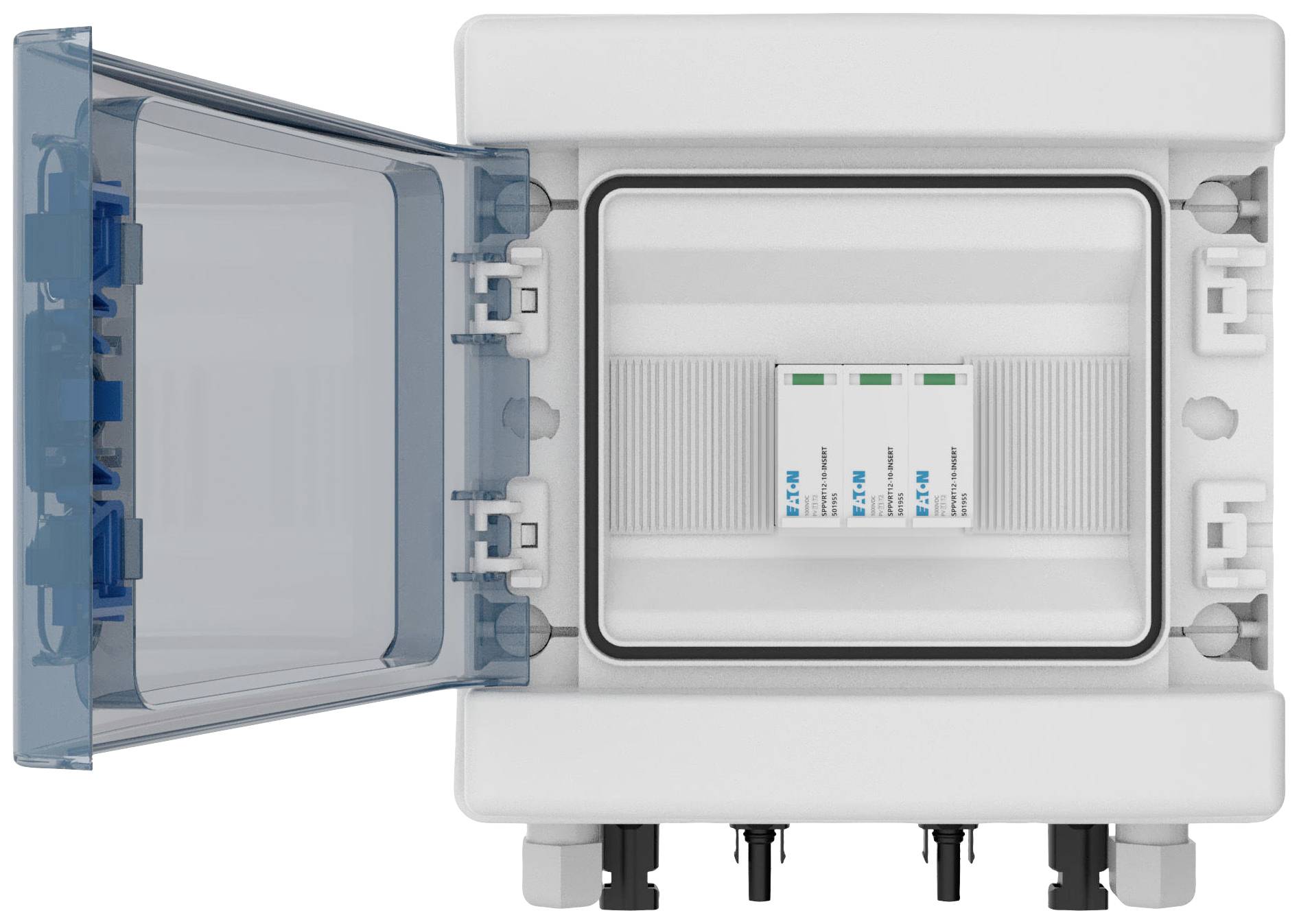

Photovoltaic DC stringbox, factory-assembled by Eaton: IEC 61439-2 Appendix DD. For inverter with 1 MPP Tracker: 1x IN + 1x OUT, integrated devices: PV surge protection device type 1+2, MC4 connectors at the bottom of the box, IKA-BOX 1-row.
This text is machine translated.
This text is machine translated.
Features
- Standardized string boxes tested according to IEC/EN 61439-2 Appendix DD (PVA) for residential buildings and small commercial photovoltaic applications
- IKA-SOL protects PV modules and inverters from overvoltages
- Future-proof PV installation on the building
- The ready-to-connect system solution ensures a safe PV system; prevention of costly damage due to overvoltage and failures with IKA-SOL
