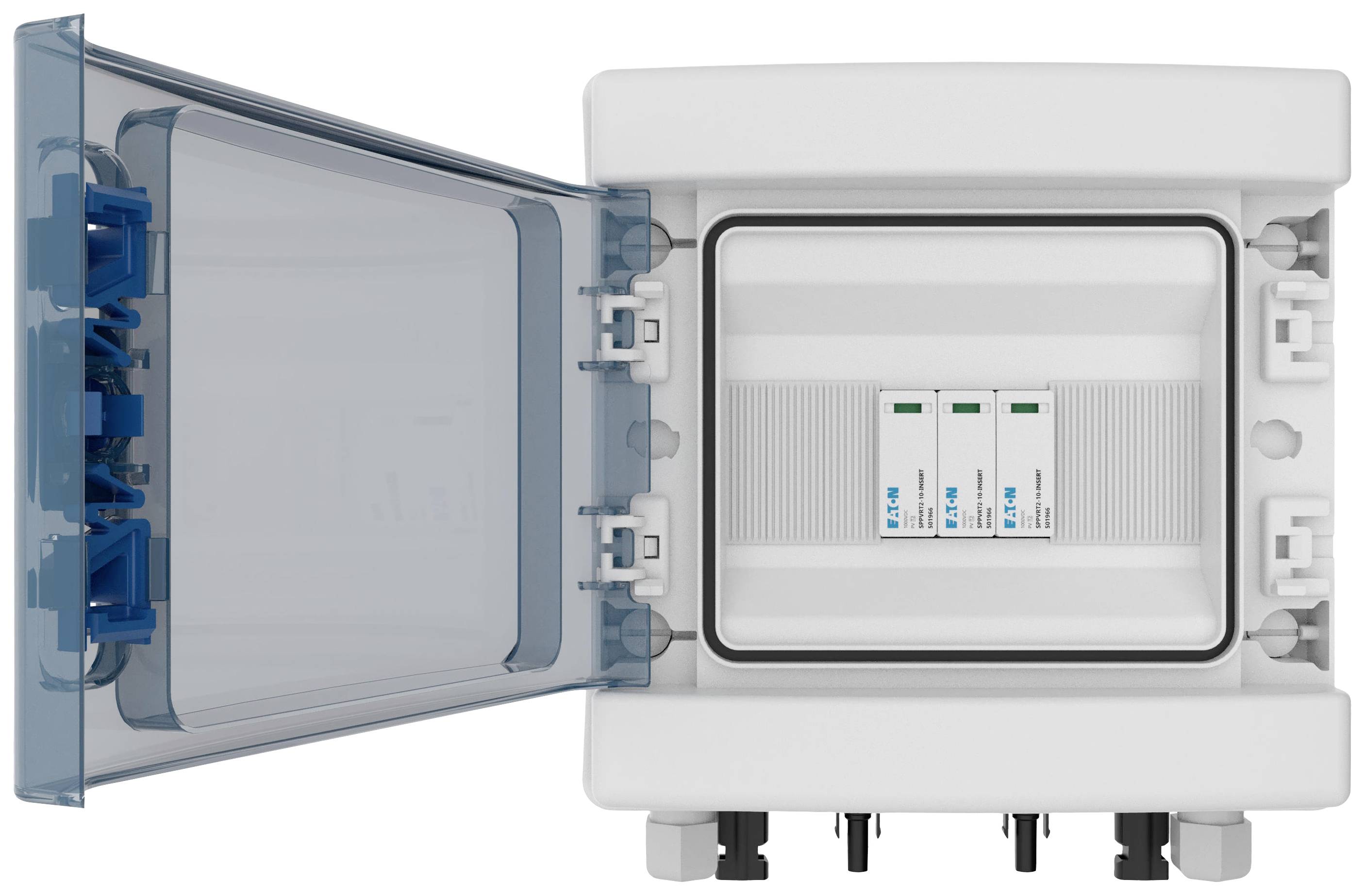

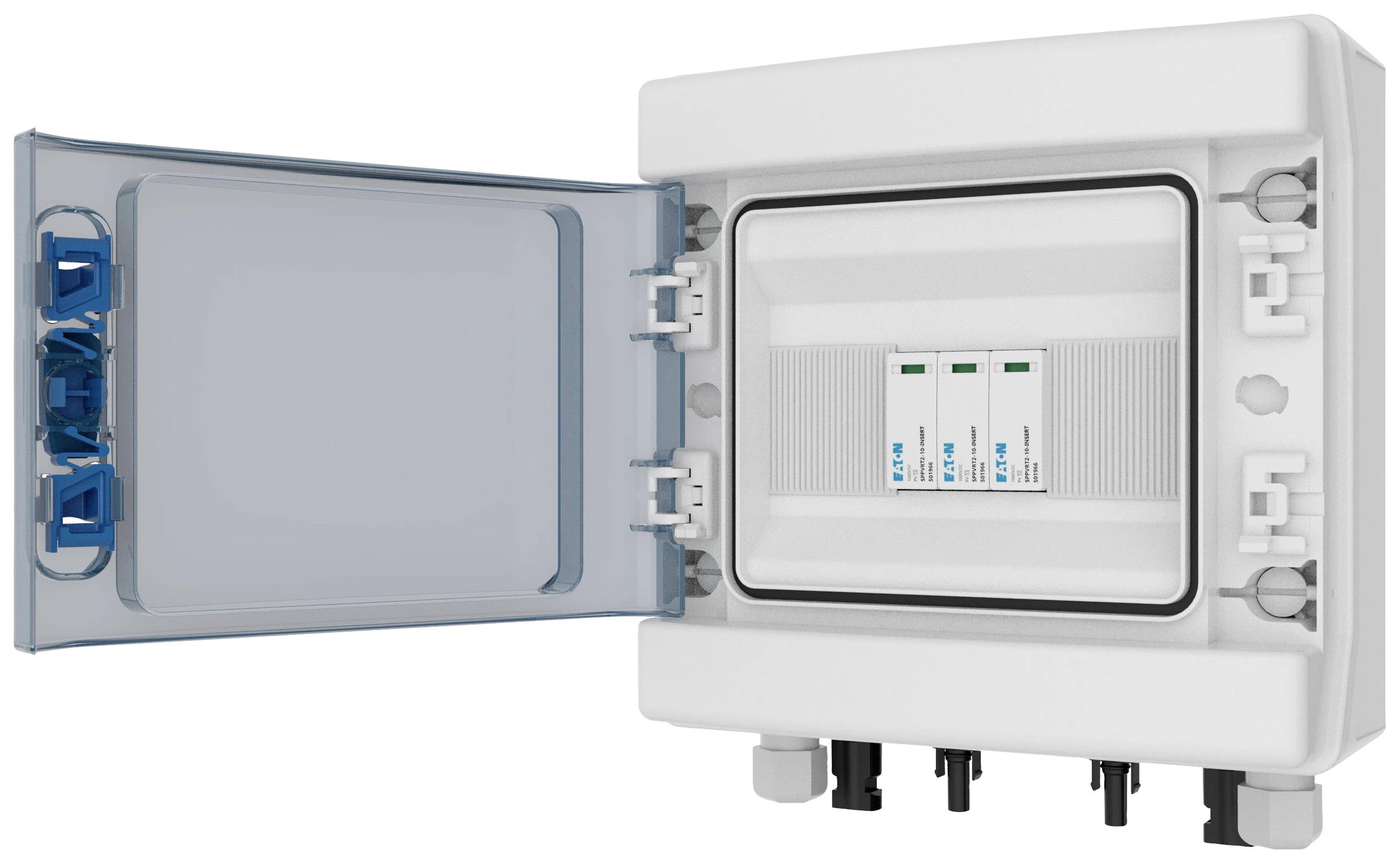

Eaton EP-501987 IKA-SOL20-X11-T2-1/8-MC4-B Generator junction box
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 151.25 / piece)
€ 151.25
plus VAT.
Only 4 Piece(s) available
Technical specifications
- Rated voltage 900 V/DC
- DC Circuit breaker switch 20 A
- Protection class: II
- Protection class IP65/IK10
- Rated current 19.5 A
- Protection level 3.8 kV
- Nominal leakage surge current In:20 kA
- Max. Surge current 40 kA
- MC4 connector type
- Conductor cross-section: 6 mm²
- Conductor cross-section PE: 16 - 25 mm²
- PC casing
- Product type
Generator junction box
- Dim
(W x H x D) 240 x 270 x 115 mm
- Factory colour
Grey (RAL 7035)
- Content
1 pc(s)
- Width
240 mm
- Height
270 mm
- Depth
115 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3193623 Eaton EP-501987 IKA-SOL20-X11-T2-1/8-MC4-B Generator junction box
User & Safety Instructions
User & Safety Instructions 3193623 Eaton EP-501987 IKA-SOL20-X11-T2-1/8-MC4-B Generator junction box
Description
Photovoltaic DC stringbox, factory-assembled by Eaton: IEC 61439-2 Appendix DD. For inverter with 1 MPP Tracker: 1x IN + 1x OUT, Integrated devices: PV surge protection device type 2, MC4 connectors at the bottom of the box, IKA-BOX 1-row.
This text is machine translated.
This text is machine translated.
Features
- Standardized string boxes tested according to IEC/EN 61439-2 Appendix DD (PVA) for residential buildings and small commercial photovoltaic applications
- IKA-SOL protects PV modules and inverters from overvoltages
- Future-proof PV installation on the building
- The ready-to-connect system solution ensures a safe PV system; prevention of costly damage due to overvoltage and failures with IKA-SOL
