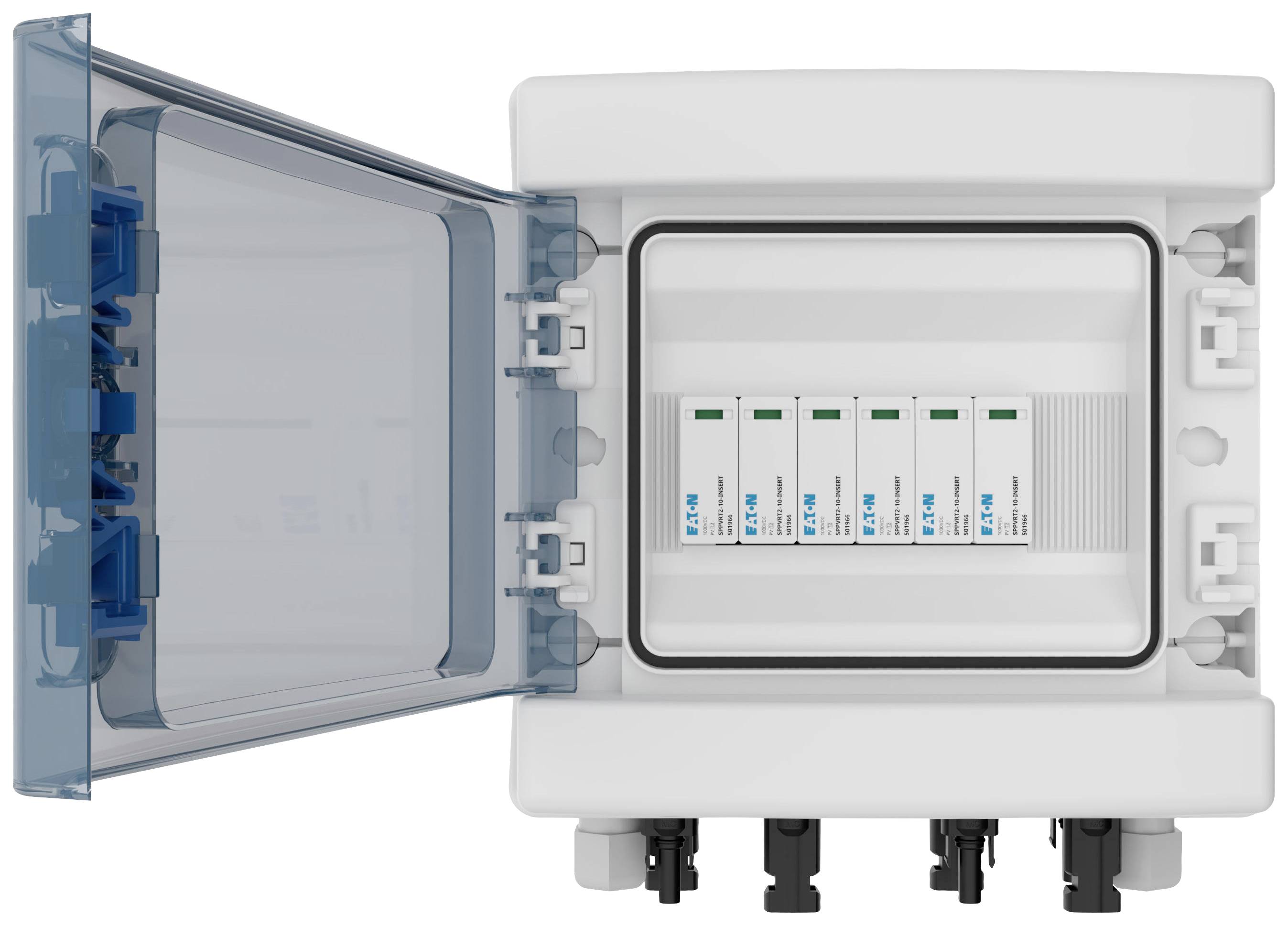

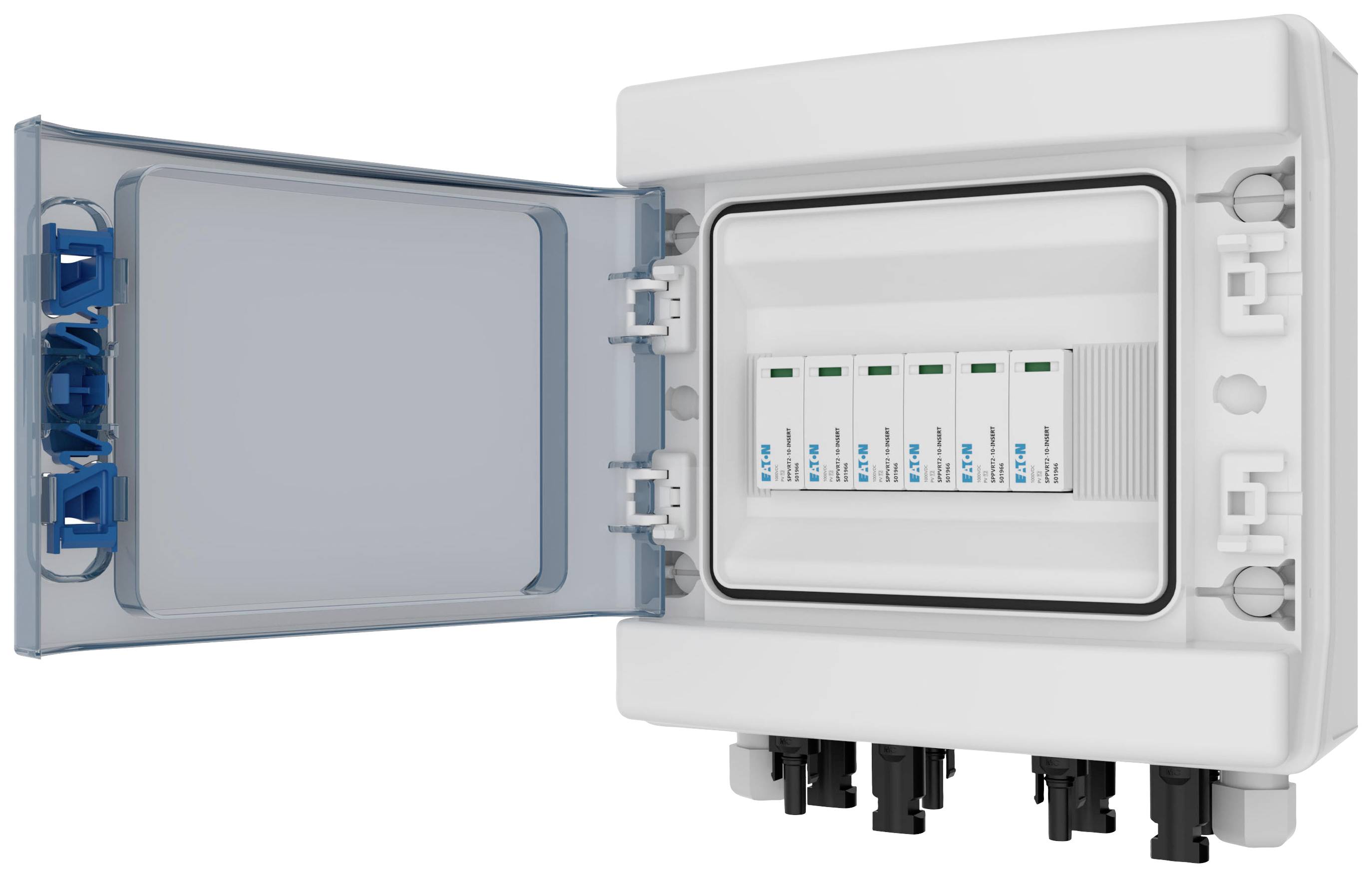

Eaton EP-501989 IKA-SOL20-X22-T2-1/8-MC4-B Generator junction box
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 315.00 / piece)
€ 315.00
incl. VAT
Only 9 Piece(s) available
Technical specifications
- Rated voltage 900 V/DC
- DC Circuit breaker switch 20 A
- Protection class: II
- Protection class IP65/IK10
- Rated current 20 A
- Protection level 3.8 kV
- Nominal leakage surge current In:20 kA
- Max. Surge current 40 kA
- MC4 connector type
- Conductor cross-section: 6 mm²
- Conductor cross-section PE: 16 - 25 mm²
- PC casing
- Product type
Generator junction box
- Dim
(L x W x H) 150 cm x 420 mm x 325 mm
- Weight
1000 g
- Factory colour
Grey (RAL 7035)
- Content
1 pc(s)
- Width
420 mm
- Height
325 mm
- Depth
150 mm
- Length
150 cm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3193624 Eaton EP-501989 IKA-SOL20-X22-T2-1/8-MC4-B Generator junction box
User & Safety Instructions
User & Safety Instructions 3193624 Eaton EP-501989 IKA-SOL20-X22-T2-1/8-MC4-B Generator junction box
Description
Photovoltaic DC stringbox, factory-assembled by Eaton: IEC 61439-2 Appendix DD. For inverter with 2 MPP Tracker: 2x IN + 2x OUT, integrated devices: PV surge protection device type 2, MC4 connectors at the bottom side of the box, IKA-BOX 1-row.
This text is machine translated.
This text is machine translated.
Features
- Standardized string boxes tested according to IEC/EN 61439-2 Appendix DD (PVA) for residential buildings and small commercial photovoltaic applications
- IKA-SOL protects PV modules and inverters from overvoltages
- Future-proof PV installation on the building
- The ready-to-connect system solution ensures a safe PV system; prevention of costly damage due to overvoltage and failures with IKA-SOL
