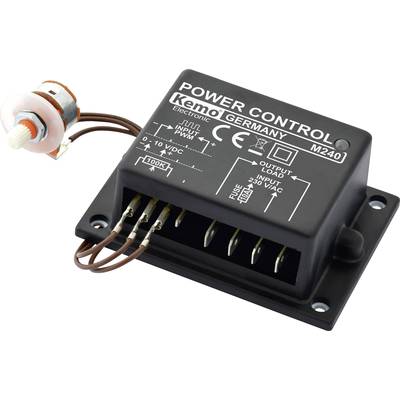

Kemo M240 Power controller Component 230 V AC 10 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Power controller M240
- Overload-proof
- 3 different control modes (potentiometer, external control voltage, external PWM signal)
Technical specifications
- Version
Component
- Dim
(L x W x H) 87 x 60 x 33 mm
- Height
33 mm
- Length
87 mm
- Width
60 mm
- Output current
10 A
- Output rating
2300 W
- Operating voltage
230 V AC
- Product type
Power controller
Documents & Downloads
Datasheet
Datasheet 2164500 Kemo M240 Power controller Component 230 V AC 10 A
User & Safety Instructions
User & Safety Instructions 2164500 Kemo M240 Power controller Component 230 V AC 10 A
Information
Information 2164500 Kemo M240 Power controller Component 230 V AC 10 A
Conformity certificate
Conformity certificate 2164500 Kemo M240 Power controller Component 230 V AC 10 A
Description
Power controller for 230 V/AC consumers such as motors, lamps, many dimmable LEDs etc. The controller is overload-proof and can be controlled via a potentiometer (100 K lin.), a control voltage (0 - 10 V) or with PWM signals (0 - 100%, 100 - 10,000 Hz).
