Name: Kendrion H2446-F-24V DC 100 ED Solenoid 0.4 N 3.5 N 24 V DC 6 W
Brand: Kendrion
SKU: 3168382
Availability: BackOrder

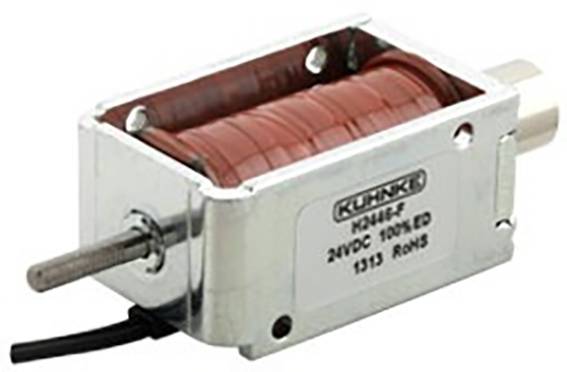

Cylindrical electromagnetic coil with red winding material, metal frame and label displaying manufacturer information and technical specifications.

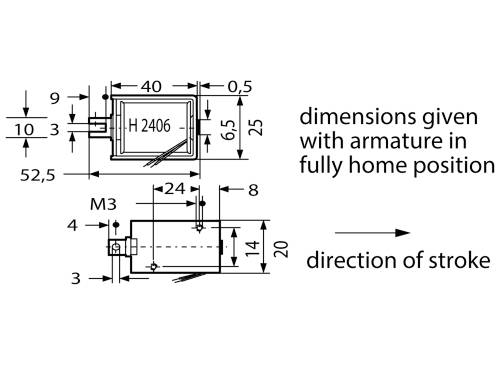

Diagram of an electromagnet with dimensions: 40x24 mm. Indications of stroke direction and armature in end position.

1/2

Product type

Solenoid

Connection

Braid

Nominal voltage

24 V DC

Nominal lift

8 mm

Power

6 W

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 16 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 97.99 / piece)

€ 97.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

LIFT MAGNET, H 2446-F-24VDC 100% ED

Our service for you

Technical specifications

Connection: Wires
Starting force 0.4 N
Design: Stalling or pulling
Power-on duration: 100 % ED
Stroke: 8 mm
Output: 6 W
Peak force 3.5 N
Nominal voltage (DC) 24 V
Return spring: No.

Product type: Solenoid

Type: H2446-F-24V DC 100 ED

Connection: Braid

Nominal voltage: 24 V DC

Nominal lift: 8 mm

: 6 W

Initial force: 0.4 N

Peak force: 3.5 N

Weight: 0.10525 kg

RoHS-compliant: Yes

Type: shock or pulling

Documents & Downloads

Datasheet

Datasheet 3168382 Kendrion H2446-F-24V DC 100 ED Solenoid 0.4 N 3.5 N 24 V DC 6 W

User & Safety Instructions

User & Safety Instructions 3168382 Kendrion H2446-F-24V DC 100 ED Solenoid 0.4 N 3.5 N 24 V DC 6 W

Description

Lift magnet Type Kuhnke H 24 Design: Open design with enclosed yoke and anchoring cone, anchor bearings in the plastic coil body for long lifetime, type H 2406: Draw magnet, type H 2446: Impact magnet, nominal stroke: 8.0 mm, nominal voltage: 24 VDC, nominal power: 6.0 W, starting force: 0.4 N, Peak force: 3.5 N, permitted relative switch-on time (ED): 100 %, connections: 100 mm long strands with free ends, insulation class: B, limit temperature: +130 °C, test voltage: 2500 Veff., magnetic weight: approx. 85 g, anchor weight: approx. 25 g Type: H 2446-F-24VDC 100% ED, lift magnet
