Buy Kendrion H3406-F-24V DC 100 ED Solenoid 0.6 N 6 N 24 V DC 8 W | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

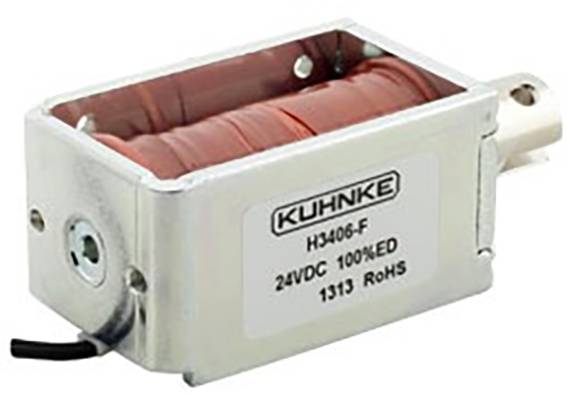

'Image of a Kuhnke electromagnet H3406-F, 24VDC and 100N. The metal frame is visible, with a red coil located within the housing.'

'Image of a Kuhnke electromagnet H3406-F, 24VDC and 100N. The metal frame is visible, with a red coil located within the housing.'

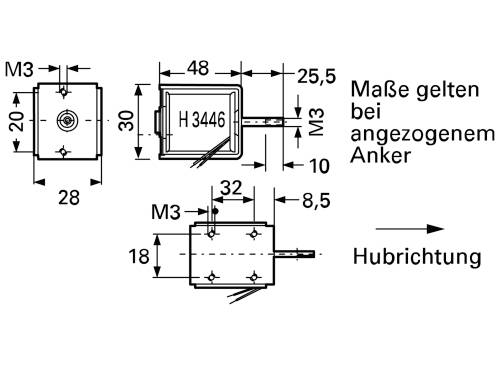

Technical drawing of an electromechanical device with dimensions, screw sizes, and labels for anchor position and stroke direction.

1/2

Kendrion

Product type

Solenoid

Connection

Braid

Nominal voltage

24 V DC

Nominal lift

10 mm

Power

8 W

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

18 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 119.99 / piece)

€ 119.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

LIFT MAGNET, H 3406-F-24VDC 100% ED

Our service for you

Technical specifications

Connection: Wires
Starting force 0.6 N
Design: Stalling or pulling
Power-on duration: 100 % ED
Stroke: 10 mm
Power: 8 W
Peak force 6 N
Nominal voltage (DC) 24 V
Return spring: No.

Product type: Solenoid

Type: H3406-F-24V DC 100 ED

Connection: Braid

Nominal voltage: 24 V DC

Nominal lift: 10 mm

: 8 W

Initial force: 0.6 N

Peak force: 6 N

Weight: 0.1843 kg

RoHS-compliant: Yes

Type: shock or pulling

Documents & Downloads

Datasheet

Datasheet 3168636 Kendrion H3406-F-24V DC 100 ED Solenoid 0.6 N 6 N 24 V DC 8 W

User & Safety Instructions

User & Safety Instructions 3168636 Kendrion H3406-F-24V DC 100 ED Solenoid 0.6 N 6 N 24 V DC 8 W

Description

Lift magnet Type Kuhnke H 34 Design: Open design with enclosed yoke and anchoring cone, anchor bearings in the plastic coil body for long lifetime, type H 3406: Draw magnet, type H 3446: Impact magnet, nominal stroke: 10 mm, nominal voltage: 24 VDC, nominal power: 8.0 W, starting force: 0.6 N, Peak force: 6.0 N, permitted relative switch-on time (ED): 100 %, connections: 100 mm long strands with free ends, insulation class: B, limit temperature: +130 °C, test voltage: 2500 Veff., magnetic weight: approx. 140 g, anchor weight: approx. 32 g Type: H 3406-F-24VDC 100% ED, lift magnet

This text is machine translated.

Description

Lift magnet Type Kuhnke H 34 Design: Open design with enclosed yoke and anchoring cone, anchor bearings in the plastic coil body for long lifetime, type H 3406: Draw magnet, type H 3446: Impact magnet, nominal stroke: 10 mm, nominal voltage: 24 VDC, nominal power: 8.0 W, starting force: 0.6 N, Peak force: 6.0 N, permitted relative switch-on time (ED): 100 %, connections: 100 mm long strands with free ends, insulation class: B, limit temperature: +130 °C, test voltage: 2500 Veff., magnetic weight: approx. 140 g, anchor weight: approx. 32 g Type: H 3406-F-24VDC 100% ED, lift magnet

This text is machine translated.
