Kendrion HU324-F-24V DC 100 ED Solenoid 0.3 N 2.4 N 24 V DC 4.2 W

A linear magnet with a red winding and rod. The label reads: 'Kuhnke HU324-F, 24VDC, 100% ED, 1313'. Product for electrical motion control.

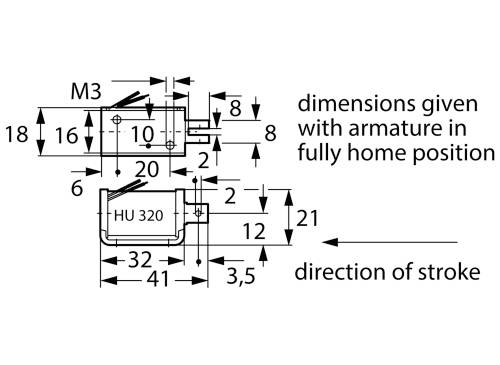

Technical drawing of a component. Dimensions are specified, e.g. 32 mm width and 21 mm stroke direction. Valve in fully retracted position.
1/2
Product type
Solenoid
Connection
Braid
Nominal voltage
24 V DC
Nominal lift
5 mm
Power
4.2 W
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 25 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 67.99 / piece)
€ 67.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

LIFT MAGNET, HU 324-F-24VDC 100% ED

Our service for you

Technical specifications

  • Connection: Wires
  • Starting force 0.3 N
  • Design: Stalling or pulling
  • Power-on duration: 100 % ED
  • Stroke: 5 mm
  • Power: 4.2 W
  • Peak force 2.4 N
  • Nominal voltage (DC) 24 V
  • Return spring: No.
Product type

Solenoid

Type

HU324-F-24V DC 100 ED

Connection

Braid

Nominal voltage

24 V DC

Nominal lift

5 mm

4.2 W

Initial force

0.3 N

Peak force

2.4 N

Weight

0.06136 kg

RoHS-compliant

Yes

Type

shock or pulling

Documents & Downloads

Datasheet

Datasheet 3168420 Kendrion HU324-F-24V DC 100 ED Solenoid 0.3 N 2.4 N 24 V DC 4.2 W

User & Safety Instructions

User & Safety Instructions 3168420 Kendrion HU324-F-24V DC 100 ED Solenoid 0.3 N 2.4 N 24 V DC 4.2 W

Description

Lift magnet Type Kuhnke HU 32 Design: Open design with open yoke and armature bearing in plastic coil body for high lifetime, type HU 320: Pull magnet, HU 324: Shock magnet, nominal stroke: 5.0 mm, nominal voltage: 24 VDC, nominal power: 4.2 W, Initial strength: 0.3 N, final force: 2.4 N, permitted relative duty cycle (ED): 100 %, connections: 100 mm long wires with free ends, insulation class: E, temperature limit: +120 ° C, testing voltage: 2500 Veff., magnetic weight: approx. 55 g, anchor weight: approx. 11 g. Type: HU 324-F-24VDC 100% ED, lifting magnet
