Buy Kendrion Poppet valve 0 up to 12 bar 1 pc(s)

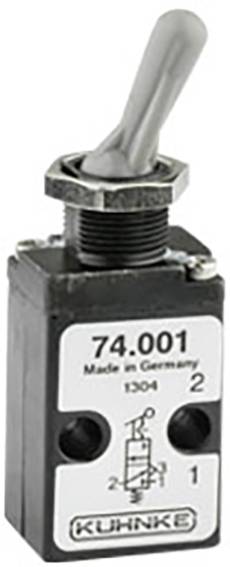

A Kuhnke toggle switch with model number 74.001, manufactured in Germany. The switch has two connection points and a lever handle.

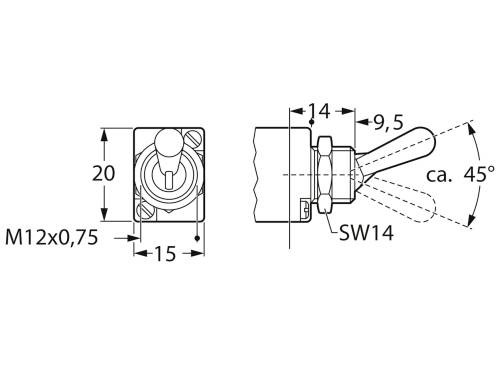

Technical drawing of a switch with dimensions: M12x0.75 thread, 20 mm height, 15 mm width. Lever has approximately 45-degree movement radius.

1/2

Datasheet (PDF)

Dispatches on Thu, 1 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 100.83 / piece)

€ 100.83

plus VAT.

Report legal concerns

Technical specifications

M5 connector
Design: 3/2-way NC seat valve
Pressure range 0-12 bar
Nominal width 2 mm

Type: 3/2-way NC seat valve

Manufacturer part #: 74.001

Connection: M5 plug connector

Max. operating pressure: 12 bar

Operating pressure (min.): 0 bar

Pressure range: 0 up to 12 bar

Nominal width: 2 mm

Documents & Downloads

Datasheet

Datasheet 3168423 Kendrion Poppet valve 0 up to 12 bar 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3168423 Kendrion Poppet valve 0 up to 12 bar 1 pc(s)

Description

Seat valves directly controlled type Kuhnke 74.00. Specially designed for use in control panels and actuators; pressure range: 0 to 12 bar, nominal width: 2.0 mm, function: 3/2-way, material housing: Zinc alloy, plunger: Brass, Guide bearing: polyamide, installation position: arbitrary, pressure medium connection: M 5, Medium: filtered (5.0 µm) oiled or filtered non-oiled compressed air or other gaseous media with permissible viscosity according to ISO-VG 10, ambient temperature: –10 to +60°C. Design with hand lever type 74,001. Operating force at 6, ; 0 bar: Approx. 4.5 N, type: 74,001, seat valve

This text is machine translated.
