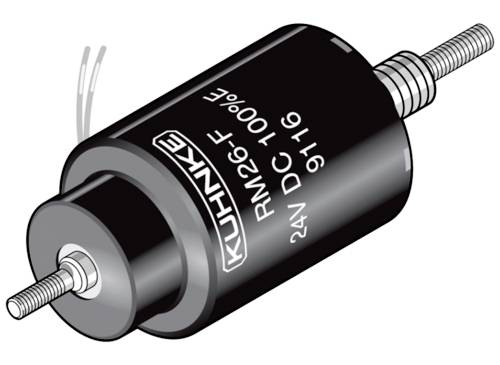

Kendrion RM 26-R-F-24V DC 100 ED Solenoid bidirectional 1.9 N 6 N 24 V DC 5.5 W
EAN:
Part number:
Item no:
Number
Total (€ 259.66 / piece)
€ 259.66
plus VAT.
Technical specifications
- Connection: Wires
- Starting force 1.9 N
- Design: Shock and pulling
- Power-on duration: 100 % ED
- Stroke: 4 mm
- Power: 5.5 W
- Peak force 6 N
- Nominal voltage (DC) 24 V
- Return spring: Yes
- Type
RM 26-R-F-24V DC 100 ED
- Type
bidirectional
- Connection
Braid
- Cable length
100 mm
- Nominal voltage
24 V DC
- Nominal lift
4 mm
- Travel (max.)
4.0 mm
5.5 W
- Initial force
1.9 N
- Peak force
6 N
- Temperature limit
130 °C
- Temperature limit (max.)
130 °C
- Time interval setting
100 %
- Weight
0.1173 kg
- RoHS-compliant
Yes
- Type
shock and pulling
- Product type
Solenoid
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3168819 Kendrion RM 26-R-F-24V DC 100 ED Solenoid bidirectional 1.9 N 6 N 24 V DC 5.5 W
Description
High-power lift magnet type Kuhnke RM 26. With internal return spring, single-acting; Design: Combined magnet (draft and impact magnet), maintenance-free armature bearing (DU-bearings) for highest requirements, nominal stroke: 4.0 mm, nominal voltage: 24 VDC, nominal power: 5.5 W, initial force: 1.9 N, Peak force: 6.0 N, permitted relative switch-on time (ED): 100 %, connection: 100 mm long wire, insulation class: B, limit temperature: +130 °C, testing voltage: 800 Veff., magnetic weight: approx. 117 g, anchor weight: approx. 24 g Type: RM 26-R-F-24VDC 100% ED, lift magnet
