Name: Kern EG 2200-2NM Precision scales Weight range 2.2 kg Readability 0.01 g via PSU Silver
Brand: Kern
SKU: 755497
Availability: InStock

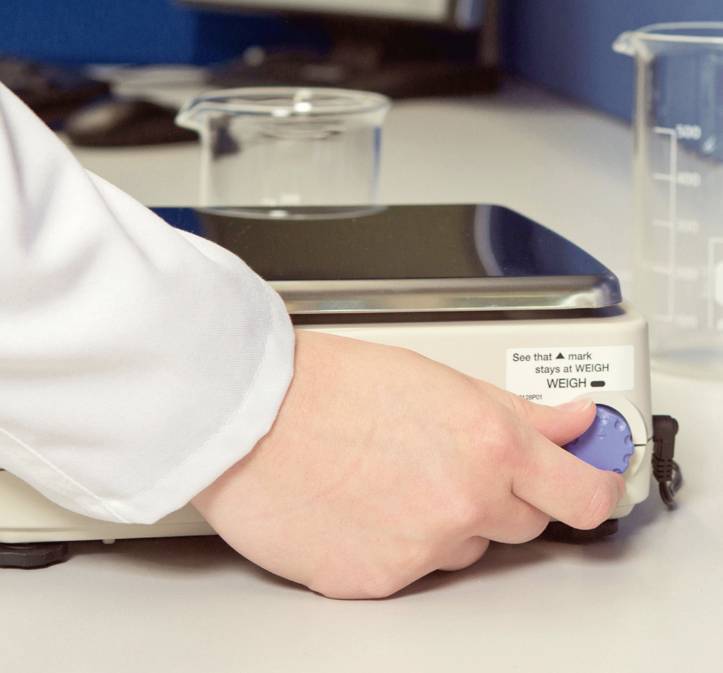

A hand turns the blue button of a laboratory device. Measuring beakers stand in the background. The device is used for weighing or heating in laboratory environments.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

20 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,399.00 / piece)

€ 1,399.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Precision balance with type approval, class II 0,01 g : 2200 g

Top of the range cost-effectiveness
with EC type approval [M]

Technical specifications

Series: EG

Weight range: 2.2 kg

Product type: Precision scales

Weight resolution: .01 g

Readability: 0.01 g

Weighing plate dimensions: 180 × 160 mm

Load capacity: 2200 g

Display: Digital

Power supply (LOV): via PSU

: Manufacturer's standards (no certificate)

Factory colour: Silver

Power supply (details): 220 V - 240 V/AC 50 Hz

Dim: (L x W x H) 235 x 180 x 75 mm

Weight: 4 kg

Calibratable: Yes

Weighing plate: Stainless steel

Width: 180 mm

Height: 75 mm

Length: 235 mm

Reproducibility: 0.01 g

Type: EG 2200-2NM

Features: Calibratable
Counting
Calibratable

Top plate (width): 180 mm

Top plate (length): 160 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 755497 Kern EG 2200-2NM Precision scales Weight range 2.2 kg Readability 0.01 g via PSU Silver

User & Safety Instructions

User & Safety Instructions 755497 Kern EG 2200-2NM Precision scales Weight range 2.2 kg Readability 0.01 g via PSU Silver

Information

Information 755497 Kern EG 2200-2NM Precision scales Weight range 2.2 kg Readability 0.01 g via PSU Silver

Description

- Only the EC NM: Internal Justierschaltung (CAL) via rotary knob on the side guarantees high accuracy and makes the location - only EW-NM: Adjustment program CAL to adjust the accuracy, external test weights against more price-capacity display: an increasing light strip shows the remaining weighing range of accurate figures: The automatic reference optimisation gradually improves the average value of the piece weight-wagon with tolerance range (programd): Enter a upper/lower limit. A visual signal supports the portioned, dosing and sorting-wind protection standard for models with weighing plate size. Removable cover with opening for pipetting, 158 x 130 x 78 mmTechnische weighing room wxdxh data - Large LCD display, digit height 17 mm dimensions weighing plate (stainless steel)-mm, large illustrated - 170 x 142 mm 180 x 160 mm overall dimensions (without wind protection), 182 x 235 x 75 mm - WXDXH - 192 x 265 x 87 mm, weight approx. 1.3 kg-permitted ambient temperature range 10°C / 30°C

This text is machine translated.

Features

only EG-NM: Internal adjustment (CAL) by rotary knob on the side. Guarantees high degree of accuracy and makes the location irrelevant
only EW-NM: Adjusting program CAL for quick setting of the balance accuracy, external test weights at an additional price
Capacity display: A bar lights up to show how much of the weighing range is still available
Precise counting: The automatic optimisation of reference weight gradually improves the average value of the piece weight
Weighing with tolerance range (checkweighing): Input of an upper/lower limit value. A visual signal assists with portion division or grading
Draft shield standard for models with weighing plate sizes . Removable metal cover with pipette opening, weighing space WxDxH 158x130x78 mm|Technical data
Large LCD display, digit height 17 mm
Dimensions of weighing plate (stainless steel)
mm, see larger picture
170x142 mm
180x160 mm
Overall dimensions (without draft shield) WxDxH
, 182x235x75 mm
192x265x87 mm
Net weight approx. 1,3 kg
Permissible ambient temperature 10 °C / 30 °C

Hints

The selected product is a calibration approved part.If there is a need to be calibrated according to EU directives, please order the conformity assessment (calibration) via the optional accessories.Subsequent initial calibration is not possible.In the case of articles with first-time verification, the right of withdrawal is fundamentally excluded.Under the EU Directive 2014/31/EU, scales must be officially conformity-assessed ("calibrated") when used as follows:a) in the course of business, if the price of a commodity is determined by weighing.b) in the manufacture of medicinal products in pharmacies and in analyzes in the medical and pharmaceutical laboratories.c) for official purposes.d) in the manufacture of prepackages.e) in medicine.
