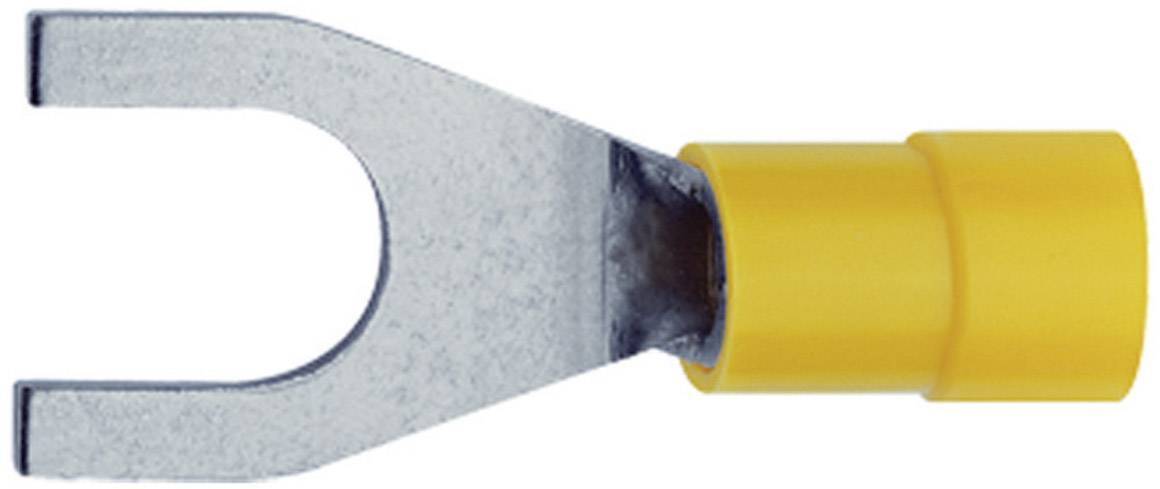

Klauke 650C4 U terminal 4 mm² 6 mm² Hole Ø=4.3 mm Partially insulated Yellow 1 pc(s)
Product type
U terminal
Thread size
M4
Hole Ø
4.3 mm
Insulation type
Partially insulated
Contact material
Cathode copper, tin plated
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 7
Total (€ 0.52 / piece)
€ 0.52
incl. VAT
14-day return policy included
Highlights & Details
Klauke 650C4 U terminal 4 mm² 6 mm² Hole Ø=4.3 mm Partially insulated Yellow 1 pc(s)
- Yellow
- Cross section (max.): 6 mm²
Technical specifications
- Product type
U terminal
- Factory colour
Yellow
- Thread size
M4
- Hole Ø
4.3 mm
- Insulation type
Partially insulated
- Contact material
Cathode copper, tin plated
- Content
1 pc(s)
- Manufacturer part #
650C4
- Type
650C4
- max. cross section
6 mm²
- Min. cross section
4 mm²
- Insulation material
PA
- Cross-section range
4 - 6 mm²
- RoHS-compliant
Yes
- Support sleeve
No
- Temperature range
up to +105 °C
- Material (details)
Cu-ETP, tin-plated
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 716296 Klauke 650C4 U terminal 4 mm² 6 mm² Hole Ø=4.3 mm Partially insulated Yellow 1 pc(s)
User & Safety Instructions
User & Safety Instructions 716296 Klauke 650C4 U terminal 4 mm² 6 mm² Hole Ø=4.3 mm Partially insulated Yellow 1 pc(s)
Description
For fine and ultra-fine stranded conductors. Hard soldered in crimping area. Quick and easy installation through direct screw mounting. Manufactured according to DIN 46237 with flared insulating sleeve. Halogen-free.
