Name: Klauke EKM6022CFB Hydraulic hand press 18 V 2.0 Ah Li-ion
Brand: Klauke
SKU: 3737790
Availability: InStock

A blue cordless hydraulic crimping tool with black grip and attachment at the top, labeled '18V Li-ion'. Designed for cable connections.

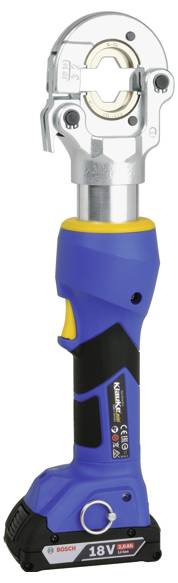

A blue and black 18V battery-powered hydraulic crimping tool with ergonomic handle and metal jaw for electrical work.

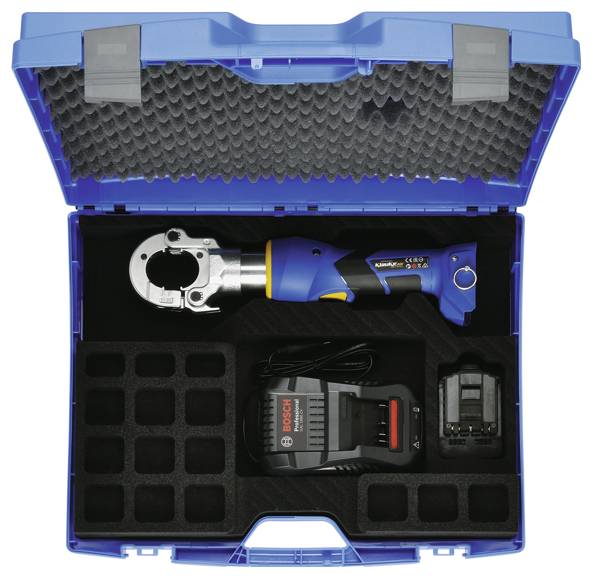

Blue L-BOXX case open, showing hydraulic crimping tool on top, battery charger, and storage compartments within the foam inserts.

1/3

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 3,999.00 / piece)

€ 3,999.00

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Accuhydraulic press tool, mini, for K22, Next Gen, 6-300mm², Bosch battery 2 Ah

18 V/2.0 Ah Li-ion battery

Technical specifications

Battery charging time 15 min
Stroke: 17.5 mm
Press force 60 kN

Product type: Hydraulic hand press

Voltage: 18 V

Capacity (mAh, Ah): 2.0 Ah

Technology: Li-ion

Weight: 3 kg

Operating temperature (max.): +40 °C

Operating temperature (min.): -10 °C

Press duration: 5 s

max. cross section: 300 mm²

Min. cross section: 6 mm²

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3737790 Klauke EKM6022CFB Hydraulic hand press 18 V 2.0 Ah Li-ion

Security datasheet

Security datasheet 3737790 Klauke EKM6022CFB Hydraulic hand press 18 V 2.0 Ah Li-ion

Description

Slim head - Ideal with critical space requirements. For replaceable inserts from the 22 series, narrow press. Closed press head, foldable, rotatable. Electronic control and monitoring of pressing process. Integrated pressure measurement with visual and acoustic signals in the event of a fault. Evaluation function via Bluetooth, optical interface and USB adapter. One-button operating concept for controlling all tool functions Ergonomic 2-component plastic housing with soft inserts for comfortable and secure single-handed operation. Balanced center of gravity for simple handling and fatigue-free working. LED for work-room lighting Powerful 18V Li-ion rechargeable battery with very high capacity and extremely short charging time. Powerful motors for maximum working speed. Motor quick stop for high user safety. Automatic rewind after complete crimping Manual reverse if required. Automatic reverse stop (ARS) for position control in case of multiple crimping. LED display for displaying tool data. Multi-function LED for maintenance display, battery charging status and data transfer via USB adapter. Environmentally friendly hydraulic oil, rapidly biodegradable.

This text is machine translated.
