Name: Klauke ES32ML Cordless hydraulic cutter 10.8 V 2.5 Ah Li-ion
Brand: Klauke
SKU: 3209144
Availability: InStock

Electric cutting tool with a blue handle, suitable for cutting metal cables.

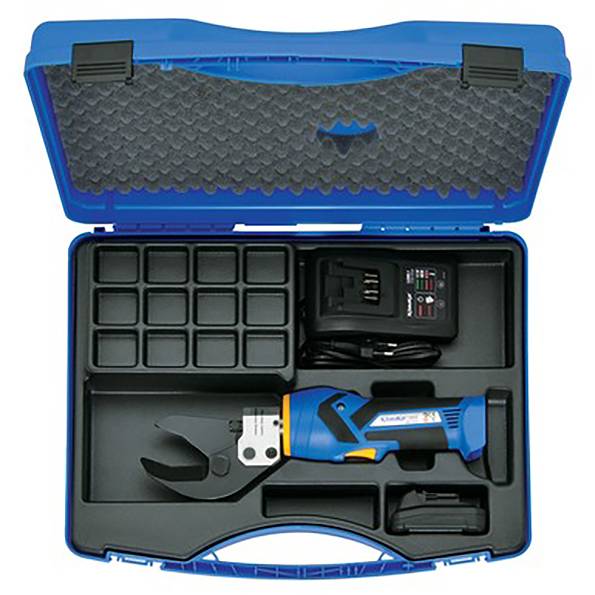

A blue toolbox with an open pair of scissors, charger, and power sockets. The scissors are blue-grey and suitable for professional use.

1/2

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

9 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,575.00 / piece)

€ 1,575.00

incl. VAT

Only 9 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Battery-hydraulic cutting tool Ø 32 mm

10.8 V/2.5 Ah Li-ion battery

Technical specifications

Number of cuts: ES32ML: Approx. 100 at 150 mm² NYY, ES32FML: Approx. 150 at H07V-K 185 mm²
Battery charging time: Approx. 45 min.

Product type: Cordless hydraulic cutter

Voltage: 10.8 V

Capacity (mAh, Ah): 2.5 Ah

Technology: Li-ion

No. of power packs included: 1

Weight: 1.8 kg

Operating temperature (max.): +40 °C

Operating temperature (min.): -10 °C

max. cross section: 120 mm²

Min. cross section: 6 mm²

Cutting diameter (max.): 32 mm

Cutting force: 15 kN

Cutting time (max.): 10 s

: FALSE

: 440 m

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3209144 Klauke ES32ML Cordless hydraulic cutter 10.8 V 2.5 Ah Li-ion

User & Safety Instructions

User & Safety Instructions 3209144 Klauke ES32ML Cordless hydraulic cutter 10.8 V 2.5 Ah Li-ion

Description

Battery-hydraulic cutting tool, 32 mm diameter, for cutting copper and aluminum cables, open cutting head, rotatable, electronic control and monitoring of the cutting process, one-button operating concept for controlling all tool functions, ergonomic design for comfortable one-handed operation, low dead weight for fatigue-free working, powerful 10.8 V Li-ion battery technology with charging status indicator, motor quick stop for high user safety, automatic rewind after completed cut, manual return if required, multi-function LED for maintenance display and data transfer via USB adapter, environmentally friendly hydraulic oil, rapidly biodegradable.

Features:
· Open head, rotatable
· Electronic control and monitoring of the working process
· Simple and safe: One-button operating concept for controlling all tool functions
· Comfortable and secure one-handed use through ergonomic 2-component plastic housing with soft inlay
· Fatigue-free Operation through low weight
· Simple and safe: Automatic reverse after complete operation
· Maintenance display by means of LED

This text is machine translated.
