1/3
Knipex 01 06 190 VDE Comb pliers 190 mm DIN ISO 5746, DIN EN 60900
EAN:
Part number:
Item no:
Number
Total (€ 31.08 / piece)
€ 31.08
plus VAT.

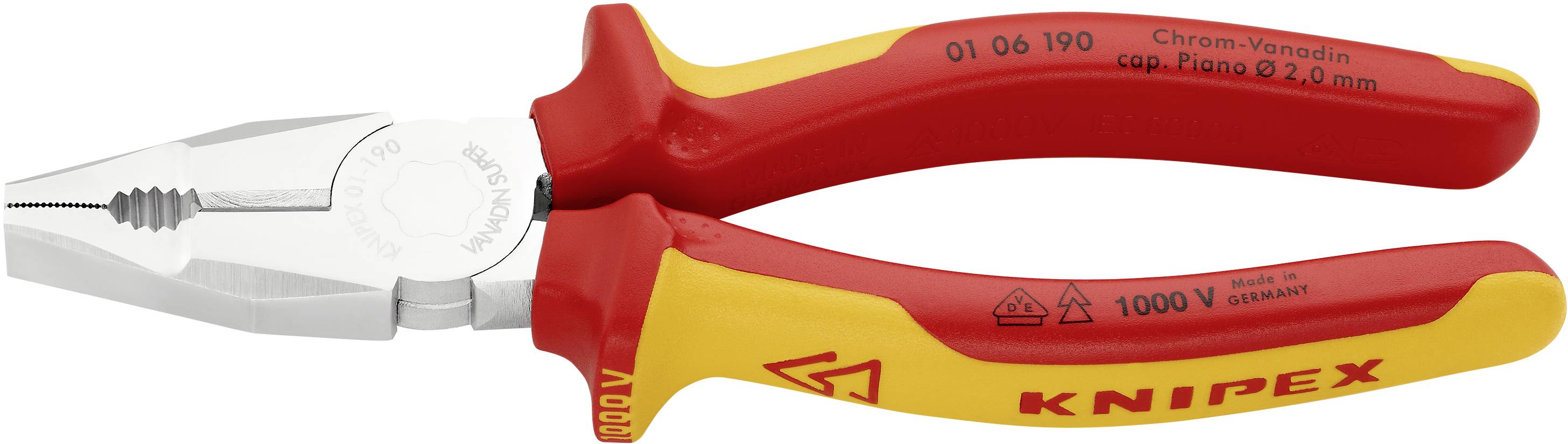

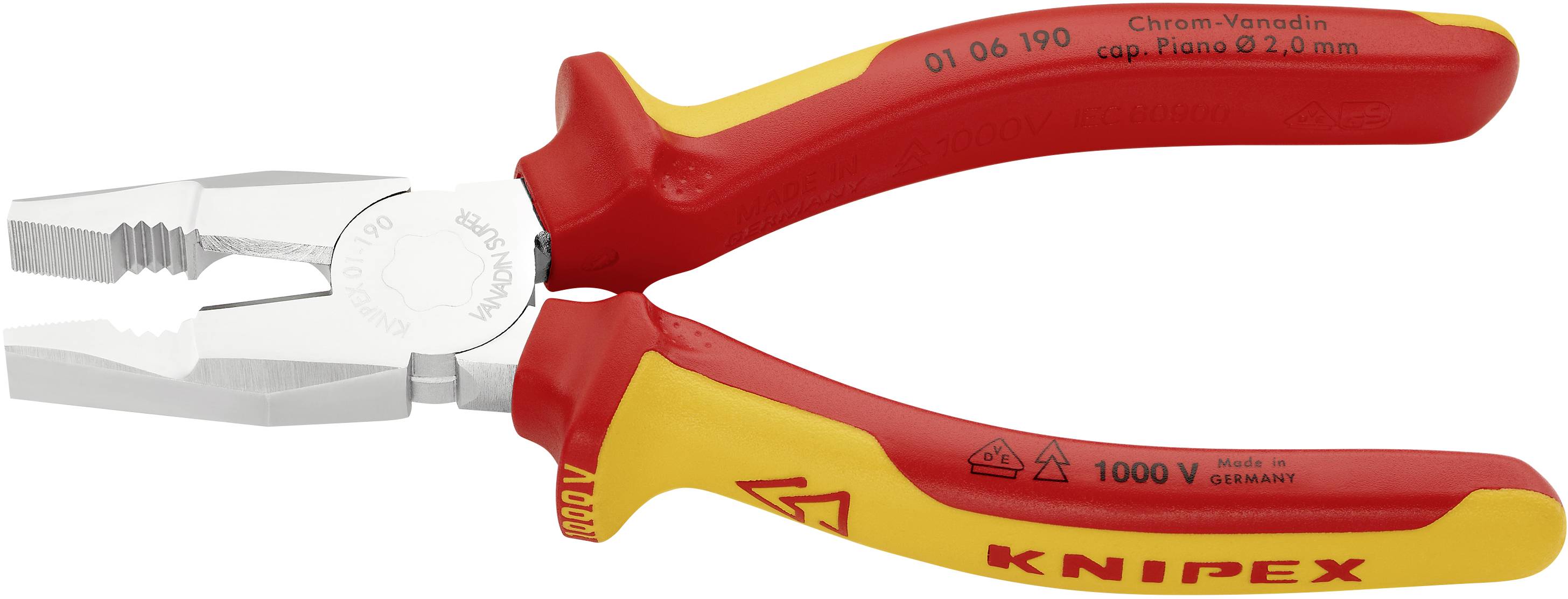

Knipex 01 06 190 VDE Comb pliers 190 mm DIN ISO 5746, DIN EN 60900
Highlights & Details
- With gripping zones for flat and round material, suitable for versatile use
- With cutting edges for soft, hard and piano wire
- Long cutting edges for thicker cables
- Cutting edges additionally induction hardened, cutting edge hardness approx. 64 HRC
- Particularly wear resistant gripping jaws; hardness of the gripping jaws approx. 53 HRC
- Chrome vanadium heavy-duty steel, forged, oil-hardened
Technical specifications
- Cutting value max. 25 mm²
- Product type
Comb pliers
- Manufacturer part #
01 06 190
- Range of use
VDE
- Length
190 mm
- Material
Chromium-vanadium steel
- Material properties
chrome plated
tempered
- Edge hardness
64 HRC
- Wire hardness (max.) hard wire
2.5 mm
- Wire hardness piano wire (max.)
2 mm
- DIN standard
DIN ISO 5746
DIN EN 60900
- Weight
320 g
- Width
30 mm
- Height
65 mm
- EN standard
EN 60900
- Type
01 06 190
- Standards
ISO 5746
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 823284 Knipex 01 06 190 VDE Comb pliers 190 mm DIN ISO 5746, DIN EN 60900
Conformity certificate
Conformity certificate 823284 Knipex 01 06 190 VDE Comb pliers 190 mm DIN ISO 5746, DIN EN 60900
Description
For the most demanding applications. With grip zones for flat and round material for a versatile use With cutting edges for soft and hard wire and piano wire. Long cutting for thicker cables. Induction hardened blades. Blade hardness approx. 64 HRC Especially wear-resistant gripping jaws, Hardness of grip jaws approx. 53 HRC. Chrome-vanadium high speed steel, forged, oil-hardened multi-level
This text is machine translated.
This text is machine translated.
Features
- With a long cutting edge for thicker cables and wear-resistant gripping jaws for the toughest continuous stress
- hardness of the gripping jaws about 53 HRC
- from chrome vanadium electric steel, Hardened by oil
- cutting edges additionally induction hardened chrome Pincer head.
