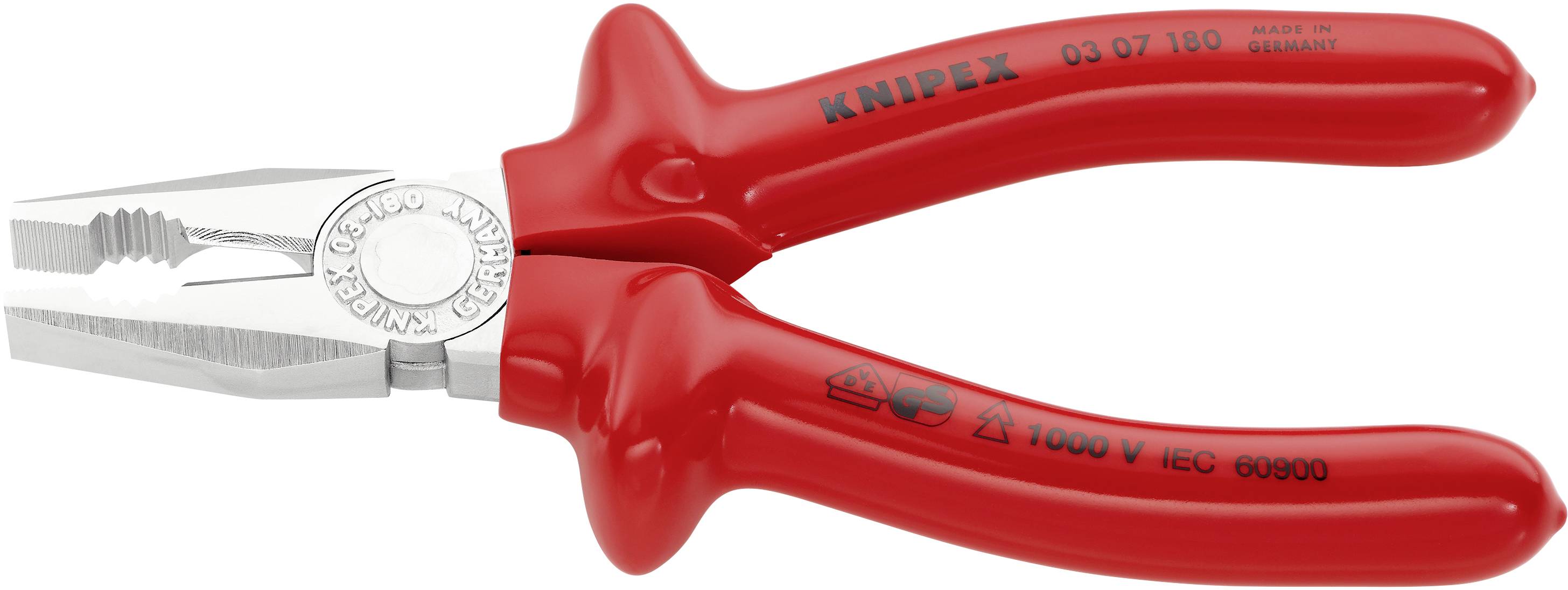

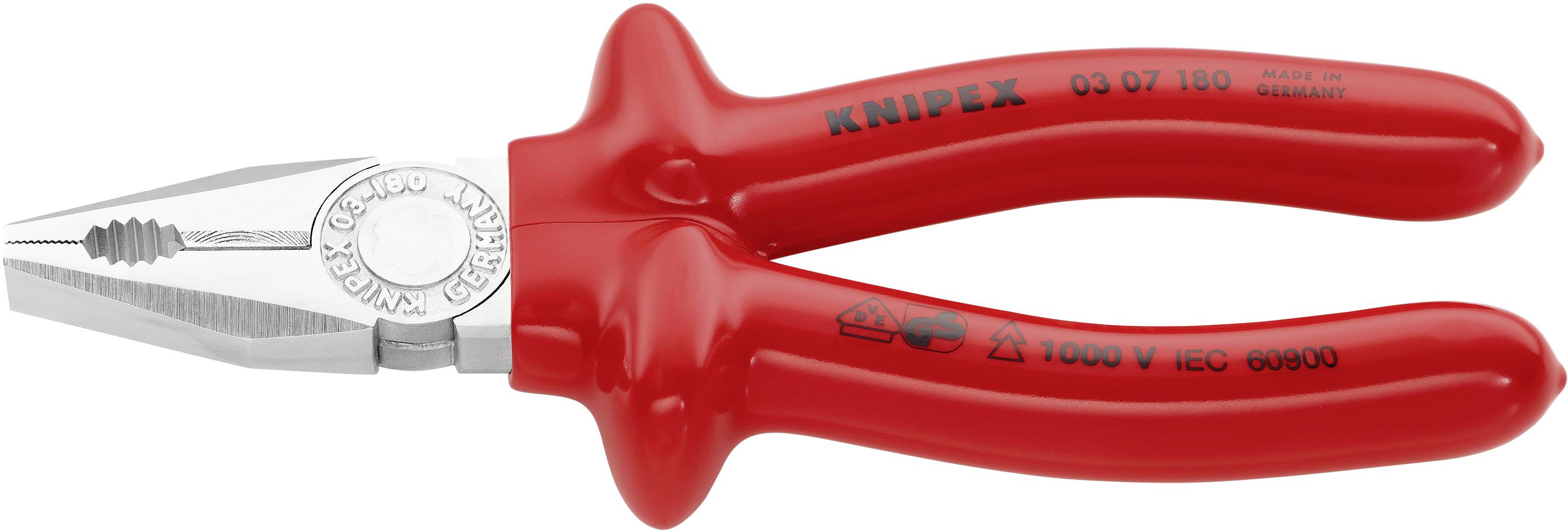

Knipex 03 07 180 VDE Comb pliers 180 mm DIN ISO 5746, DIN EN 60900
EAN:
Part number:
Item no:
Number
Total (€ 31.99 / piece)
€ 31.99
incl. VAT
Only 10 Piece(s) available
Highlights & Details
Combination pliers
- With gripping zones for flat and round material, suitable for versatile use
- With cutting edges for soft and hard wire
- Long cutting edges for thicker cables
- Cutting edges additionally induction hardened, cutting edge hardness approx. 60 HRC
- Special tool steel, forged, oil-hardened
Technical specifications
- Cutting value for medium-hard wire 3.40 mm dia.
- Cutting value for hard wire 2.20 mm dia.
- Cutting value for copper cables, multi-wired (dia.) 12.00 mm
- Cutting value for copper cables, multi-wired 16.00 mm²
- Product type
Comb pliers
- Manufacturer part #
03 07 180
- Range of use
VDE
- Length
180 mm
- Material
Tool steel
- Material properties
chrome plated
tempered
- Edge hardness
60 HRC
- Wire hardness (max.) medium wire
3.4 mm
- Wire hardness (max.) hard wire
2.2 mm
- DIN standard
DIN ISO 5746
DIN EN 60900
- Weight
285 g
- Width
65 mm
- EN standard
EN 60900
- Type
03 07 180
- Standards
DIN ISO 5746
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 822037 Knipex 03 07 180 VDE Comb pliers 180 mm DIN ISO 5746, DIN EN 60900
Description
With grip zones for flat and round material for a versatile use With cutting edges for soft and hard wire Long cutting for thicker cables. Induction hardened blades. Blade hardness approx. 60 HRC Special tool steel, forged, oil-hardened multi-level
This text is machine translated.
This text is machine translated.
Features
- Gripping zones for flat and round materials for versatile use
- Blades for soft and hard wire
- Long blades for thicker cables
- Induction hardened blades. Blade hardness approx. 60 HRC
