Knipex 74 05 140 Workshop Kraft side cutter non-flush type 140 mm

Side cutters with red and blue handles, labelled with 'Knipex' and model information on the metal.
Side cutters with red and blue handles, suitable for cutting wires up to 1.5 mm thick, from the Knipex brand.

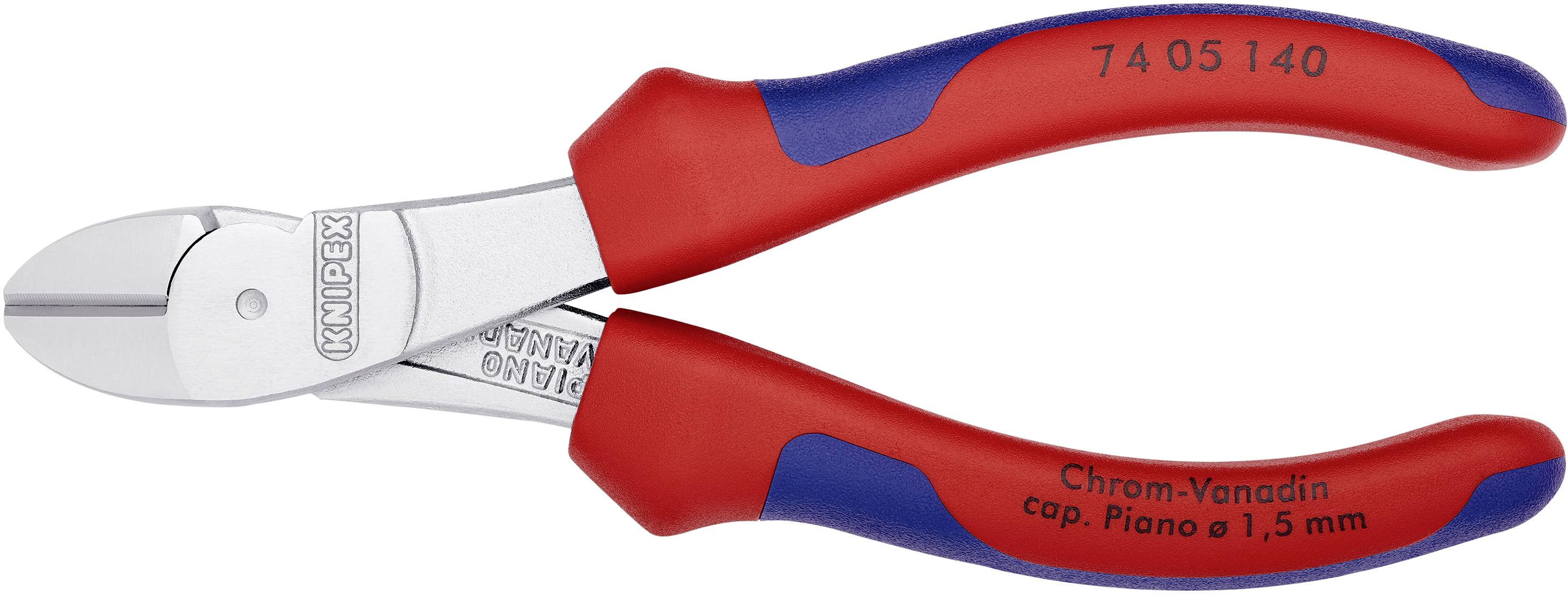

Side cutters with red and blue handles, silver blades; 'Knipex' brand, model number '74 05 140' printed on the handle.
A Knipex pliers grips a metal spring. The tool shows an adjustable gripping surface and red handles.
Side cutters with a black handle cut a cable. The workpiece is made of metal, and the tool is from the Knipex brand.
1/5
EAN:
Part number:
Item no:
Dispatches on Wed 11 Nov
10 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 29.99 / piece)
€ 29.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 10 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

High leverage diagonal cutters

  • For heavy-duty, continuous use
  • High cutting power with low application of force through optimum matching of cutting angle and transmission ratio
  • Precision cutting edges additionally induction hardened, cutting edge hardness approx. 64 HRC) for all sorts of wire, including piano wire
  • Chrome-vanadium high speed steel, forged, oil-hardened multi-level
  • 'A green and a red arrow point in opposite directions on a grey background, symbolising conflict or choice.'

Technical specifications

Product type

Kraft side cutter

Manufacturer part #

74 05 140

Range of use

Workshop

Length

140 mm

Material

Chromium-vanadium steel

Material properties

tempered

chrome plated

Edge hardness

64 HRC

Wire hardness (max.) medium wire

3.1 mm

Wire hardness (max.) hard wire

2.0 mm

Wire hardness piano wire (max.)

1.5 mm

DIN standard

DIN ISO 5749

Width

54 mm

Weight

157 g

Features

non-flush type

Type

Power side-cutter

Type

74 05 140

Standards

DIN ISO 5749

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 822280 Knipex 74 05 140 Workshop Kraft side cutter non-flush type 140 mm

Description

With forged joint axle for very tough, continuous use Ideal for all sorts of wire, including piano wire High cutting power with low application of force through optimum matching of cutting angle and transmission ratio Precision cutting edges additionally induction hardened, cutting edge hardness approx. 64 HRC Chrome-vanadium high speed steel, forged, oil-hardened multi-level

This text is machine translated.

Features

  • With forged joint axle for very tough, continuous use
  • Ideal for all sorts of wire, including piano wire
  • High cutting performance with minimum effort thanks to optimum co-ordination of the cutting edge angle and transmission ratio
  • Precision cutting edges additionally induction hardened, cutting edge hardness approx. 64 HRC
