Name: Knipex 77 02 130 Electrical & precision engineering Side cutter non-flush type 130 mm
Brand: Knipex
SKU: 822308
Availability: InStock

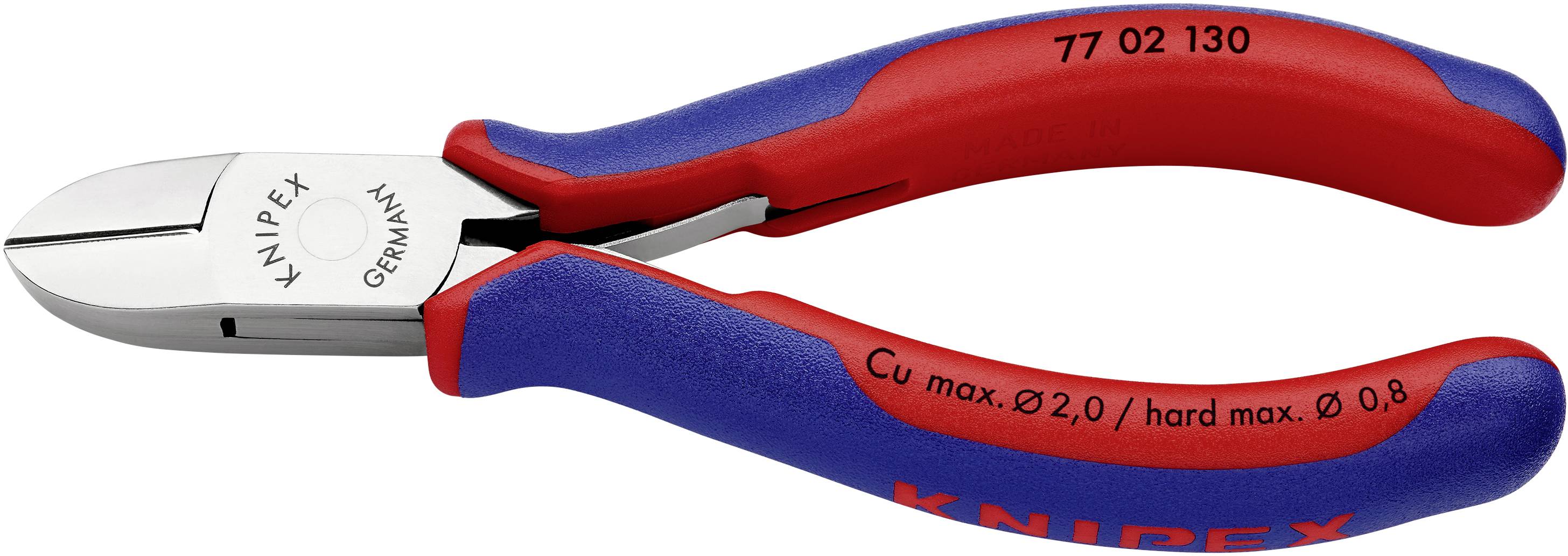

Side cutters with blue and red handles. 'Knipex Germany' inscription and specifications for cable diameter.

Side cutters by Knipex, model number 77 02 130, with blue and red handles, suitable for copper and hard wires.

A red and blue Knipex pliers with the inscription 'Cu max. Ø2.0 / hard max. Ø0.8', used for cutting wires.

1/3

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

39 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 39.99 / piece)

€ 39.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Electronics side cutter

Precision pliers for very fine cutting work such as electronics and precision engineering.
Load optimized design for a more direct work feeling
Stable box joint free from play
Low-friction dual spring for gentle and even opening
The polishing or mirror polishing (design 2 only) and fine oil film offer excellent protection against rust - no interference in the circuit by flaking chrome parts

Technical specifications

Head-dim. A 15.00 mm
B 18.00 mm
D 9.50 mm

Product type: Side cutter

Manufacturer part #: 77 02 130

Range of use: Electrical & precision engineering

Length: 130 mm

Material: Tool steel

Material properties: tempered
polishing

Edge hardness: 62 HRC

Wire hardness (max.) soft wire: 2 mm

Wire hardness (max.) medium wire: 1.5 mm

Wire hardness (max.) hard wire: 0.8 mm

DIN standard: DIN ISO 9654

Width: 60 mm

Height: 50 mm

Weight: 124 g

Features: non-flush type

Type: Round head with facet

Type: 77 02 130

Standards: DIN ISO 9654

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 822308 Knipex 77 02 130 Electrical & precision engineering Side cutter non-flush type 130 mm

Description

Precision pliers for the finest cutting work e.g. in electronics and precision mechanics.

Features

Precision box joint hinge
Low-friction double spring for gentle and even opening
The mirror polishing offers together with a fine oil film a excellent protection against rust - no interference in the circuits through peeling chromium parts
Blades also induction-hardened.
