Name: Knipex 77 52 115 ESD ESD Side cutter non-flush type 115 mm
Brand: Knipex
SKU: 822318
Availability: SoldOut

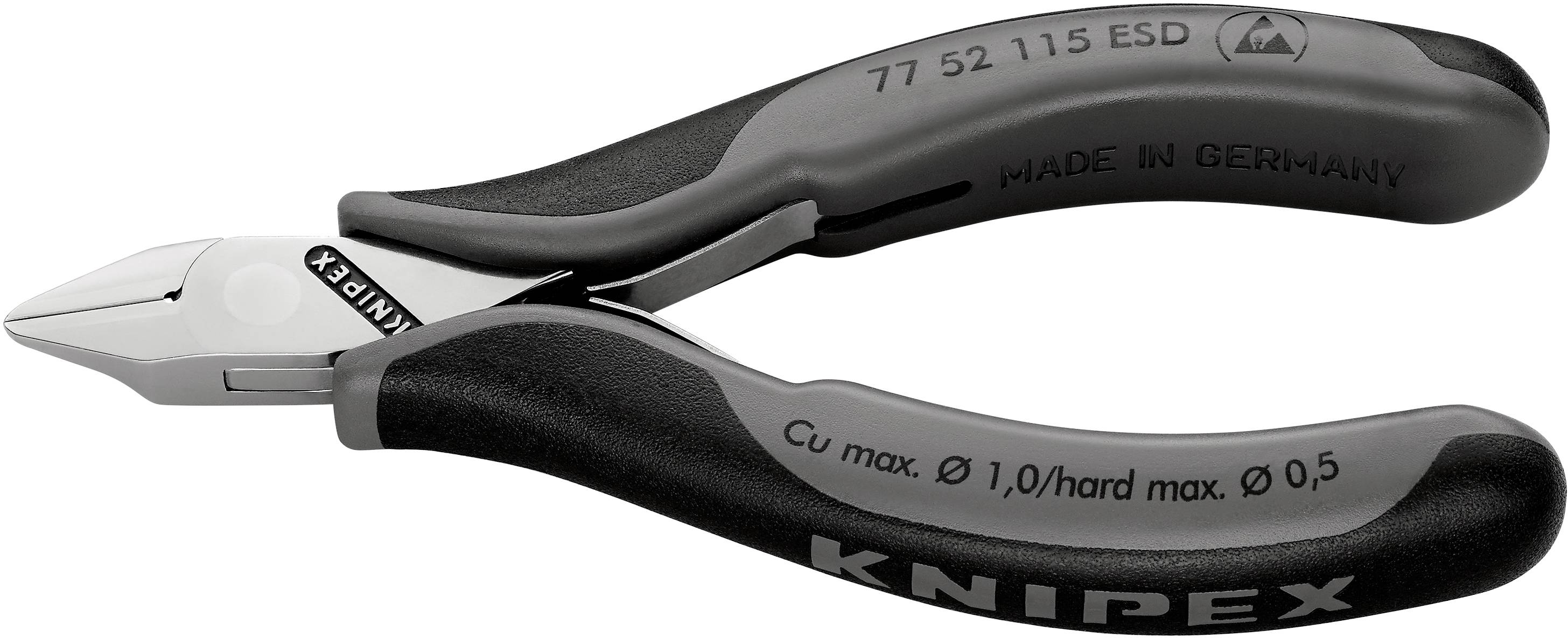

Side cutters by Knipex, Model 77 52 115 ESD, suitable for copper wires up to 1 mm diameter, Made in Germany.

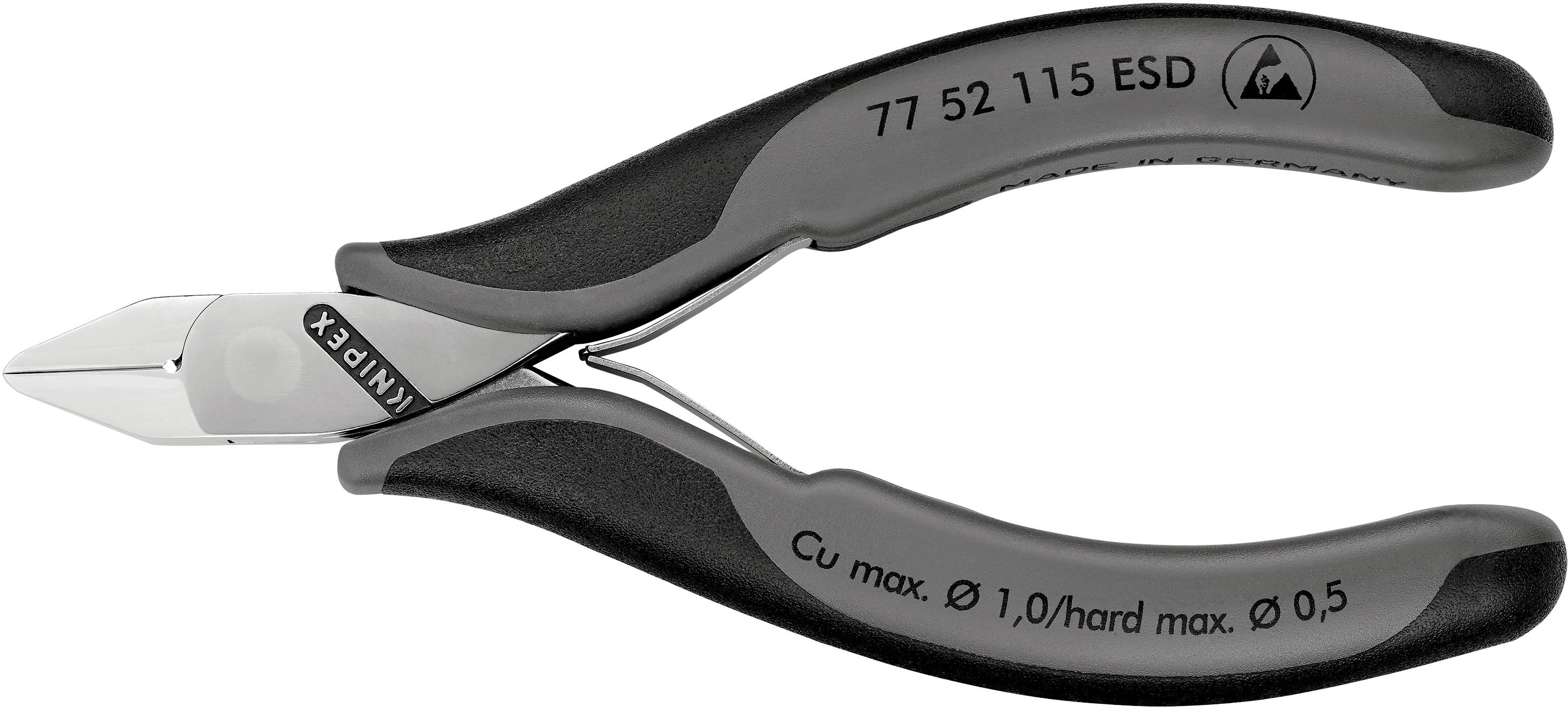

A black side-cutting pliers with the inscription 'Knipex'. It is suitable for cutting thin wires, standing on a white background.

1/2

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 42.99 / piece)

€ 42.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Electronic side-cutter ESD

Precision pliers for very fine cutting work such as electronics and precision engineering.
Handles Electrically discharging design - dissipative
Stable box joint free from play
Low-friction dual spring for gentle and even opening
The mirror polishing offers together with a fine oil film a excellent protection against rust - no interference in the circuits through peeling chromium parts

Technical specifications

Head dimensions A 14.00 mm
B 11.50 mm
D 7.00 mm

Product type: Side cutter

Manufacturer part #: 77 52 115 ESD

Range of use: ESD

Length: 115 mm

Material: Tool steel

Material properties: tempered
polishing

Edge hardness: 62 HRC

Wire hardness (max.) soft wire: 1 mm

Wire hardness (max.) medium wire: 0.8 mm

Wire hardness (max.) hard wire: 0.5 mm

DIN standard: DIN ISO 9654
DIN EN 61340-5

Width: 60 mm

Height: 15 mm

Weight: 79 g

Features: non-flush type

Type: ESD

Type: 77 52 115 ESD

Standards: DIN ISO 9654

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 822318 Knipex 77 52 115 ESD ESD Side cutter non-flush type 115 mm

Description

Ausgekehlter Pointed, flat head, with a small facet. Cutting hardness about 60 HRC. Precision pliers for fine cutting work e.g. in electronics and precision mechanics. Handles Electrically discharging design - dissipative. Precision box joint hinge Low-friction dual spring for gentle and even opening The mirror polishing offers together with a fine oil film a excellent protection against rust - no interference in the circuits through peeling chromium parts Blades also induction-hardened. Grips with two-coloured multi-component grip colours black/grey Cutting head: special tool steel in special quality, forged, oil-hardened

This text is machine translated.

Features

Precision pliers for ultra-fine cutting work e.g. in electronics and precision mechanics.
Grips with two-coloured multi-component grip colours black/grey
Blades are also induction-hardened
The mirror polishing offers together with a fine oil film a excellent protection against rust - no interference in the circuits through peeling chromium parts
Low-friction double spring for gentle and even opening
Precision box joint hinge
Electrically discharging design – dissipative

Description

Features

Precision pliers for ultra-fine cutting work e.g. in electronics and precision mechanics.
Grips with two-coloured multi-component grip colours black/grey
Blades are also induction-hardened
The mirror polishing offers together with a fine oil film a excellent protection against rust - no interference in the circuits through peeling chromium parts
Low-friction double spring for gentle and even opening
Precision box joint hinge
Electrically discharging design – dissipative
