Name: Knipex 90 25 20 Pipe cutters 210 mm
Brand: Knipex
SKU: 822383
Availability: InStock

Crimping pliers with red and blue handles and inscription: 'KNIPEX 90 25 20 GERMANY', for cable diameters of 12-25 mm and 18-35 mm.

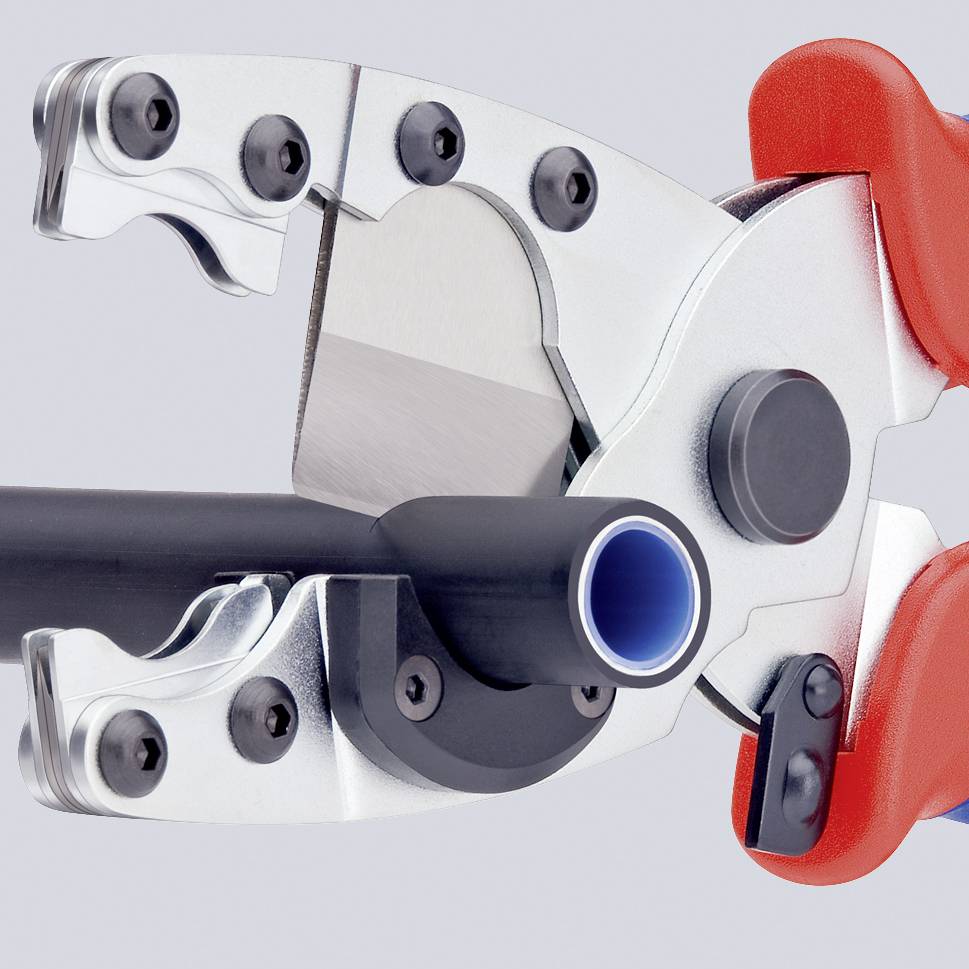

A metal cutting device is slicing through a plastic pipe. The pipe is black with a blue inner edge.

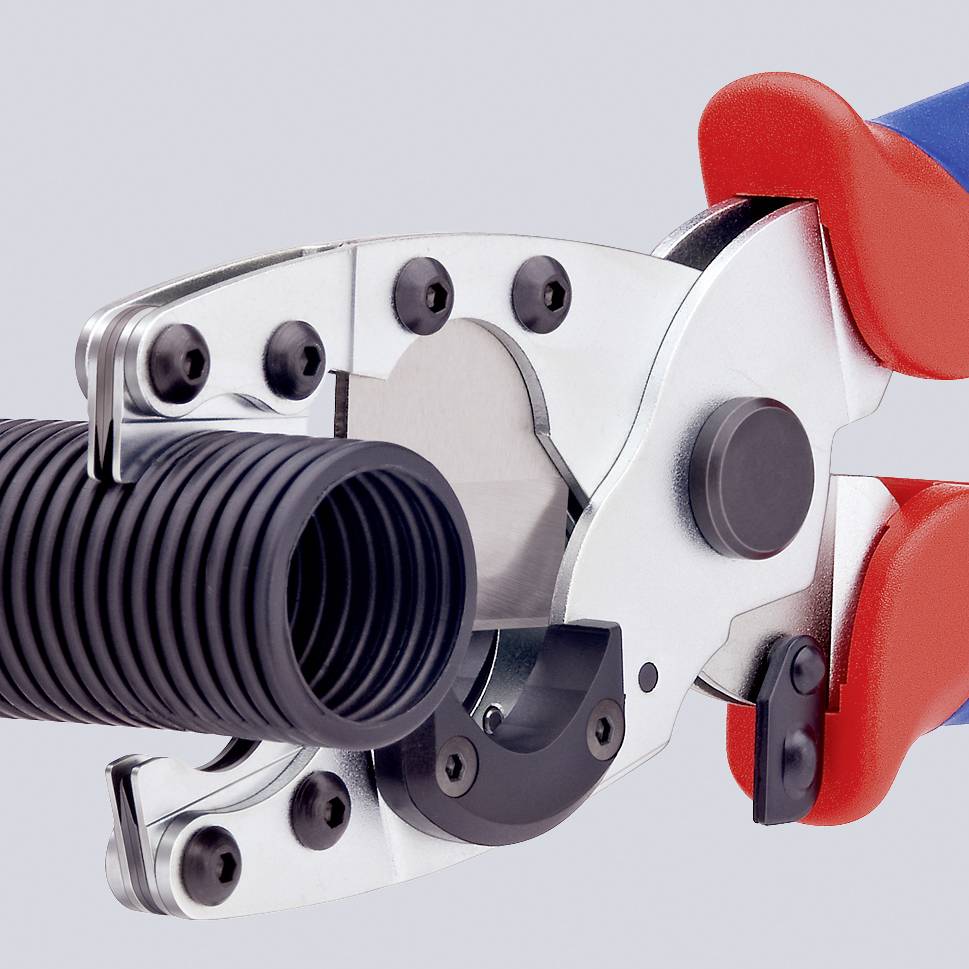

Close-up of a metal pliers with a red and blue handle, gripping a black, ribbed pipe. Focus on the tool and the pipe.

A red and blue Knipex cable cutter, suitable for cable diameters of 12-35 mm, from Germany.

1/5

EAN:

Part number:

Item no:

Fast track dispatch on Tue 3 Nov

9 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 83.99 / piece)

€ 83.99

incl. VAT

Only 9 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Pipe cutter for composite and protective pipes

For cutting of composite pipes Ø 12 until 25, mm and for cutting flexible protection pipes Ø 18 mm, up to 35, without the inner tube to hurt
Possibility for attachment of a calibration drift, for example, for geberit composite pipes Ø 11.5 and 15, mm
Tool body: chromium-vanadium electro-steel in special quality, oil hardened
Knife: special tool steel, oil-hardened, replaceable
For cutting of composite pipes Ø 12 until 25, mm and for cutting flexible protection pipes Ø 18 mm, up to 35, without the inner tube to hurt

Technical specifications

25 mm blade length

Product type: Pipe cutter

Length: 210 mm

Dim: (L x W) 210 mm x 70 mm

Weight: 332 g

Material: Chromium-vanadium electric furnace steel

Material properties: tempered
zinc plated

Width: 70 mm

Wire hardness diameter (max.): 35 mm

Cutting length: 25 mm

Type: 90 25 20

Material suitability: Composite pipes/lexible protective pipes

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 822383 Knipex 90 25 20 Pipe cutters 210 mm

Description

For cutting of composite pipes Ø 12.0 to 25.0 mm and for cutting flexible protection pipes Ø 18.0 to 35.0 mm without the inner tube to infringe. Easily changeable blades. Possibility for attachment of a calibration drift, for example, for composite pipes Ø 11.5 and 15.0 mm geberit. High-strength special steel, hardened and tempered in oil. Knife: special tool steel, oil-hardened, can be replaced. Tool body: chromium-vanadium electro-steel in special quality, oil hardened.

This text is machine translated.

Features

For cutting of composite pipes Ø 12.0 - 25.0 mm and for cutting flexible protection pipes Ø 18.0 - 35.0 mm without violating the inner tube
Possibility for attachment of a calibration drift, for example, for geberit composite pipes Ø 11.5 and 15.0 mm
Tool body: chromium-vanadium electro-steel in special quality, oil hardened, tool galvanised, grips with multi-component covers.
Knife: special tool steel, oil-hardened, replaceable
This text is machine translated.

Description

Features

For cutting of composite pipes Ø 12.0 - 25.0 mm and for cutting flexible protection pipes Ø 18.0 - 35.0 mm without violating the inner tube
Possibility for attachment of a calibration drift, for example, for geberit composite pipes Ø 11.5 and 15.0 mm
Tool body: chromium-vanadium electro-steel in special quality, oil hardened, tool galvanised, grips with multi-component covers.
Knife: special tool steel, oil-hardened, replaceable
This text is machine translated.
