Buy Knipex 95 12 200 Cable cutting scissors Suitable for (cable stripping) Single/multi-core aluminium and copper cables 20

Specialised pliers by Knipex, suitable for cutting cables up to 70 mm². Handle with blue and red rubber grips for improved grip.

Knipex cable cutters with red and blue handle and black blade. Label reads 'do not cut steel', suitable for aluminium.

A cable cutter with red and blue handles, black cutting head, suitable for copper and aluminium, maximum diameter 20 mm.

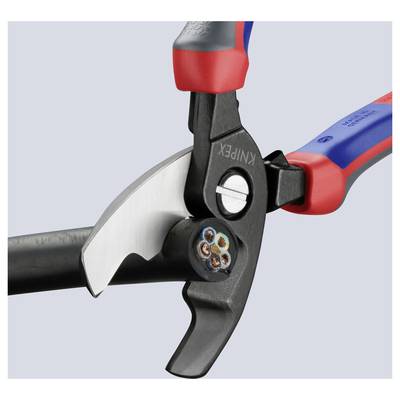

Pliers cutting an electrical cable. Close-up shows blades and severed cable wires.

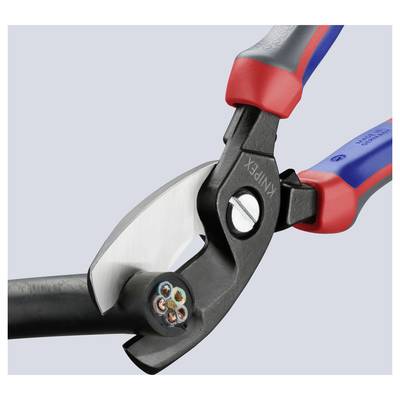

A cable cutter effortlessly cuts through a multi-core cable. The blades are sharp and precise, with the handle providing a secure grip.

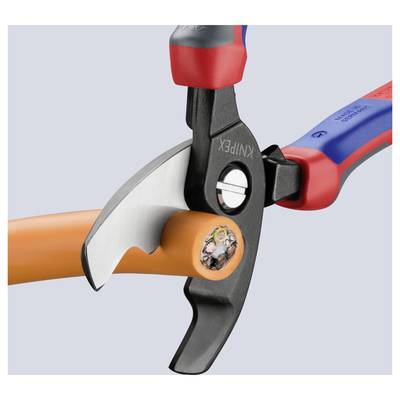

Pliers with a red and blue handle cutting an orange cable.

An electrical wire cutter slices through a thick cable with copper wires. The pliers have red and blue handles for better grip.

Wire cutters cutting a cable. Plastic sheathing and cable wires are visible. Main function: cable separation.

1/8

Datasheet (PDF)

Fast track dispatch on Wed, 30 Sep

97 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 42.01 / piece)

€ 42.01

plus VAT.

14-day return policy included

Report legal concerns

Cable shears with double cut KNIPEX 95 12 200

Highlights & Details

Up to max. 70 mm²

Technical specifications

Product type: Cable cutting scissors

Manufacturer part #: 95 12 200

Suitable for: Single/multi-core aluminium and copper cables

Length: 200 mm

Material: Tool steel

Material properties: burnished
tempered

Wire hardness diameter (max.): 20 mm

Wire hardness cross section (max.): 70 mm²

Wire hardness cross section AWG (max.): 2

Weight: 324 g

Type: 95 12 200

Material suitability: Suitable for aluminium and copper cables, single- and multistrand · Not suitable for steel wire and hard-drawn copper wire.

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 822399 Knipex 95 12 200 Cable cutting scissors Suitable for (cable stripping) Single/multi-core aluminium and copper cables 20

User & Safety Instructions

User & Safety Instructions 822399 Knipex 95 12 200 Cable cutting scissors Suitable for (cable stripping) Single/multi-core aluminium and copper cables 20

Description

For cutting Cu and Al cables, one-strand or multi-strand. Not suitable for steel wire or wire ropes Hardened cutting with precision-cut Cuts smoothly and cleanly, without deforming the cable. Easy cut for one-hand operation. With pre and post-cut (1. and 2. Blade) cables up to Ø 20 mm can also be separated. Low application of force through favorable translation ratios and special cutting geometry. With pinch protection. Adjustable screw joint, self-securing. Forged. Special tool steel in special quality, forged, oil-hardened

This text is machine translated.

Features

With pre and post-cut (1st and 2nd cut)
Low effort needed because of the favourable gear ratio and new cutting geometry.
Grips with multi-component covers
