Name: Knipex Super-Knips 78 71 125 ESD ESD Print pliers flush-cutting 125 mm
Brand: Knipex
SKU: 822326
Availability: InStock

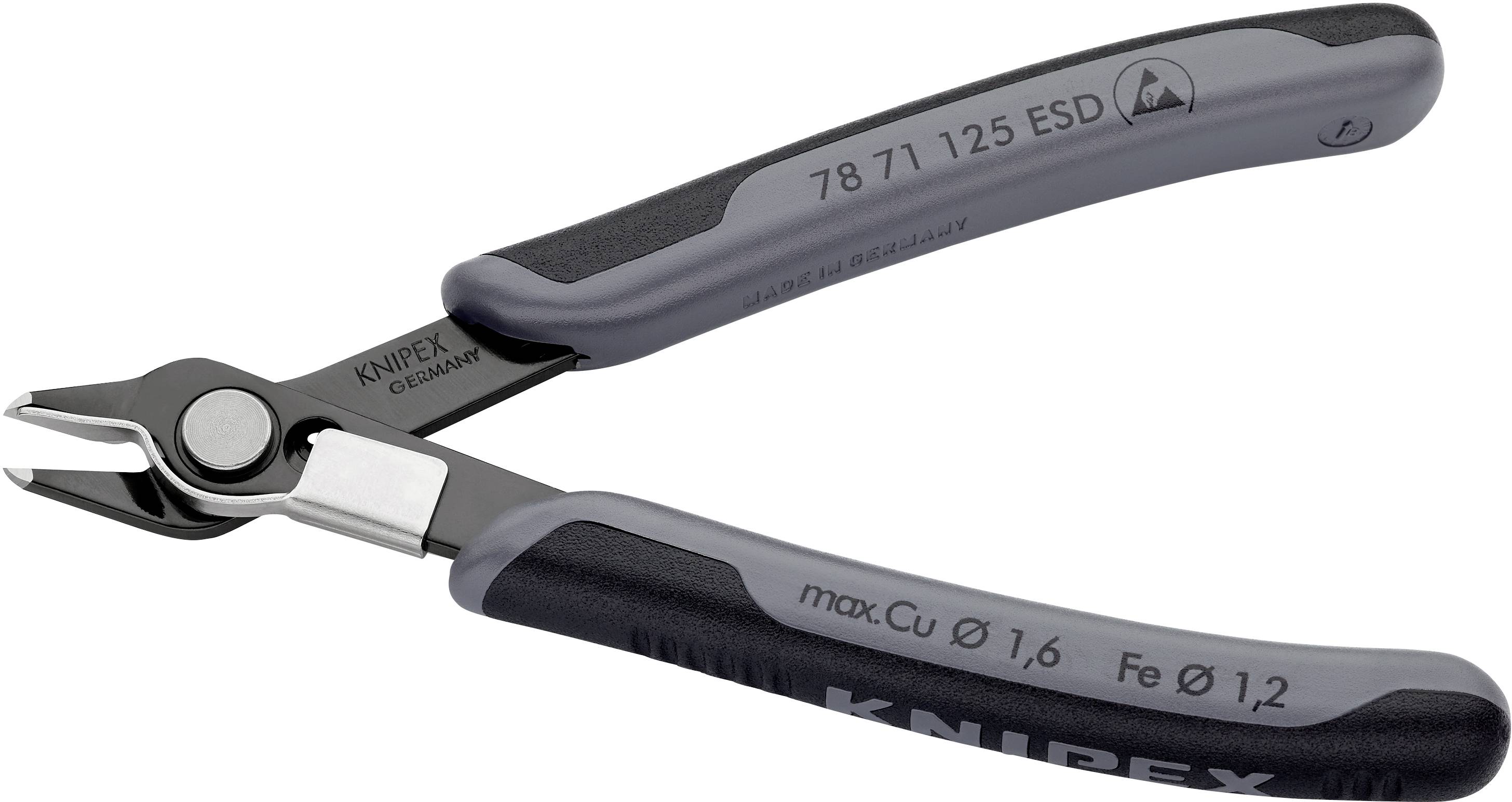

Pliers with grey and black handle, marked as Knipex, suitable for copper wires up to 1.6 mm and iron wires up to 1.2 mm.

A pair of pliers cuts a wire on a circuit board next to blue capacitors and other electronic components.

Electronics side-cutting pliers by Knipex with grey and black handles. ESD-safe, specified for max. wire diameter: Cu Ø 1.6 mm, Fe Ø 1.2 mm.

'A hand holds a side cutter and cuts a thin wire above a circuit board.'

Pictured is a black pair of pliers with grey handles, labelled with technical specifications and the trademark.

1/5

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

37 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 24.99 / piece)

€ 24.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Electronic Super-Knips® ESD

Precision pliers for ultra-fine cutting work e.g. in electronics and precision mechanics.
Handles Electrically discharging design - dissipative
Ground, very sharp cutting edges without facet
Shear cut with controlled micro cutting edges offset for ultra-precise cutting even thin latest wires and long service life.
Precisely shaped cut tops and adjacent wires of Ø.2 mm

Technical specifications

Head dimensions A 13.50 mm
B 9.00 mm
D 7.50 mm
Material special tool steel in special quality, oil hardened

Product type: Print pliers

Manufacturer part #: 78 71 125 ESD

Range of use: ESD

Length: 125 mm

Material: Tool steel

Material properties: burnished

Edge hardness: 64 HRC

Wire hardness (max.) soft wire: 1.6 mm

Wire hardness (max.) medium wire: 1.2 mm

DIN standard: DIN ISO 9654
DIN EN 61340-5

Width: 65 mm

Height: 10 mm

Weight: 57 g

Features: flush-cutting

Type: ESD

Type: 78 71 125 ESD

Standards: DIN ISO 9654

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 822326 Knipex Super-Knips 78 71 125 ESD ESD Print pliers flush-cutting 125 mm

Description

With wire clamp - no uncontrolled shingling of wire segments. Induction hardened blades. Blade hardness approx. 64 HRC Special tool steel, browned Precision pliers for fine cutting work e.g. in electronics and precision mechanics. Handles Electrically discharging design - dissipative. Ground, very sharp blades without face. Shear cut with controlled micro cutting edges offset for ultra-precise cutting even thin latest wires and long life. Precisely shaped cut tops and adjacent wires of Ø 0.2 mm. Joint with stainless steel rivet. Extremely soft motion for fatigue-free working With opening spring and opening limit. Grips with two-coloured multi-component grip colours black/grey Special tool steel in special quality, oil hardened

This text is machine translated.

Features

Precision pliers for the finest cutting work e.g. in electronics and precision mechanics.
Design electrically draining - dissipative
Precision-ground blades without face for even cutting.
Precise-shaped tips separate even the adjacent wires starting from Ø 0.2mm
Joint with stainless steel rivet
Extremely soft motion for fatigue-free working
With opening spring and limit stop
Grips with two-coloured multi-component grip colours black/grey

Description

Features

Precision pliers for the finest cutting work e.g. in electronics and precision mechanics.
Design electrically draining - dissipative
Precision-ground blades without face for even cutting.
Precise-shaped tips separate even the adjacent wires starting from Ø 0.2mm
Joint with stainless steel rivet
Extremely soft motion for fatigue-free working
With opening spring and limit stop
Grips with two-coloured multi-component grip colours black/grey
