Buy Knipex X-Cut 73 06 160 VDE Side cutter non-flush type 160 mm

A person is using side cutters to cut through a cable. The cables are white and run to a wall socket.

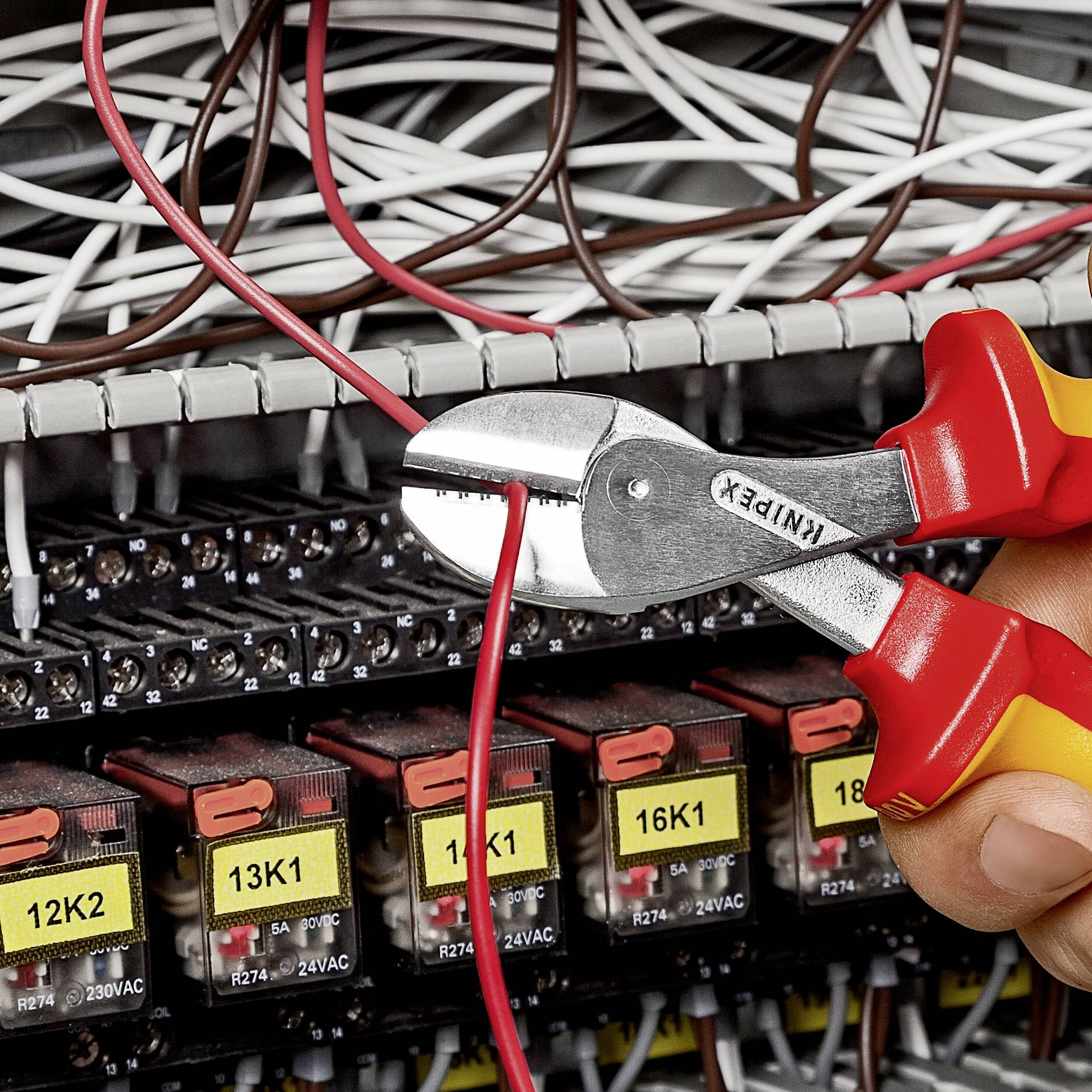

Close-up of hands using side cutters to pull a red cable from an electrical cabinet.

A person is cutting an electrical cable with an insulated side cutter in an electrical cabinet.

Insulated Knipex combination pliers with red and yellow handles, suitable for work up to 1000 volts. Made in Germany.

A person is cutting a white cable with red and yellow side cutters.

A pair of pliers cuts through a black metal spring wire. Focus on the blades and the spiral in the background.

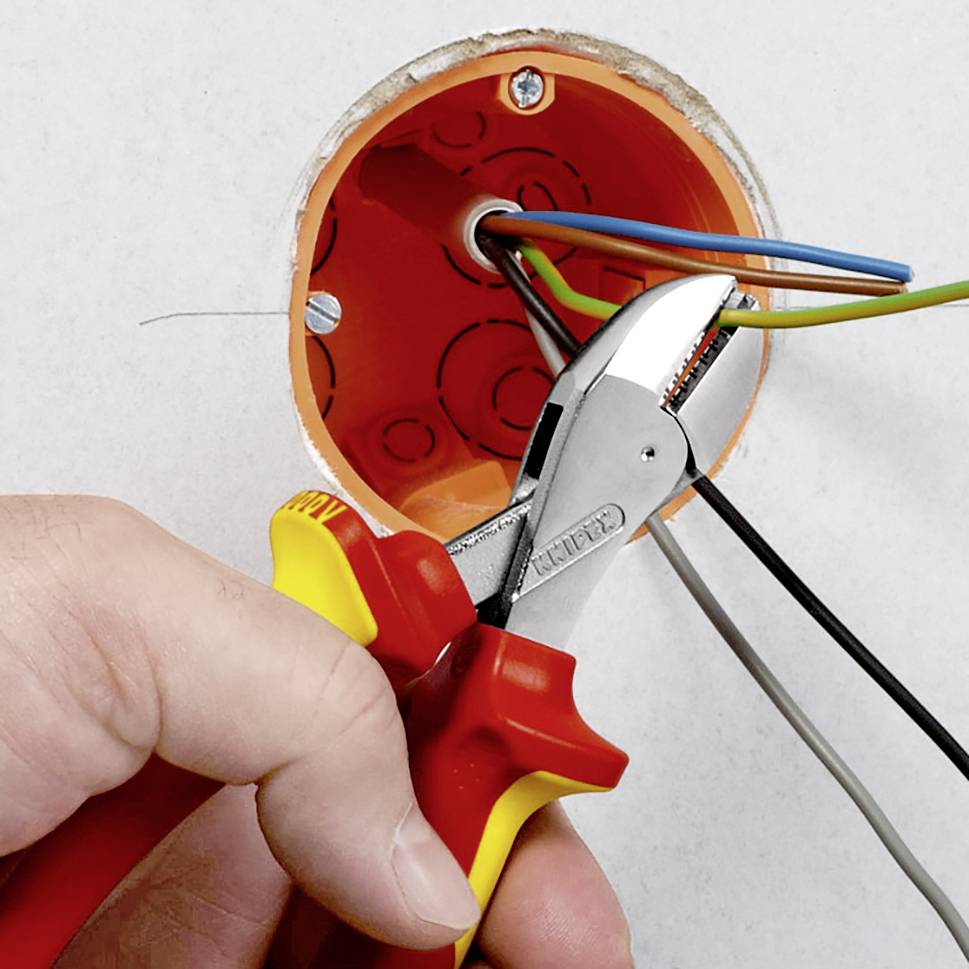

A hand is holding pliers to connect cables in an open cable socket. Electrical installation on wall mounting.

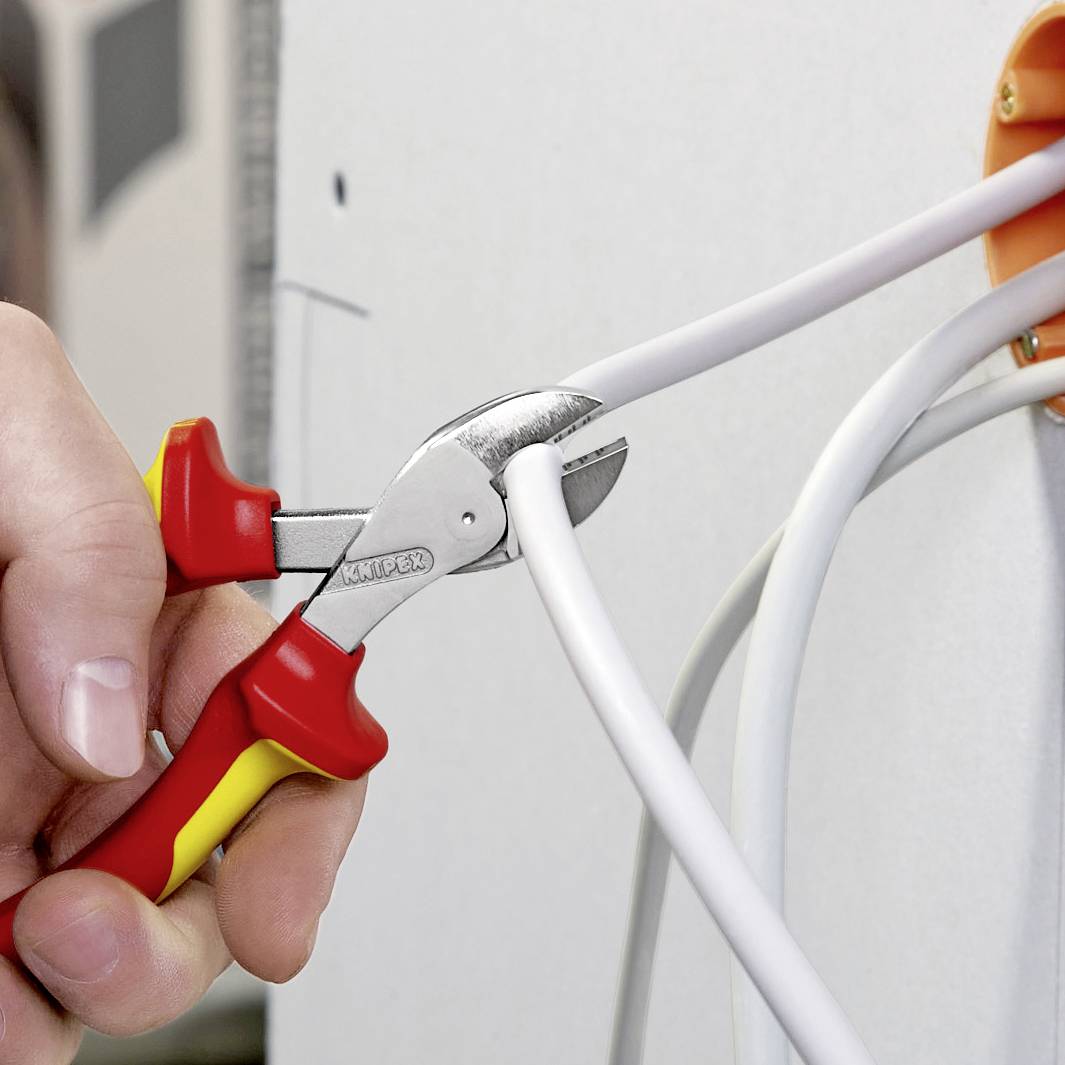

A hand is holding a red and yellow cable cutting tool, which is cutting through a white cable.

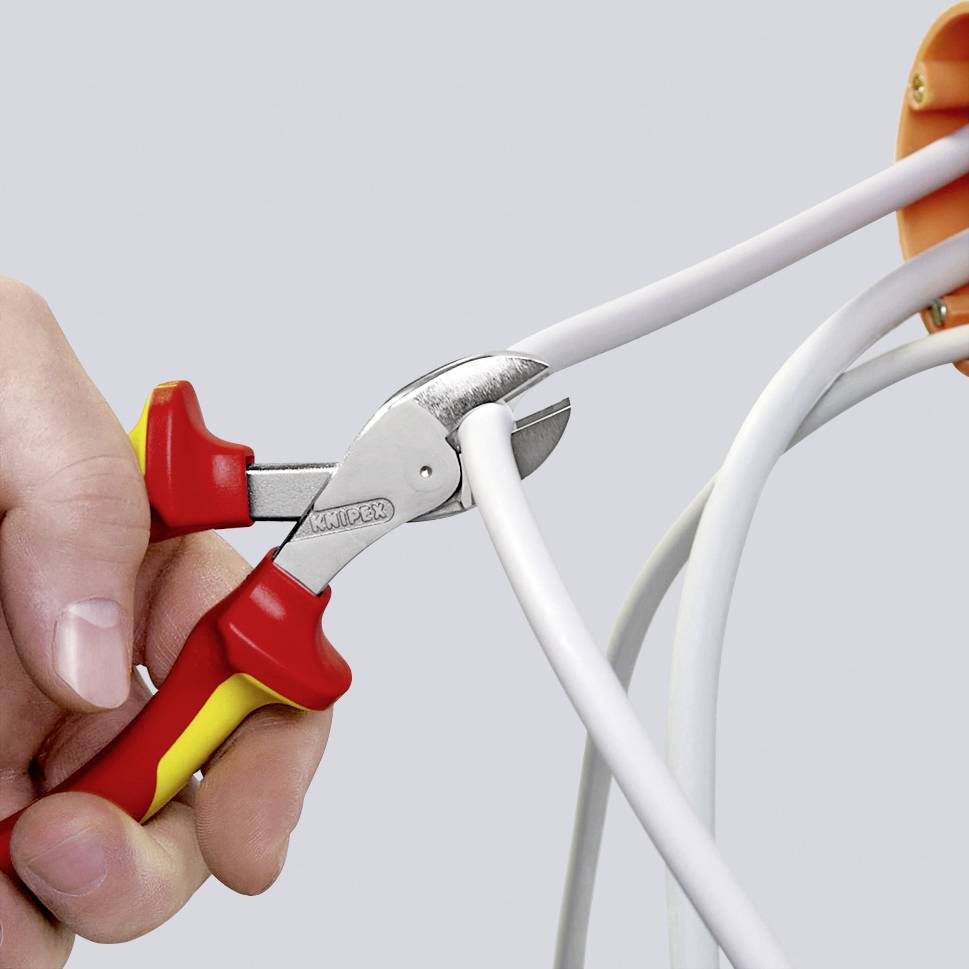

A hand holds a red pair of pliers and cuts a white cable emerging from an orange socket.

Side cutters with red and yellow handles for work up to 1000V insulated, manufactured in Germany.

A red and yellow electrical wire stripping pliers with an insulated handle, suitable for up to 1000V, with the imprint 'cap.Piano Ø 2.2 mm'.

A red wire cutters cutting through a black cable tie. The pliers are being held by a hand.

1/12

Fast track dispatch on Wed, 23 Sep

11 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 36.13 / piece)

€ 36.13

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

X-cut compact side cutting pliers, KNIPEX 73 06 160

Compact and 25% lighter. Powerful and precise
Precise Cuts finest wires as well as multi-strand cables and hard piano wire
Box joint: highest stability combined with low weight
Doubly supported joint axis for heavy-duty, continuous use
High cutting power with low application of force through optimum matching of cutting angle and transmission ratio

Technical specifications

Product type: Side cutter

Manufacturer part #: 73 06 160

Range of use: VDE

Length: 160 mm

Material: Chromium-vanadium steel

Material properties: tempered
chrome plated

Wire hardness (max.) soft wire: 4.8 mm

Wire hardness (max.) medium wire: 3.8 mm

Wire hardness (max.) hard wire: 2.7 mm

Wire hardness piano wire (max.): 2.2 mm

DIN standard: DIN EN 60900
DIN ISO 5749

Width: 175 mm

Height: 30 mm

Weight: 175 g

Features: non-flush type

EN standard: EN 60900

Type: Chrome-plated pliers, insulated grips with multi-component sheaths, VDE-certified.

Type: 73 06 160

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 816411 Knipex X-Cut 73 06 160 VDE Side cutter non-flush type 160 mm

Description

Cuts finest wires as well as multi-strand cables and hard piano wire. 20 % less effort required in comparison to power side cutting pliers of the same length. Doubly supported joint axis.

Features

Box joint: highest stability combined with low weight
Doubly supported joint axis for heavy-duty, continuous use
High cutting power with low application of force through optimum combination of cutting edge angle and transmission ratio with laterally offset fulcrum
Large opening angle for thicker cables
Precise cutting even for fine CU wires
Compact, lightweight design
Can be used universally in mounting, maintenance and production
Chrome vanadium high-performance steel, forged, oil-hardened.
