KS Tools 516.5156 516.5156 Torque wrench Calibrated to (ISO standards) Forward/reverse ratchet 1/2" (12.5 mm) 60 - 340 N
EAN:
Part number:
Item no:
Number
Total (€ 251.26 / piece)
€ 251.26
plus VAT.
14-day return policy included
Technical specifications
- Product type
Torque wrench
- Features
Forward/reverse ratchet
- Downforce
1/2" (12.5 mm)
- Torque (min.)
60 Nm
- Torque (max.)
340 Nm
- Trigger accuracy
3 %
- Graduation
2.0 Nm

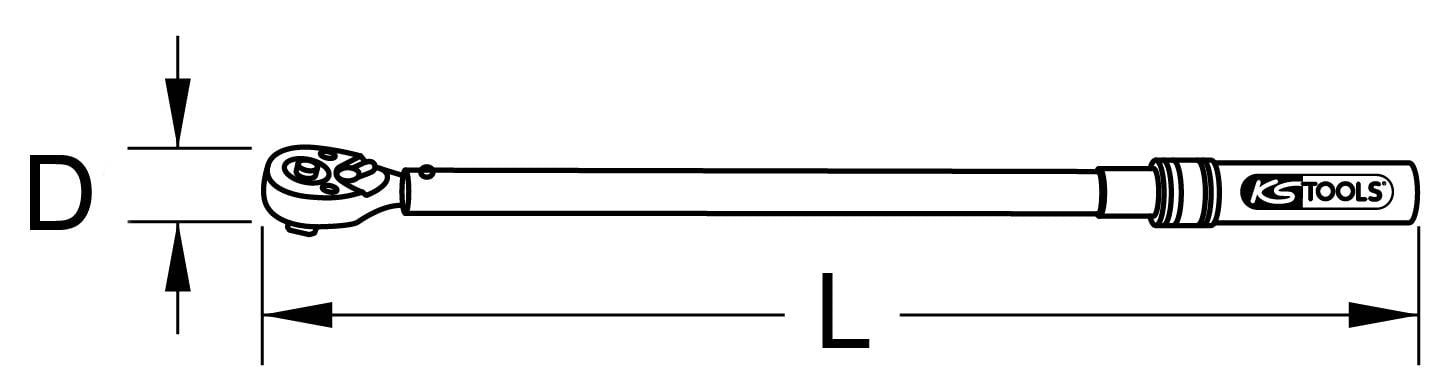

- Length
610 mm
- DIN standard
DIN 3120
DIN ISO 1174
- Weight
1800 g
- Height
32.4 mm
ISO standards
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2686824 KS Tools 516.5156 516.5156 Torque wrench Calibrated to (ISO standards) Forward/reverse ratchet 1/2" (12.5 mm) 60 - 340 N
Description

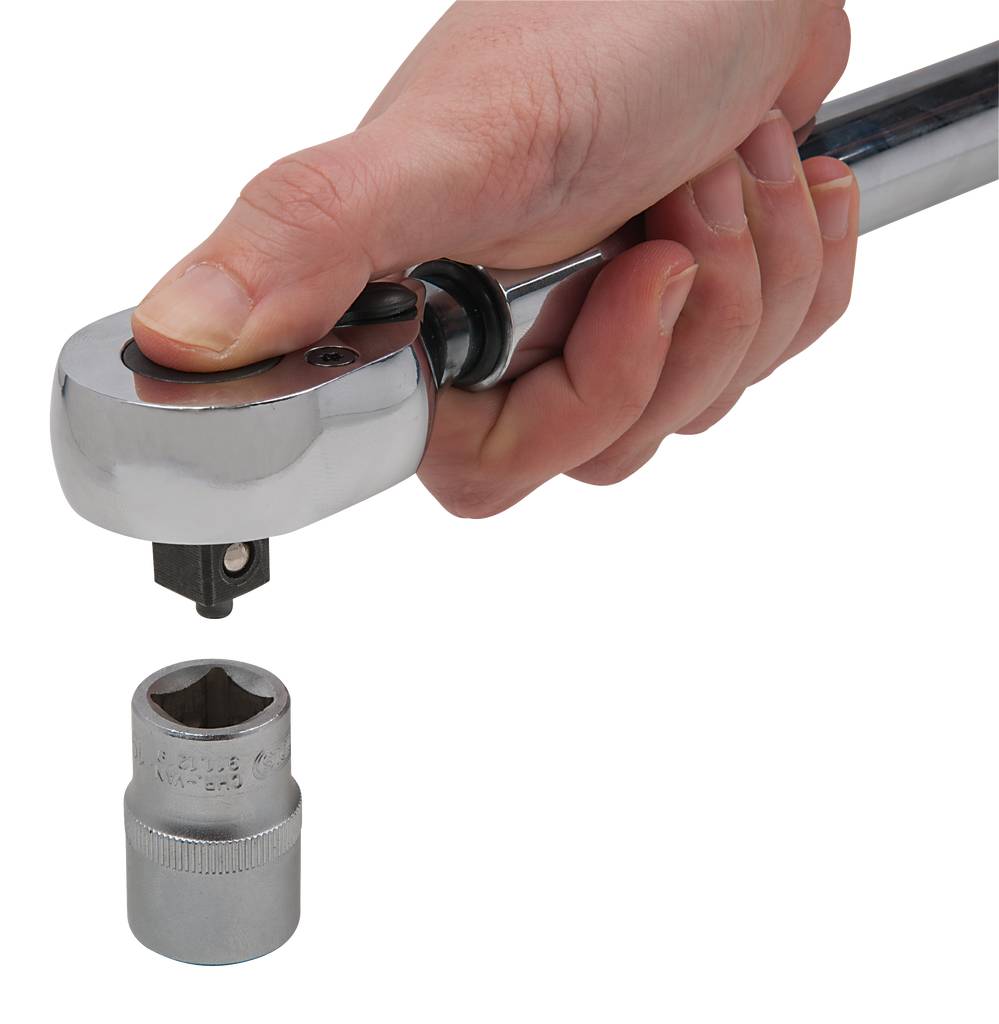

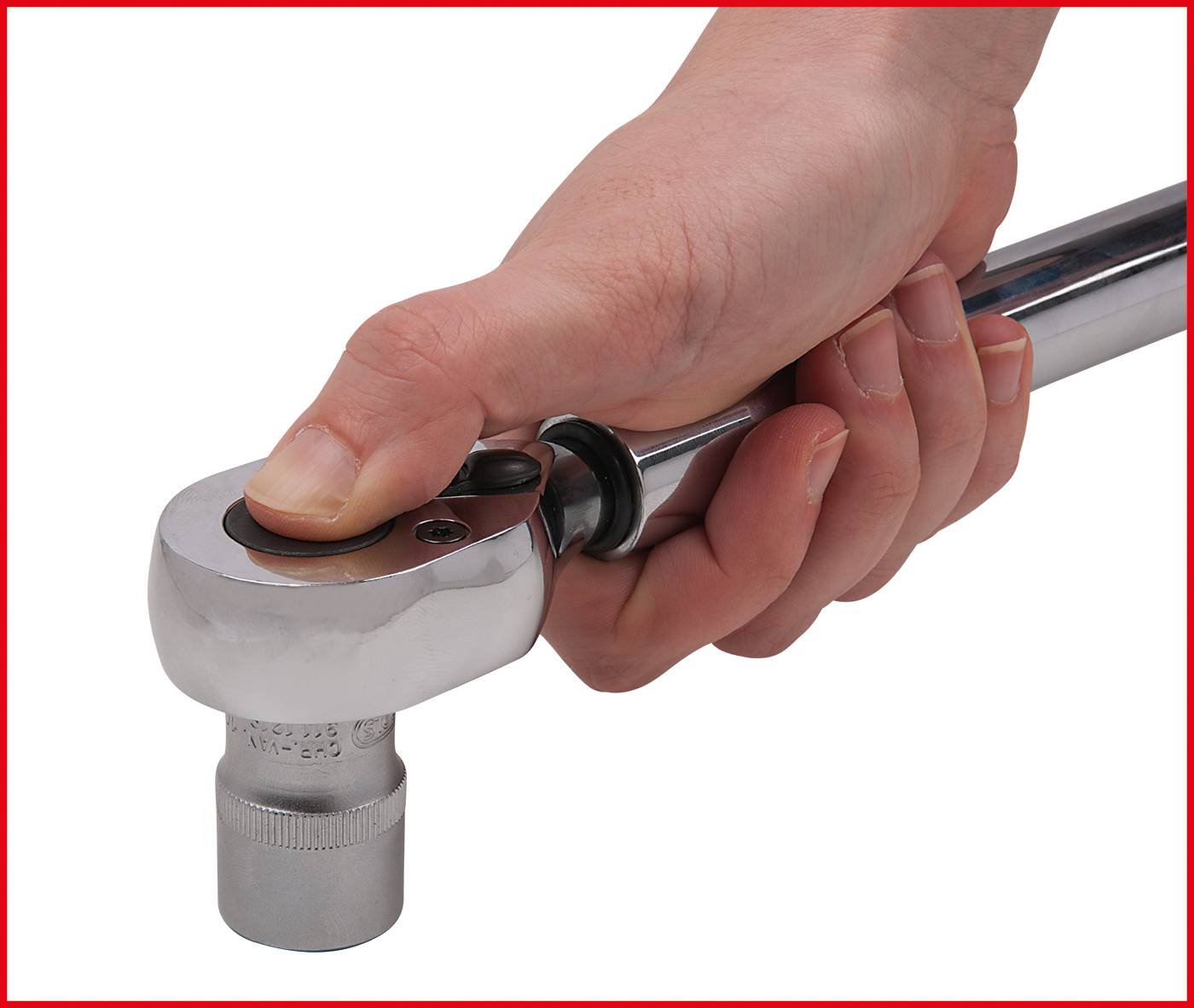

Trigger accuracy: ±3% tolerance of the set scale value and betterAccurate and precise with at least 5,000 load changesFor use in almost all industrial production areasFor controlled right and left-hand pullDouble scale in Nm and lbf-ft or lbf-in divisionIncluding finely divisible Nm and lbf-ft or lbf-in micrometer scale for a fine and precise adjustmentClearly audible and tactile torque triggeringWith push-button quick release function on the ratchet headThe torque is set securely by turning the handleSecure locking possibility at handleLong life and high service lifeHighest precision and reliability, even in heavy continuous useSquare drive according to DIN 3120 - ISO 1174 with ball lockingIndividual serial number for clear product identificationIncludes calibration declaration of conformity to DIN EN ISO 6789:2017(E) – traceable to national normal
