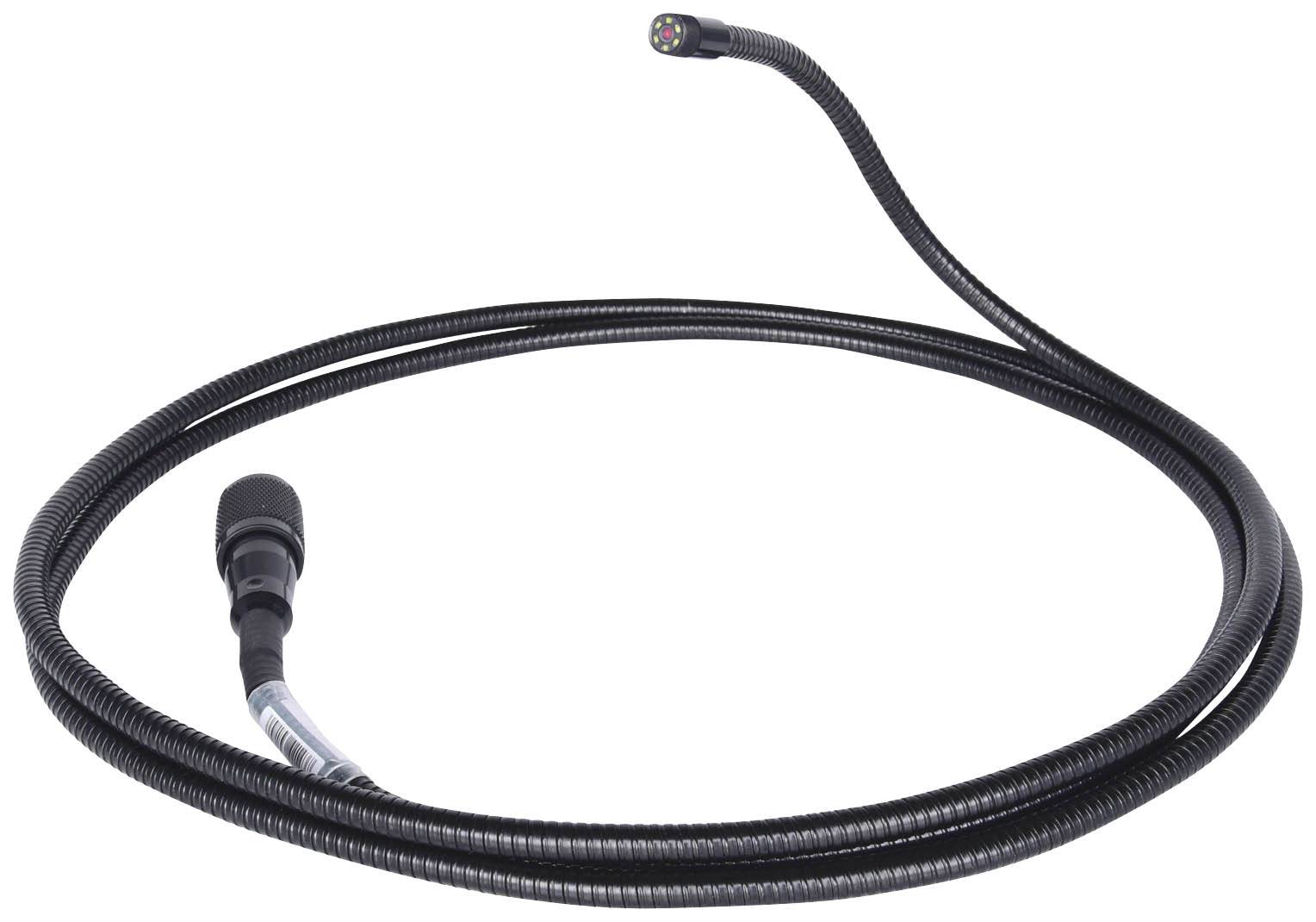

KS Tools 5507852 Endoscope probe Probe diameter 8.5 mm 2 m
EAN:
Part number:
Item no:
Number
Total (€ 244.99 / piece)
€ 244.99
incl. VAT
Only 1 Piece(s) available
Highlights & Details
UltimaVision Master camera probe, 0° semi-rigid, Ø8,5mm, 2m
Technical specifications
- Weight 140 gCamera resolution: 320 (H) x 240 (V) = 76,800 pixels Camera protection: Prefix made from scratch-resistant sapphire crystal Opening angle: Horizontal 46° - vertical 34° - diagonal 56° Camera protection 2: Stainless steel camera sleeve Light source 6 dimmable white mini-LED Design: Semi-rigid Angle: 0° (angle)Working temperature: 0°C to +50°C. AV-magnification: Up to 10" via cinch Length in m: 2 mResistance2: Oil and petrol resistant probe Resistance: Waterproof up to max. 1m, Brightness 0 ~ 420 LUX/4 cm Focused depth of field:1 cm - 6 cm Bending radius: Min. 30 mm Head-Ø in mm: 8.5 mmLens type: Aspherical Resolution reflection 1: View direction 90° - opening angle 36° IP 67 protection
- Probe length
2 m
- Product type
Endoscope probe
- Max. bend radius
30 mm
- Probe diameter
8.5 mm
- Field of view
56°
- Min. focusing distance
10 mm
- Dim
(Ø x L) 8.5 mm x 2 m
- Weight
140 g
- Endoscope features
LED lit
- Length
2 m
- (Ø)
8.5 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2700813 KS Tools 5507852 Endoscope probe Probe diameter 8.5 mm 2 m
Description
6 dimmable mini-LED-lampsBending radius: max. 30 mmCan be connected to all UltimaVision Master video scopes
